Zebra Mobile Computer
Zebra MC3400 / MC3450 手提終端機
- MC3400 適合 Wi-Fi 6E 倉庫及室內 Android 掃描流程。
- MC3450 加入 5G / LTE、GPS、nano SIM 及 eSIM，適合戶外及跨場地作業。
- 支援四種掃描引擎、三種鍵盤、straight shooter / gun 形態及 MC33 系列升級評估。
產品型錄下載Categories: Zebra (Symbol), 數據採集器
Zebra Mobile Computer

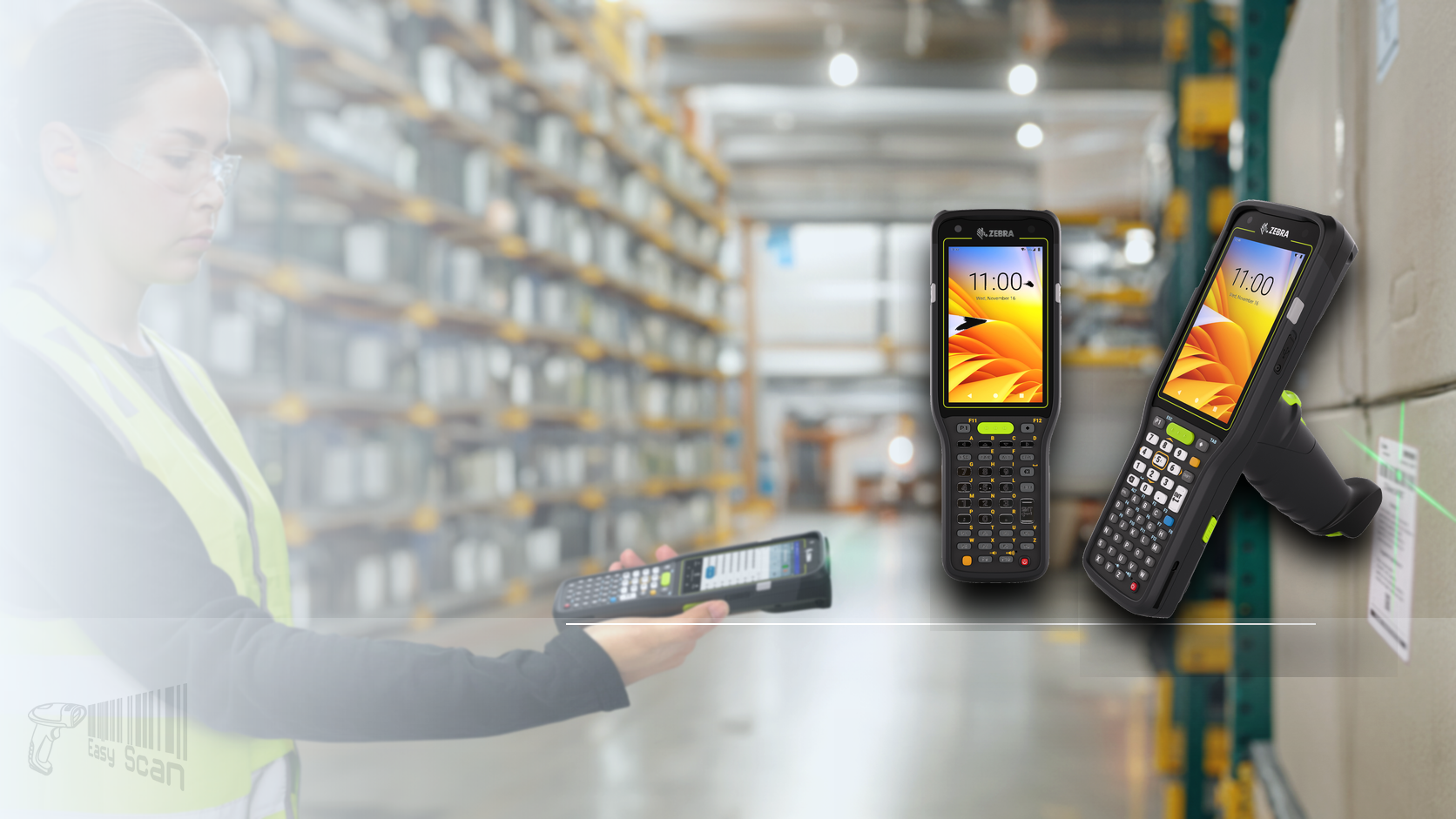

Zebra MC3400 / MC3450 手提終端機
MC3400 適合 Wi-Fi 6E 倉庫及室內流程；MC3450 加入 5G / LTE、GPS 及 SIM 配置，適合戶外、物流及跨場地作業。
Product Overview
面向倉庫、物流及生產線的 MC3000 系列新一代手提終端機
Zebra MC3400 / MC3450 是 MC3000 系列的新一代按鍵式 rugged mobile computer，適合香港倉庫收貨、執貨、上架、盤點、製造業物料追蹤、零售後倉及物流場地使用。兩款均有 straight shooter 及 gun form factor，配合 29-key、38-key 或 47-key 鍵盤，方便仍需要大量按鍵輸入的前線團隊。MC3400 主打 Wi-Fi 6E 室內連線；MC3450 則加入 5G / LTE、GPS、nano SIM 及 eSIM，適合需要戶外或跨場地連線的流程。四種掃描引擎、4 吋觸控屏、7000mAh 電池、IP65 / IP67 防護、Ivanti Velocity 及 StayLinked SmartTE 支援，令它更適合作為舊 MC33 系列升級時評估的核心選項。
Quick Fit
先按連線環境選 MC3400 或 MC3450
選 MC3400
倉庫、工場、零售後倉或辦公室內已有穩定 Wi-Fi，主要做 WMS、庫存、收貨、執貨及掃描輸入。
選 MC3450
需要 5G / LTE、GPS、戶外或跨場地連線，例如物流場、戶外貨場、送貨確認或流動作業。
查詢前準備
建議先確認 Wi-Fi / 5G 需要、掃描距離、鍵盤類型、gun 或 straight shooter、電池及 cradle 數量。
Fit Boundary
適合及不應直接套用的場景
適合
倉庫收貨、上架、執貨、盤點、製造業 WIP、貨場資產管理、零售後倉及需要按鍵輸入的 Android 流程。
需要比較
若只是櫃檯掃描，可比較手持式或展示式掃描器；如需 RFID 內置讀取，應另行比較 RFID 方案。
必須確認
5G 頻段、電訊商、掃描距離、鍵盤、舊 MC33 配件重用、TE app、MDM 及 Android 版本支援。
Key Features
MC3400 / MC3450 主要功能重點
Wi-Fi 6E 與 5G 路線
MC3400 支援 Wi-Fi 6E；MC3450 加入 5G / LTE、GPS、nano SIM 及 eSIM。
四種掃描引擎
SE4710、SE4770、SE55 及 SE58 覆蓋標準、戶內外、進階距離及延伸距離掃描。
按鍵式輸入
29-key、38-key 及 47-key 鍵盤可配合不同資料輸入流程，亦支援戴手套操作。
兩種機身形態
Straight shooter 及 gun form factor 方便按掃描頻率、拿取方式及工作站設計選型。
Rugged 防護
官方列明 IP65 / IP67、MIL-STD 810H drop 及 tumble 測試，適合前線作業環境。
TE 與 Zebra DNA
Ivanti Velocity 及 StayLinked SmartTE 預載；Zebra DNA 工具支援管理、定位及安全能力。
Applications
香港 B2B 常見應用流程
倉庫及電商履行
收貨、上架、執貨、交叉轉運、出貨、盤點及庫存控制。
製造及工場
線邊補貨、WIP、物料追蹤、品質檢查及工序記錄。

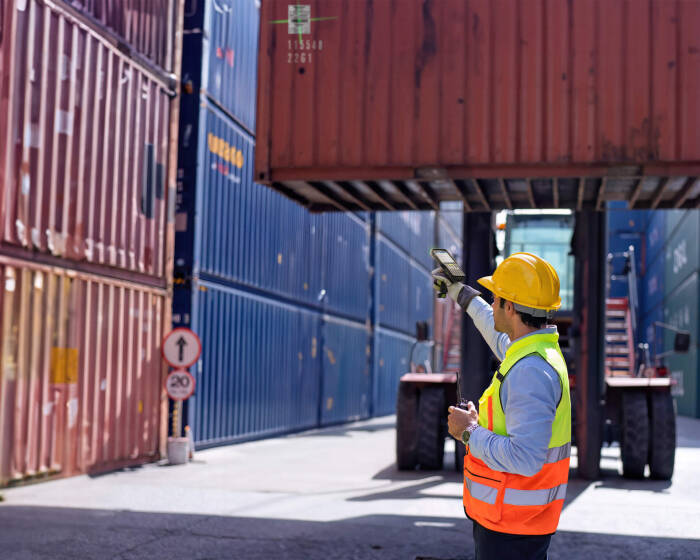

物流、港口及貨場
MC3450 可配合流動連線，支援貨櫃、貨物、場地及送貨追蹤。
零售及後倉
逆向物流、價格核對、門店收貨、網上訂單履行及後倉庫存管理。
Accessories
裝置、電池、cradle 及保護配件要一併規劃
MC3400 / MC3450 部署不只是一部手提終端機。選型時應同時檢視 7000mAh 標準或 BLE battery、single-slot / multi-slot cradle、Ethernet cradle、20-slot battery charger、USB charging cable、forklift mount、screen protector、rubber boot、holster 及 hand strap。官方資料亦列明可重用部分 MC3300 chargers and batteries；實際兼容性仍應按現有配件型號確認。
Selection Guide
四步確認 MC3400 / MC3450 配置
1
先判斷是否需要 5G / LTE、GPS 及 SIM；如只在 Wi-Fi 場地內使用，MC3400 通常較直接。
2
用掃描距離及 barcode 位置選 SE4710、SE4770、SE55 或 SE58。
3
按輸入內容選 29-key、38-key 或 47-key，再配合 straight shooter 或 gun form factor。
4
同步計算電池、cradle、保護配件、TE app、MDM、Zebra OneCare 及舊 MC33 配件重用需要。
Comparison
MC3400 與 MC3450 選型比較
| 型號 | 主要連線 | 較適合 | 查詢時要確認 |
|---|---|---|---|
| MC3400 | Wi-Fi 6E、Bluetooth、USB | 室內 Wi-Fi 倉庫、工場、門店後倉及固定場地流程。 | Wi-Fi 覆蓋、掃描引擎、鍵盤、電池及 cradle 配置。 |
| MC3450 | 5G / LTE、GPS、Wi-Fi 6E、Bluetooth、USB | 戶外、物流、貨場、跨場地及需要流動數據的流程。 | 地區頻段、電訊商、SIM / eSIM、GPS、車載或戶外配件。 |
| MC33 系列升級 | 視現有型號而定 | 希望保留相近操作手感，同時升級處理器、Android、Wi-Fi 6E / 5G 及掃描能力。 | 現有 MC33 配件型號、app、TE workflow、保養及替換計劃。 |
Buying Pitfalls
採購時常見錯配
只看型號，不分 Wi-Fi 與 5G
MC3400 與 MC3450 的核心分別是連線場景；戶外或跨場地流程通常要先評估 MC3450。
低估掃描距離
貨架面前、遠距離高架、戶外貨場及受損 barcode 對掃描引擎要求不同。
忘記電池及 cradle 數量
多班制或多裝置部署需要先計算充電位置、備用電池、multi-slot cradle 及 battery charger。
未確認舊配件兼容
官方列明部分 MC3300 chargers and batteries 可兼容，但實際仍需按現有配件 Part Number 核對。
Why Easy Scan
為何向 Easy Scan 查詢 MC3400 / MC3450
香港選型、配件及部署支援
Easy Scan 是 Zebra Premier Solution Partner，可協助香港企業按倉庫、物流、製造及零售流程比較 MC3400 / MC3450、掃描引擎、鍵盤、電池、cradle、保護配件、文件資源及支援安排，減少只按單一型號落單而導致配件或連線錯配的風險。
Specifications
Zebra MC3400 / MC3450 主要規格
以下規格按 Zebra 官方 MC3400 / MC3450 product spec sheet 撰寫；不同配置、地區及配件可能影響實際支援項目。
| Physical Characteristics | |
|---|---|
| Form factor | Straight Shooter 或 Gun |
| Dimensions | Straight Shooter: 208.5 x 73.5 x 37.1 mm；Gun: 208.5 x 73.5 x 165.3 mm |
| Weight | Straight Shooter: 442 g；Gun: 528 g |
| Display | 4 inch WVGA 800 x 480 colour display；Standard 350 nits；Expanded / Full 600 nits |
| Touch panel | Dual mode capacitive touch，支援手指、戴手套手指或 conductive stylus；Corning Gorilla Glass optically bonded |
| Power | Standard rechargeable Li-Ion 3.6V 7000mAh；optional BLE battery 3.6V 7000mAh；hot swap battery backup with temporary session persistence |
| Expansion | MicroSD up to 2 TB |
| SIM | MC3450 only: 1 nano SIM；1 eSIM |
| Keypad | Numeric 29-key、Function Numeric 38-key、Alpha Numeric 47-key |
| Ports and buttons | USB 2.0 bottom pogo connector and side USB-C；Gun trigger scan button；Straight Shooter keypad scan button and side scan keys |
| Performance and Data Capture | |
| CPU | Qualcomm 4490 octa-core, 2.4 GHz |
| Operating system | Android；supported versions should be checked against Zebra Android version support |
| Memory | Standard 4GB RAM / 64GB Flash；Expanded 6GB RAM / 64GB Flash；Full 6GB RAM / 128GB Flash |
| Security | FIPS 140-2 Validated；Common Criteria certified；Secure Boot and Verified Boot support |
| Scanning | SE4710 1D/2D、SE4770 1D/2D、SE55 Advanced Range with IntelliFocus、SE58 Extended Range with IntelliFocus |
| Camera | Front 5 MP；rear 13 MP autofocus；flash LED；Torch mode and HDR support |
| NFC | NFC ISO 14443 Type A/B、Mifare、FeliCa、ISO 15693、NFC Forum tags 2,3,4,5 |
| Connectivity | |
| Network | MC3400 / MC3450: WLAN, WPAN Bluetooth, USB 2.0；MC3450 only: WWAN 5G data only |
| Wireless LAN | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc；2×2 MU-MIMO；tri-band 2.4GHz, 5GHz, 6GHz；Wi-Fi 6E |
| Bluetooth | Class 1 and Class 2 configurable；Bluetooth v5.3；secondary BLE for beaconing within BLE battery |
| MC3450 WWAN | 3G / 4G / 5G FR1 bands vary by region and carrier；supports private networking LTE / 5G |
| GPS | MC3450 only: GPS, GLONASS, Galileo, QZSS dual-band GNSS and a-GPS support |
| User Environment | |
| Operating temperature | -20C to +50C |
| Storage temperature | -40C to +70C |
| Humidity | 5% to 95% non-condensing |
| Drop | MIL-STD 810H: 2.4 m to concrete at +23C；1.8 m to concrete across -20C to +50C |
| Tumble | 4,000 x 1 m tumbles；meets or exceeds IEC tumble specification |
| Sealing | Dual IP65 and IP67 rating with battery, per applicable IEC sealing specifications |
| ESD | +/- 15kV air discharge；+/- 8kV direct；+/- 8kV indirect |
| Software and Services | |
| Terminal emulation | Ivanti Velocity pre-installed and pre-licensed on supported models；StayLinked SmartTE pre-installed |
| Zebra DNA | Zebra DNA for Mobile Computers on Android；features may vary by model and support contract |
| Recommended services | Zebra OneCare Essential and Select maintenance plans；VisibilityIQ Foresight |
FAQ
常見查詢問題
MC3400 與 MC3450 最大分別是甚麼？
主要是連線能力。MC3400 適合 Wi-Fi 6E 室內流程；MC3450 加入 5G / LTE、GPS、nano SIM 及 eSIM，較適合戶外、物流及跨場地工作。
是否可以由 MC3300 系列升級？
可以作為升級方向評估。官方資料指出 MC3400 / MC3450 與部分 MC3300 chargers and batteries 兼容，但實際仍要按現有配件型號及部署環境確認。
應該選哪一種掃描引擎？
視乎掃描距離、barcode 大小、光線及場地而定。SE4710 適合標準掃描，SE4770 覆蓋戶內外，SE55 適合進階距離，SE58 面向更長距離掃描。
Enquiry
查詢 Zebra MC3400 / MC3450 配置
提供你的使用場地、Wi-Fi / 5G 需要、掃描距離、鍵盤偏好、裝置數量、電池及 cradle 需求，Easy Scan 可協助比較合適配置。
| 品牌 | Zebra |
|---|---|
| 產品類型 | 按鍵式 rugged Android 手提終端機 |
| 系列 | MC3000 Series |
| 型號 | MC3400 / MC3450 |
| 連線 | MC3400: Wi-Fi 6E；MC3450: 5G / LTE、GPS、nano SIM 及 eSIM |
| 掃描引擎選項 | SE4710、SE4770、SE55 或 SE58 |
| 顯示屏 | 4 吋觸控屏 |
| 電池 | 7000 mAh 標準電池方向 |
| 鍵盤選項 | 29-key、38-key 及 47-key 方向 |
| 機身形態 | Straight shooter 及 gun form factor |
| 適合應用 | 倉庫、物流、製造、零售後倉、戶外場地及跨場地數據採集 |
Part Number
以下配置供選型參考；實際可供應型號會受地區、配置及 Easy Scan 可提供範圍影響。
MC3400 Wi-Fi 6E configurations
| Part Number | Description |
|---|---|
| MC3401-0G1D42SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4710 Imager, 4GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1D43SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4710 Imager, 4GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1J52SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1J53SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1J54SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1K42SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE55 Imager, 4GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1K43SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE55 Imager, 4GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1M52SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1M53SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1M54SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1P62SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1P63SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1P64SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1R62SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1R63SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0G1R64SS-A6 | MC34, LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1D42SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4710 Imager, 4GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1D43SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4710 Imager, 4GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1J52SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1J53SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1J54SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1K42SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE55 Imager, 4GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1K43SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE55 Imager, 4GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1M52SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1M53SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1M54SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1P62SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1P63SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1P64SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1R62SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1R63SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC3401-0S1R64SS-A6 | MC34, LAN, WIFI 6E, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
MC3450 5G / LTE configurations
| Part Number | Description |
|---|---|
| MC345B-3G1J52SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1J53SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1J54SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1M52SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1M53SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1M54SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1P62SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1P63SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1P64SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1R62SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1R63SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3G1R64SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Gun, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1J52SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1J53SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1J54SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1M52SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1M53SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1M54SB-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh BLE Enabled Battery, Rest of World |
| MC345B-3S1M54SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1P62SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1P63SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1P64SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE4770 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1R62SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 29 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1R63SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World |
| MC345B-3S1R64SS-A6 | MC34, WAN – Data Only, 5G / LTE, GPS, LAN, WIFI 6E, One Nano SIM, One eSIM, Straight Shooter, Bluetooth, NFC, 4.0 Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 47 Key, 7000mAh Standard Battery, Rest of World |
配件及服務
配件應按機身形態、電池策略、充電位置、車載安裝及保護需要一併確認。
Cradles, chargers and power
| Part Number | Description |
|---|---|
| ADP-MC33-CRDCUP-01 | MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 Adapter charge-only cradle cup for MC32x legacy cradles. The adapter can be installed on any single or multi-slot MC32x cradle. |
| CBL-MC33-USBCHG-01 | MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 USB and charging cable offers fast charging when used with an MC33x/MC34x battery and wall adapter. Additionally, it enables USB communication with the device when connected to a PC. |
| CRD-MC33-2SUCHG-01 | 1-slot charging with USB cradle for a MC3300/MC3300x/MC3300ax; MC3400/MC3450 device and its battery. Sold separately: Power Supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01), micro-USB cable (25-124330-01R), country-specific AC cable. |
| CRD-MC33-4SC4BC-01 | Four-slot charge-only cradle for MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 devices and their four spare batteries. Sold separately: Power Supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and country-specific AC line cord. |
| CRD-MC33-4SE4BC-01 | Four-slot charging with Ethernet cradle for MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 devices and their four spare batteries. Sold separately: Power Supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and country-specific AC cable. |
| CRD-MC33-5SCHG-01 | Five-slot charge-only cradle for MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 devices. Sold separately: Power Supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and country-specific AC line cord. |
| CRD-MC33-5SETH-01 | Five-slot charge with Ethernet cradle for MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 devices. Sold separately: Power Supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and country-specific AC line cord. |
| KT-CRD-MC33-2SUCHG-01 | 1-slot charging with USB cradle kit for MC3300/MC3300x/MC3300ax; MC3400/MC3450 device and its battery. Includes: PS (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01). Sold separately: Micro-USB cable (25-124330-01R), country-specific AC cable. |
| SAC-MC33-20SCHG-01 | MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 20-slot battery charger. Sold separately: Power Supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and country-specific AC line cord. |
| SAC-MC33-4SCHG-01 | MC3300 / MC3300x / MC3300ax; MC3400 / MC3450 Four-slot battery charger. Sold separately: Power Supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01), and country-specific AC line cord. |
Protection, carry and handling
| Part Number | Description |
|---|---|
| MISC-MC34-SCRN-01 | Set of five tempered glass screen protectors for MC3400 / MC3450 devices. Includes two alcohol wipes, one cleaning cloth and installation instructions. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-MC3021212-01R | Fabric holster for MC3300x / MC3300ax; MC3400 / MC3450 devices with gun configurations. Sold separately: shoulder strap (58-40000-007R) and Belt (11-08062-02R). Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-MC33-HDSTPG-01 | Hand strap for MC3300x / MC3300ax; MC3400 / MC3450 devices with gun configurations. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-MC34-HDSTPB-01 | MC34XX Accessory, Hand Strap, For Straight Shooter Terminal Only |
| SG-MC34-RBTG-01 | Rubber boot for MC3400 / MC3450 devices with gun configurations. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-MC34-RBTS-01 | MC34XX Accessory, Rubber Boot, For Straight Shooter Terminal Only, Black |
| SG-MC34-RDHLST-01 | MC34XX Accessory, Rigid Holster, For Straight Shooter Terminal Only |
| SG-MC3X-SHLSTB-01 | Fabric holster for MC3300x / MC3300ax; MC3400 / MC3450 devices with straight shooter and rotating head. Includes: shoulder strap (58-40000-007R) and a belt clip. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
Mounting, cable and adapter
| Part Number | Description |
|---|---|
| MNT-MC33-FLCH-01 | Un-powered forklift mount that installs the MC33x; MC3400 / MC3450 device on a roll bar or square surface of a forklift. Sold separately: RAM double socket arm (MNT-RAM-B201U), and RAM forklift clamp with 1-inch ball (MNT-RAM-B247U25). |
資源下載
證書
Easy Scan 是 Zebra Premier Solution Partner，可協助香港企業就 MC3400 / MC3450 選型、配件、文件及部署支援作出較清晰的採購判斷。
影片
了解 MC3400 / MC3450 在倉庫、生產力、MC3300 升級及 5G 流動作業上的定位。
2:39Zebra's latest MC3400 and MC3450 series. The ultimate upgrade from the trusted MC3300 | Zebra介紹 MC3400 / MC3450 作為 MC3300 升級路線，適合倉庫、物流及流動作業評估。
2:38Redefine Warehouse Productivity with the New MC3400 and 5G-Enabled MC3450 | Zebra說明 MC3400 與 5G MC3450 如何支援倉庫生產力、流動連線及現場工作流程。
1:48Zebra: MC3300 Mobile Computer OverviewMC3300 系列概覽，有助比較 MC3400 / MC3450 升級前後的操作定位。
1:34Zebra: MC3300 Mobile Computer Accessories OverviewMC3300 配件概覽，可作 MC3400 / MC3450 配件規劃及舊配件重用討論背景。
1:29Zebra: MC3300 Mobile Computer Performance Scanning Overview展示 MC3300 掃描效能主題，可協助理解按距離、條碼狀態及場景選掃描引擎。
0:32Zebra MC3300 Mobile Computer – Multiple Form Factors展示 MC3300 多機身形態，對比 MC3400 / MC3450 straight shooter 與 gun 選型邏輯。
0:45Zebra MC3300 Mobile Computer Data Capture Feature展示 MC3300 數據擷取功能，適合作為 MC3400 / MC3450 掃描及輸入需求討論補充。
0:40Zebra MC3300 Mobile Computer – Easy OS Transition介紹 MC3300 系列作業系統轉換背景，可配合 MC3400 / MC3450 Android 升級討論。FAQ
MC3400 / MC3450 適合哪些工作流程？
適合倉庫收貨、上架、執貨、盤點、製造業物料追蹤、物流場地及零售後倉等需要按鍵輸入與掃描的流程。
MC3400 是否支援 5G？
MC3400 是 Wi-Fi 6E 路線；如需要 5G / LTE、GPS、nano SIM 或 eSIM，應評估 MC3450。
MC3450 是否一定比 MC3400 更適合？
不一定。如果流程只在穩定 Wi-Fi 覆蓋範圍內運作，MC3400 可能較直接；MC3450 較適合戶外或跨場地連線。
舊 MC3300 配件可否重用？
官方資料指出 MC3400 / MC3450 可兼容部分 MC3300 chargers and batteries；查詢時請提供現有配件型號以便核對。
如何選掃描引擎？
請按掃描距離、barcode 大小、戶內外光線及工作位置選 SE4710、SE4770、SE55 或 SE58。
查詢時應提供甚麼資料？
請提供使用場地、連線方式、掃描距離、鍵盤需求、裝置數量、班次、電池及 cradle 配置、app / MDM 需要。
Leave Your Message
