Zebra TC501 是企業級 Android 手提終端機，適合零售、倉庫、物流及外勤流程，支援 Wi-Fi 7、企業掃描、相機擷取及熱插拔電池操作。
產品型錄下載Categories: Zebra (Symbol), 數據採集器
Zebra 手提終端機

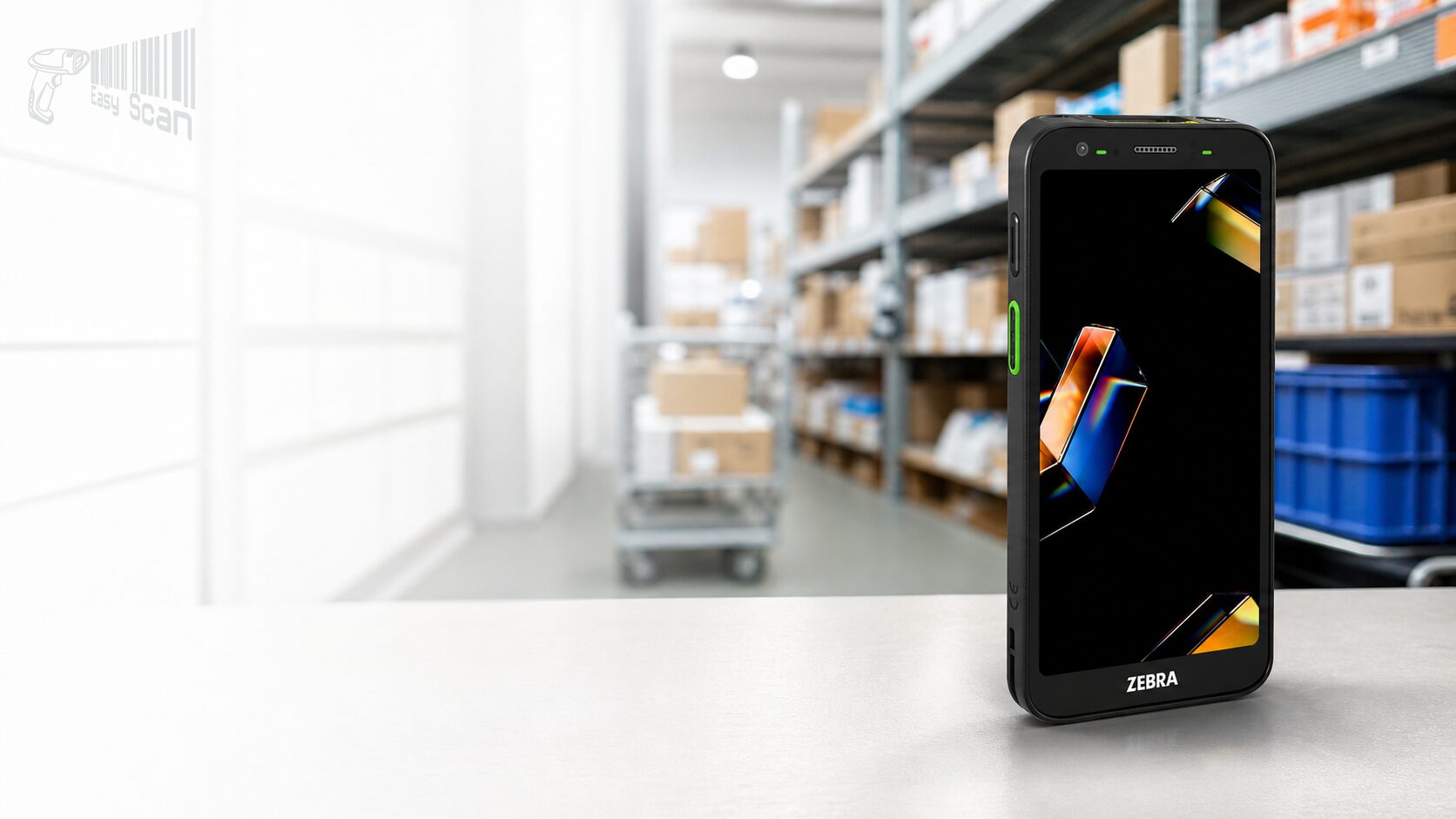

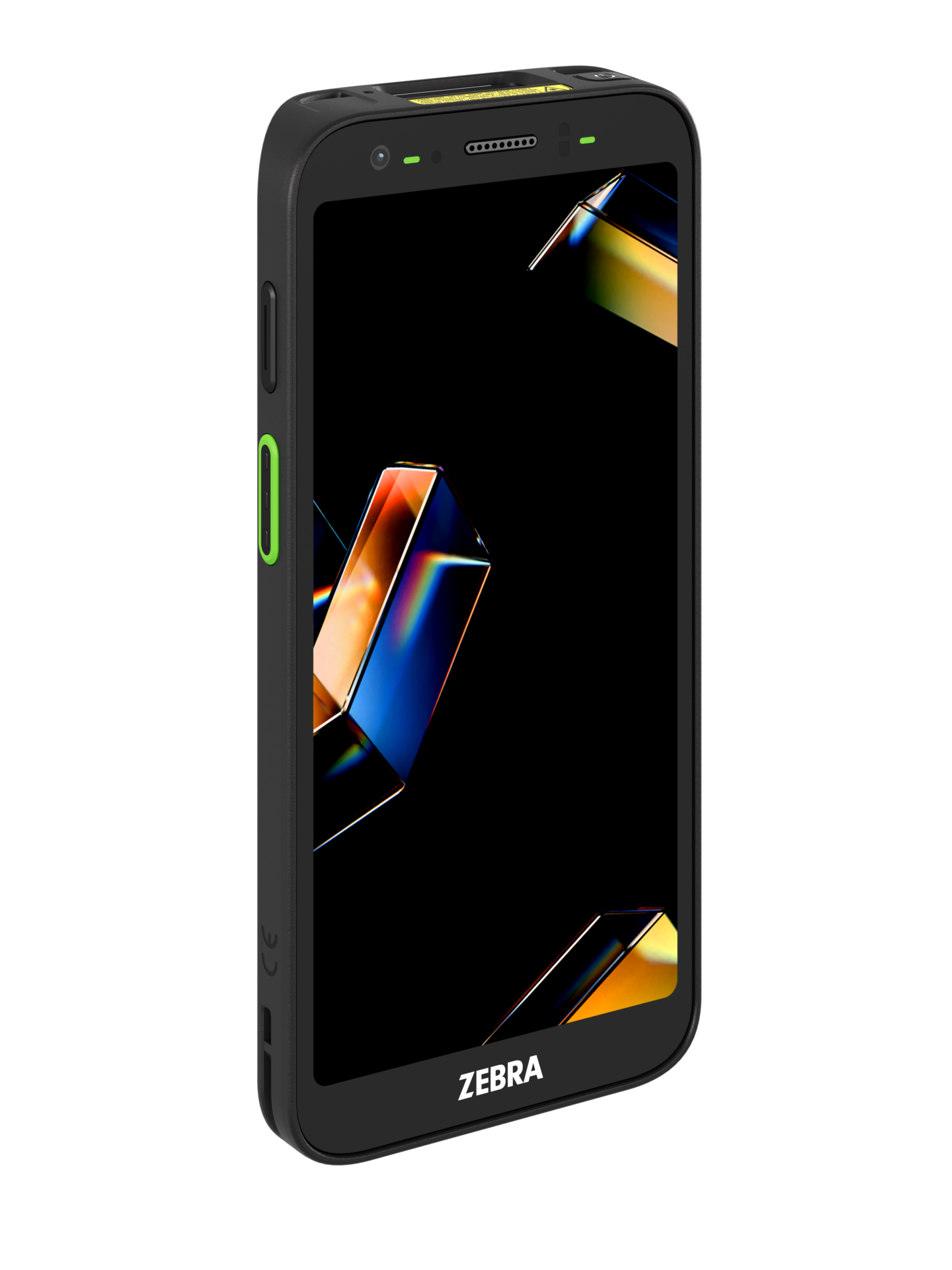

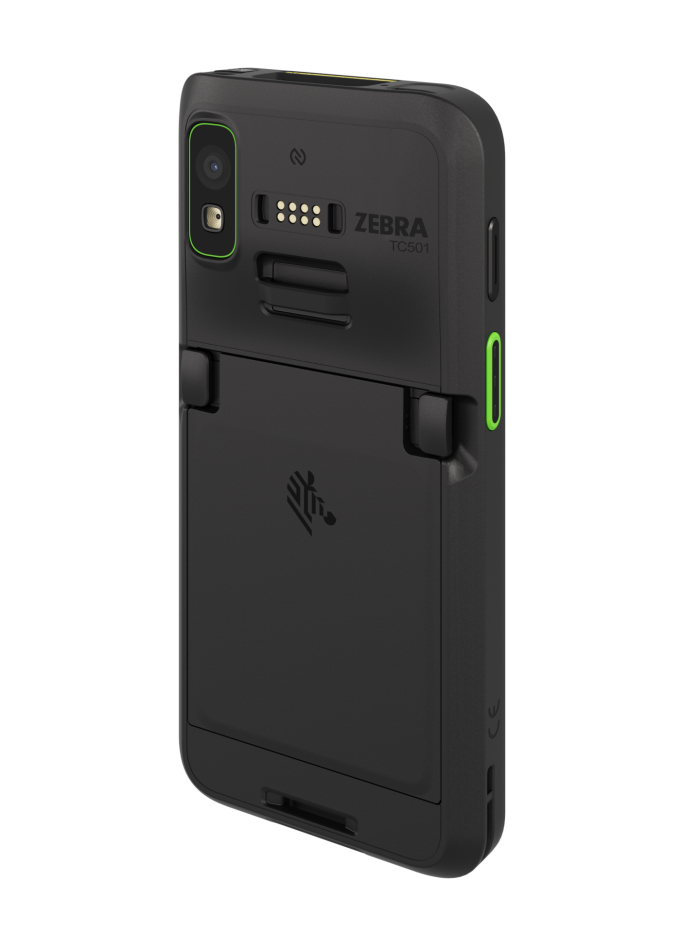

Zebra TC501 企業級 Android 手提終端機
TC501 適合需要 Wi-Fi 7、企業掃描、相機擷取、熱插拔電池及耐用手持裝置的前線工作流程。
產品定位
TC501 適合甚麼工作流程？
TC501 是 Zebra 企業級手提終端機，適合零售、倉庫、物流及外勤團隊，把掃描、相機擷取、Android 應用、Wi-Fi 連線及耐用設計集中在同一部前線裝置。採購時應一併考慮掃描引擎、記憶體、電池、充電座、保護配件、MDM 及支援流程。
快速判斷
30 秒採購 fit check
Wi-Fi 為主、需要 Android 應用、條碼掃描及相機擷取的前線團隊。
流動網絡、RFID、遠距離掃描、MDM 或特殊配件要求應先確認。
只需要固定工作站掃描，或單純以最低硬件成本作為採購標準。
使用邊界
適合與不適合的情況
適合
- 零售查價、補貨、線上訂單及客戶服務
- 倉庫收貨、上架、執貨、盤點及出貨核對
- 物流交收、條碼掃描、相片證明及路線工作
- 需要同一裝置處理掃描、相機及企業 App 的團隊
需要先確認
- 是否需要 TC501G WAN / 5G 流動網絡版本
- 是否有 RFID、遠距離掃描或特殊感測流程
- 是否需要特定 MDM、App 或安全政策
- 是否已有固定充電及備用電池流程
主要功能
採購時應核對的 TC501 重點
Wi-Fi 7
適合無線網絡為主的門店、倉庫及辦公後勤工作流程。
掃描引擎選項
可按流程核對 SR500、SR560 或 AC670 imager 配置。
效能配置
可選 8GB/128GB 或 12GB/256GB 配置，配合不同 App 及資料需求。
相機擷取
部分配置列有 50MP 後置相機、8MP 前置相機、ultra-wide 或 ToF 感測選項。
熱插拔電池
適合長工時、共用裝置池及分段充電安排。
耐用設計
Zebra 資料列有 IP68 / IP65 密封等級，適合企業前線環境。
應用場景
香港 B2B 常見用法
零售
查價、補貨、網店訂單、門店盤點及客戶服務。
倉庫
收貨、上架、執貨、庫存核對及出貨掃描。
物流
條碼掃描、交收記錄、相片證明及路線工作。
外勤服務
工單、維修記錄、資產核對及現場相片擷取。
配件規劃
手提終端機不應只買主機
TC501 專案通常需要同時規劃電池、ShareCradle、保護套、手帶、screen protector、trigger handle 及服務計劃。這些配件會直接影響前線輪班、充電、保護及掃描效率。
選型步驟
由工作流程倒推配置
確認場景
先分清門店、倉庫、物流或外勤流程，避免只用硬件規格比較。
測試掃描
用實際標籤確認掃描距離、條碼大小及標籤狀態，再選 SR500、SR560 或 AC670。
規劃電源
同時考慮電池、ShareCradle、後備電池及輪班充電安排。
鎖定配件
保護套、手帶、trigger handle、screen protector 會影響前線使用體驗。
配置比較
TC501 常見配置差異
| 配置 | 適合情況 | 採購提示 |
|---|---|---|
| 8GB RAM / 128GB ROM | 標準前線 App、掃描及日常記錄 | 適合作為一般部署起點 |
| 12GB RAM / 256GB ROM | 較多 App、較長使用週期或較多本機資料 | 適合較重應用需求 |
| SR500 / SR560 / AC670 | 取決於掃描距離、條碼大小及標籤品質 | 建議以實際條碼樣本測試 |
| Ultra-wide / ToF 選項 | 需要額外相機視角或深度感測流程 | 只在工作流程真正需要時選用 |
常見錯誤
避免只用主機價錢作決定
忽略充電與備用電池
輪班工作若沒有 cradle、後備電池及換電流程，會影響日常使用。
沒有用實際標籤測試
掃描引擎應配合現場條碼距離、大小及標籤狀態確認。
未規劃部署管理
企業 Android 裝置需要 App、政策、使用者、維修及支援流程。
Easy Scan 支援
Zebra Premier Solution Partner 的本地協助
Easy Scan 是 Zebra Premier Solution Partner，可協助香港企業確認 TC501 配置、配件、掃描測試、部署細節及支援安排。
技術資料
TC501 LAN / TC501G WAN 採購規格核對
以下規格根據 Zebra TC501 官方 spec sheet，方便採購、IT 及前線營運團隊核對裝置尺寸、螢幕、掃描、相機、無線、電池、耐用及配件部署要求。
| 裝置定位及連線 | |
|---|---|
| 產品類型 | 企業級 Android 手提終端機 |
| TC501 LAN 連線定位 | TC5010 standard configuration 為 LAN / Wi-Fi 7 版本 |
| TC501G WAN / 5G 版本 | TC501G standard configuration 包括 WAN、5G 及 Wi-Fi 7 版本；採購時需按 scanner engine、RAM / ROM、camera / sensor 及電池版本核對實際配置 |
| SIM / eSIM | 一張實體 SIM 加 Dual eSIM；WAN / 5G 需要選 TC501G 相關配置 |
| 尺寸、重量及顯示 | |
| 尺寸 | 163.15 x 77.9 x 15.5 mm（6.42 x 3.07 x 0.61 inches） |
| 重量 | 273 g（5000 mAh 電池）；303 g（7240 mAh 電池） |
| 顯示屏 | 6.0 吋 FHD+ AMOLED，2160 x 1080；600 nits typical、1000 nits High Brightness Mode、1500 nits peak；adaptive refresh rate |
| 保護玻璃 | 顯示屏採用 Gorilla Glass Victus；imager window 採用 Corning Gorilla Glass |
| 觸控 | Multi-mode capacitive touch，支援裸手、手套指尖及 passive stylus；water droplet rejection；fingerprint resistant anti-smudge coating |
| 通知及按鍵 | Audible tone、多色 LED、震動；on-screen keypad；雙 dedicated scan buttons、push-to-talk button、volume up / down buttons |
| 語音及音訊 | Stereo speakers、two microphones；支援 USB-C 或 Bluetooth headset、BLE Audio 5.3 compatible、VoNR、VoLTE、VoIP 及 PTT |
| 效能、系統及安全 | |
| CPU | Qualcomm Dragonwing Q-6690 processor；最高 2.9 GHz（視 SKU 而定） |
| 作業系統 | Android；支援 Android 版本需按 Zebra Android versions 資料核對 |
| 記憶體 / 儲存 | 8 GB LPDDR5 RAM / 128 GB UFS 3.1 Flash；或 12 GB LPDDR5 RAM / 256 GB UFS 3.1 Flash |
| 擴充儲存 | User accessible MicroSD card，最高支援 2 TB |
| 安全 | Android Strongbox with Secure Element IC；支援 Secure Boot 及 Verified Boot；spec sheet 亦列出 FIPS 140-3 Validated 與 Common Criteria certified |
| 掃描、相機、NFC 及 RFID | |
| 掃描引擎 | SR500 1D/2D Scan Engine、SR560 1D/2D Scan Engine 或 AC670 Advanced Range Color 1D/2D Scan Engine；應以實際條碼距離、大小及標籤品質測試 |
| 後置相機 | 50 MP autofocus；0.6 µm pixel、PDAF、white flash LED、Torch mode + HDR；部分配置可選 50 MP 1 µm pixel QPD AF |
| 前置相機 | 8 MP fixed focus |
| Ultra-wide 後置相機 | 13 MP autofocus；PDAF；5 cm 至 infinity |
| Time of Flight sensor | iToF 可於部分 SKU 選用 |
| NFC | NFC ISO 14443 Type A / B、Mifare、FeliCa、ISO 15693、Mifare Desfire EV1 / EV2 / EV3、NFC Forum tags 2 / 3 / 4 / 5；支援 EMVCo RR2 Contactless Payment、Host Card Emulation、VAS / Wallet、Apple ECP / VAS 及 Google Smart Tap |
| Integrated RFID | 短距離 integrated UHF RFID；最遠 2 m；每秒讀取超過 200 tags；EPC Class 1 Gen2 / EPC Gen 2 V2；EU 865-868 MHz 及 US 902-928 MHz |
| 無線及介面 | |
| WLAN | Wi-Fi 7；IEEE 802.11 be/ax/ac/n/a/g/b/mc/az/d/h/i/r/k/u/v/w；2.4 GHz、5 GHz、6 GHz tri-band；2×2 MU-MIMO；MLO、Dual Band Simultaneous、High Band Simultaneous、IPv4 / IPv6、Wi-Fi Aware |
| WLAN data rates | 2.4 GHz 最高 344 Mbps；5 GHz 最高 2882 Mbps；6 GHz 最高 5764 Mbps；實際頻道及頻寬受地區法規與認證限制 |
| WLAN fast roam | 802.11r Fast BSS Transition、PMK Caching、Cisco CCKM、OKC |
| WLAN security | WPA3 Enterprise 192-bit mode、WPA3 Enterprise / Personal、WPA / WPA2 Enterprise / Personal、Enhanced Open、WEP；WAN only 支援 EAP-SIM、EAP-AKA、EAP-AKA Prime |
| WPAN | Bluetooth V6.0 with 2×2 Tx；configurable Class 1 and 2；chipset-enabled secondary BLE beaconing support |
| WWAN / 5G | WWAN SKU 支援 5G NR Sub-6（NSA / SA）、LTE-A、Rel-17、Dual SIM / Dual Standby 及多個全球頻段；需按地區、電訊商及實際配置核對 |
| GNSS | WWAN SKU 支援 GPS、GLONASS、Galileo、Beidou、QZSS、Triple-Band GNSS、a-GPS 及 XTRA |
| 介面 | USB Type C（USB 3.1）；bottom and back I/O；back I/O 為 USB 2.0 Host Only；bottom Type C 為 USB 3.1 SuperSpeed Host and Client |
| 電池、環境及耐用 | |
| 電池 | Rechargeable Li-Ion PowerPrecision+；standard capacity 5000 mAh（19.45 Wh）；extended capacity 7240 mAh（28.16 Wh）；wireless charge battery 5000 mAh（19.45 Wh）；fast charging；Hot Swap capable |
| 工作溫度 | -20°C 至 +50°C（-4°F 至 +122°F） |
| 儲存溫度 | -40°C 至 +70°C（-40°F 至 +158°F） |
| 濕度 | 5% 至 95% non-condensing |
| 密封等級 | IP68 及 IP65，per IEC 60529 standard |
| 滾筒測試 | 2000 次 0.5 m tumbles；配 rugged boot 時 2000 次 1.0 m tumbles |
| 跌落規格 | Exceeds MIL-STD-810H；1.83 m to concrete（-20°C 至 +50°C）；2.44 m to concrete @ room temperature；配 rugged boot 時 2.13 m（-20°C 至 +50°C）及 2.74 m @ room temperature |
| ESD | +/- 15 kV air discharge；+/- 8 kV direct discharge；+/- 8 kV indirect discharge |
| 感測器、軟件及文件 | |
| 感測器 | Light sensor、3-axis gyroscope、3-axis accelerometer、magnetometer / eCompass、proximity sensor；WWAN SKU 另有 pressure sensor / barometer |
| Zebra software | Zebra DNA tools、Frontline AI Suite、Enterprise AI Camera、Identity Guardian 及 Device Guardian 等功能需按授權、支援合約及實際 SKU 確認 |
| 環境合規 | Spec sheet 列出 RoHS Directive 2011/65/EU、Amendment 2015/863、REACH SVHC 1907/2006 及 EPEAT Certified |
FAQ
TC501 採購常見問題
TC501 適合倉庫使用嗎？
如流程需要 Wi-Fi、掃描、相機擷取及企業 Android App，TC501 可以納入評估。建議用現場標籤及無線網絡環境測試。
TC501 與消費級手機有甚麼不同？
TC501 的選型重點在掃描引擎、耐用設計、配件生態、電池安排及企業部署管理，而不只是一般手機規格。
如何選 SR500、SR560 或 AC670？
應按條碼大小、距離、標籤品質及工作流程決定，並用實際樣本測試。
查詢配置
需要確認 TC501 型號、配件或部署是否適合？
把使用場景、掃描距離、輪班模式及配件需要告訴 Easy Scan，我們可協助收窄合適配置。
| 品牌 | Zebra |
|---|---|
| 產品類型 | 手提終端機 |
| 型號 | TC501 |
| 連線 | Wi-Fi 7 LAN 及 TC501G WAN / 5G 配置 |
| 作業系統 | Android |
| 顯示屏 | 6.0 吋 FHD+ AMOLED |
| 掃描引擎 | SR500、SR560 或 AC670 imager 配置 |
| 電池 | 5000 mAh 標準或 7240 mAh extended battery 配置 |
| 適合應用 | 零售、倉庫、物流及外勤流程 |
Part Number
下列型號按採購用途分組，方便先按記憶體、儲存容量、掃描引擎及是否需要 WAN / 流動網絡對照收窄選擇。
掃描引擎
SR500、SR560 及 AC670 會影響掃描距離及條碼適配。
記憶體 / 儲存
8GB/128GB 適合標準部署；12GB/256GB 適合較重應用。
WAN / 5G
如需要流動網絡，請核對 TC501G WAN / 5G 版本、區域版本及實際可供型號。
TC501 8GB / 128GB LAN 配置
| Part Number | Description |
|---|---|
| TC5010-021A1A0001-A6 | TC501, LAN, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, SR500 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC5010-021B1A0001-A6 | TC501, LAN, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, SR560 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC5010-021E1A0001-A6 | TC501, LAN, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, AC670 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
TC501 12GB / 256GB LAN 配置
| Part Number | Description |
|---|---|
| TC5010-041A2B0001-A6 | TC501, LAN, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, SR500 IMAGER, ULTRAWIDE CAMERA, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC5010-041B2B0001-A6 | TC501, LAN, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, SR560 IMAGER, ULTRAWIDE CAMERA, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC5010-041B2C00A1-A6 | TC501, LAN, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, SR560 IMAGER, TIME OF FLIGHT SENSOR, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC5010-041E2B0001-A6 | TC501, LAN, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, AC670 IMAGER, ULTRAWIDE CAMERA, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
TC501G 8GB / 128GB WAN / 5G 配置
| Part Number | Description |
|---|---|
| TC501G-321A1A1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, SR500 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-321B1A1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, SR560 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-321B1A1E01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, SR560 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, EXTENDED CAPACITY BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-321E1A1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.0GHz, 8GB RAM/128GB ROM, AC670 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-341E1B1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.9GHz, 8GB RAM/128GB ROM, AC670 IMAGER, ULTRAWIDE CAMERA, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
TC501G 12GB / 256GB WAN / 5G 配置
| Part Number | Description |
|---|---|
| TC501G-341A2A1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, SR500 IMAGER, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-341B2B1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, SR560 IMAGER, ULTRAWIDE CAMERA, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-341B2C1AA1-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, SR560 IMAGER, TIME OF FLIGHT SENSOR, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
| TC501G-341E2B1A01-A6 | TC501, WAN, 5G, WIFI 7, 6690 2.9GHz, 12GB RAM/256GB ROM, AC670 IMAGER, ULTRAWIDE CAMERA, 50MP RFC, 8MP FFC, HOT SWAP, STANDARD BATTERY, SECURE ELEMENT, ROW ONLY |
配件 / 服務
以下項目用於規劃 TC501 的充電、保護、手持方式、trigger handle 及服務安排。
保護及攜帶
| Part Number | Description |
|---|---|
| ADP-RFD40-TC5X-3EE | RFD40 Sled Adaptor for TC501 w/Rugged Boot (Requires SG-TC5AEXO-01), Bluetooth & eConnex |
| ADP-RFD40-TC5X-3ET | RFD40 Sled Adaptor for TC501, Bluetooth & eConnex |
| SG-TC5AEXO-01 | TC501 Protective Boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-TC5A7A-SCRNP-01 | TC501; TC701 Screen Protector.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-TC5A7A-SCRNP-03 | TC501; TC701 Set of Three Screen Protectors. Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5TC7-HLSTR-01 | Soft holster for TC501; TC701 / FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| 3PTY-MOB-111535 | Mobilis Pack of 500 Universal Handstrap with stylus holder for Zebra TC501 Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| SG-TC5A7A-HDSTP-01 | TC501; TC701 Hand Strap. Can attach directly to the device or a protective boot. Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-TC5A-WMADP1-01 | Arm / Wrist mount adapter for TC501 devices WITH a protective boot. Includes carrier, comfort pad (SG-NGWT-CMPD-01) and small / medium double BOA wrist strap (SG-WT5X6-WSTDS-01). Sold Separately: Protective Boot (SG-TC5AEXO-01).Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-TC5A-WMADP2-01 | Arm / Wrist mount adapter for TC501 devices WITH a protective boot. Includes carrier, comfort pad (SG-NGWT-CMPD-01) and medium / large double BOA wrist strap (SG-WT5X6-WSTDL-01). Sold Separately: Protective Boot (SG-TC5AEXO-01).Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-TC5A7A-HDSTP-03 | TC501; TC701 Set of Three Hand Straps. Can attach directly to the device or a protective boot. Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
充電及電源
| Part Number | Description |
|---|---|
| BTRY-TC5A7A-EC-01 | 7240 mAh Extended Capacity Battery for TC501 and TC701 Devices. |
| BTRY-TC5A7A-SC-01 | 5000mAh Standard capacity battery for TC501 and TC701 devices. |
| BTRY-TC5A7A-WC-01 | 5000 MAH WIRELESS BATTERY FOR TC501 AND TC701 DEVICES. |
| CRD-TC5A-1D1BE | USB Communication ShareCradle for one TC501 device WITHOUT a protective boot and one spare battery. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W power supply adapter. |
| CRD-TC5A-1D1BE-B | USB Communication ShareCradle for one TC501 device WITH a protective boot and one spare battery. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W power supply adapter. |
| CRD-TC5A-1SE | Ethernet / USB Communication ShareCradle to charge one TC501 device WITHOUT a protective boot. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W power supply adapter. |
| CRD-TC5A-1SE-B | Ethernet / USB Communication ShareCradle to charge one TC501 device WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W power supply adapter. |
| CRD-TC5A-2SC1B | Charge-Only ShareCradle for one TC501 device WITHOUT a protective boot and one spare battery. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W power supply adapter. |
| CRD-TC5A-2SC1B-B | Charge-Only ShareCradle for one TC501 device WITH a protective boot and one spare battery. Sold Separately: Protective Boot (SG-TC5AEXO-01), USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W Power Supply adapter. |
| CRD-TC5A-2SE1B | Ethernet / USB Communication ShareCradle for one TC501 device WITHOUT a protective boot and one spare battery. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W power supply adapter. |
| CRD-TC5A-2SE1B-B | Ethernet / USB Communication ShareCradle for one TC501 device WITH a protective boot and one spare battery. Sold Separately: Protective Boot (SG-TC5AEXO-01), USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W Power Supply adapter. |
| CRD-TC5A-5SC10D | Charge-Only ShareCradle to charge up to ten TC501 devices WITHOUT a protective boot. Sold Separately: Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SC10D-1 | KIT: Charge-Only ShareCradle kit to charge up to ten TC501 devices WITHOUT a protective boot. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Country-specific AC line cord. |
| CRD-TC5A-5SC10D-B | Charge-Only ShareCradle to charge up to ten TC501 devices WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SC5D5B | Charge-Only ShareCradle to charge up to five TC501 devices WITHOUT a protective boot and five spare batteries. Sold Separately: Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SC5D5B-1 | KIT: Charge-Only ShareCradle kit to charge up to five TC501 devices WITHOUT a protective boot and five spare batteries. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Country-specific AC line cord. |
| CRD-TC5A-5SC5D5B-B | Charge-Only ShareCradle to charge up to five TC501 devices WITH a protective boot and five spare batteries. Sold Separately: Protective Boot (SG-TC5AEXO-01), Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SC5DF | FAST Charging / USB Communication ShareCradle to charge up to five TC501 devices WITHOUT a protective boot. Sold Separately: Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SC5DF-1 | KIT: FAST Charging / USB Communication ShareCradle kit to charge up to five TC501 devices WITHOUT a protective boot. Includes power supply (PWR-BGA12V150W1WW). Sold Sepataely: Country-specific AC line cord. |
| CRD-TC5A-5SC5DF-B | FAST Charging / USB Communication ShareCradle to charge up to five TC501 devices WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SE5D | Ethernet / USB Communication ShareCradle to charge up to five TC501 devices WITHOUT a protective boot. Sold Separately: Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5A-5SE5D-1 | KIT: Ethernet / USB Communication ShareCradle to charge up to five TC501 devices WITHOUT a protective boot. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Country-specific AC line cord. |
| CRD-TC5A-5SE5D-B | Ethernet / USB Communication ShareCradle to charge up to five TC501 devices WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), Power supply (PWR-BGA12V150W1WW), and a country-specific AC line cord. |
| CRD-TC5AB-5SC10D-1 | KIT: Charge-Only ShareCradle to charge up to ten TC501 devices WITH a protective boot. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Protective Boot (SG-TC5AEXO-01), and a country-specific AC line cord. |
| CRD-TC5AB-5SC5D5B-1 | KIT: Charge-Only ShareCradle to charge up to five TC501 devices WITH a protective boot and five spare batteries. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Protective Boot (SG-TC5AEXO-01), and country-specific AC cable |
| CRD-TC5AB-5SC5DF-1 | KIT: FAST Charging / USB Communication ShareCradle to charge up to five TC501 devices WITH a protective boot. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Protective Boot (SG-TC5AEXO-01), and a country-specific AC line cord. |
| CRD-TC5AB-5SE5D-1 | KIT: Ethernet / USB Communication ShareCradle to charge up to five TC501 devices WITH a protective boot. Includes power supply (PWR-BGA12V150W1WW). Sold Separately: Protective Boot (SG-TC5AEXO-01), and a country-specific AC line cord. |
| CRDCUP-NGTC5AB-01 | Charge-only replacement cradle cup for a TC501 device WITH a protective boot. Includes a user-swappable cup, screw to attach cup to base and a pre-installed shim (SHIM-CRD-TC5AB). Sold Separately: Protective Boot (SG-TC5AEXO-01). |
| CRDCUP-NGTC5AB-05 | Set of five charge-only replacement cradle cup for TC501 devices WITH a protective boot. Includes a user-swappable cup, screw to attach cup to base and five pre-installed shims (SHIM-CRD-TC5AB). Sold Separately: Protective Boot (SG-TC5AEXO-01). |
| CRDCUP-NGTC5AEB-01 | Ethernet / USB Communication replacement cradle cup for a TC501 device WITH a protective boot. Includes a user-swappable cup, screw to attach to cups, and a pre-installed shim (SHIM-CRD-TC5AB). Sold Separately: Protective Boot (SG-TC5AEXO-01). |
| CRDCUP-NGTC5AEB-05 | Set of five Ethernet / USB Communication replacement cradle cup for TC501 devices WITH a protective boot. Includes a user-swappable cup, screw to attach to cups, and pre-installed shims (SHIM-CRD-TC5AB). Sold Separately: Protective Boot (SG-TC5AEXO-01). |
| CRDCUP-NGTC5AEN-01 | Ethernet / USB Communication replacement cradle cup for a TC501 device WITHOUT a protective boot. Includes a user-swappable cup, screw to attach to cups, and a pre-installed shim (SHIM-CRD-TC5A). |
| CRDCUP-NGTC5AEN-05 | Set of five Ethernet / USB Communication replacement cradle cup for TC501 devices WITHOUT a protective boot. Includes a user-swappable cup, screw to attach to cups, and five pre-installed shims (SHIM-CRD-TC5A). |
| CRDCUP-NGTC5ANB-01 | Charge-only replacement cradle cup for TC501 devices WITHOUT a protective boot. Includes a user-swappable cup, screw to attach cup to base and a pre-installed shim (SHIM-CRD-TC5A). |
| CRDCUP-NGTC5ANB-05 | Set of five charge-only replacement cradle cup for TC501 devices WITHOUT a protective boot. Includes a user-swappable cup, screw to attach cup to base and five pre-installed shims (SHIM-CRD-TC5A). |
| CRDCUP-TC5A-1DF | FAST Charging / USB Communication ShareCradle to charge one TC501 device WITHOUT a protective boot. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W Power Supply adapter. |
| CRDCUP-TC5A-1DF-B | FAST Charging / USB Communication ShareCradle to charge one TC501 device WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W Power Supply adapter. |
| CRDCUP-TC5A-2D | Charge-Only ShareCradle to charge up to two TC501 devices WITHOUT a protective boot. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W Power Supply adapter. |
| CRDCUP-TC5A-2D-B | Charge-Only ShareCradle to charge up to two TC501 devices WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), USB-C Cable (CBL-EC5X-USBC3A-01), country-specific 45W power supply adapter. |
| CRDCUP-TC5A7A-4B | Four-slot spare battery charger for TC501; TC701 spare batteries. Sold Separately: USB-C Cable (CBL-EC5X-USBC3A-01), Country-specific 45W Power Supply adapter. |
| HLD-TC5A-01 | ShareCradle Cup Holder to replace damaged or lost holders for use with TC501 devices WITHOUT a protective boot. |
| HLD-TC5AB-01 | ShareCradle Cup Holder to replace damaged or lost holders for use with TC501 devices WITH a protective boot . Sold Separately: Protective Boot (SG-TC5AEXO-01). |
Trigger 及工作流程
| Part Number | Description |
|---|---|
| TRG-TC5A-ELEC-01 | Electronic trigger handle for TC501 devices WITHOUT a protective boot. Optional wrist band (SG-PD40-WLD1-01) is also available. |
| TRG-TC5AB-ELEC-01 | Electronic trigger handle for TC501 devices WITH a protective boot. Sold Separately: Protective Boot (SG-TC5AEXO-01), Optional wrist band (SG-PD40-WLD1-01). |
Docks, Cradles and Chargers
| Part Number | Description |
|---|---|
| 3PTY-PCLIP-701468 | ProClip Pogo Pin Charging Cradle with Tilt Swivel and 6-Pin Molex Pig Tail Cable for Zebra TC501 (Bare Device) Power Supplies sold separately. Available power supplies: 3PTY-PCLIP-945081 and 3PTY-PCLIP-945082 Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-PCLIP-701469 | ProClip Pogo Pin Charging Cradle with Tilt Swivel and 6-Pin Molex Pig Tail Cable for Zebra TC501 with Rugged Boot. Power Supplies sold separately. Available power supplies: 3PTY-PCLIP-945081 and 3PTY-PCLIP-945082 Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-PCLIP-711468 | ProClip Non-Charging Cradle for Zebra TC501 (Bare Device) Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-PCLIP-711469 | ProClip Non-Charging Cradle for Zebra TC501 with Rugged Boot Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-RAM-HOL-ZE41-2U | RAM POWER ONLY SPRING-LOADED CRADLE FOR ZEBRA TC501 Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-RAM-HOL-ZE41C-2U | RAM TYPE-C POWER ONLY SPRING-LOADED CRADLE FOR ZEBRA TC501 Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-RAM-HOL-ZE41KL-C-2U | RAM TYPE-C POWER ONLY LOCKING SPRING-LOADED CRADLE FOR ZEBRA TC501Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-RAM-HOL-ZE41L-2U | RAM POWER ONLY LOCKING SPRING-LOADED CRADLE FOR ZEBRA TC501Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
服務計劃
| Part Number | Description |
|---|---|
| OPT-BTRY-EBR-TC501-1 | Optional Z1C Battery Refresh Service for Extended or BLE Battery, for TC501, 1 shipment(s) of battery, 1 year coverage, MOQ 10 |
| OPT-BTRY-EBR-TC501-2 | Optional Z1C Battery Refresh Service for Extended or BLE Battery, for TC501, 1 shipment(s) of battery, 2 year coverage, MOQ 10 |
| OPT-BTRY-EBR-TC501-3 | Optional Z1C Battery Refresh Service for Extended or BLE Battery, for TC501, 1 shipment(s) of battery, 3 year coverage, MOQ 10 |
| OPT-BTRY-EBR-TC501-4 | Optional Z1C Battery Refresh Service for Extended or BLE Battery, for TC501, 1 shipment(s) of battery, 4 year coverage, MOQ 10 |
| OPT-BTRY-EBR-TC501-5 | Optional Z1C Battery Refresh Service for Extended or BLE Battery, for TC501, 2 shipment(s) of battery, 5 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC501-1 | Optional Z1C Battery Refresh Service for Standard Battery, for TC501, 1 shipment(s) of battery, 1 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC501-2 | Optional Z1C Battery Refresh Service for Standard Battery, for TC501, 1 shipment(s) of battery, 2 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC501-3 | Optional Z1C Battery Refresh Service for Standard Battery, for TC501, 1 shipment(s) of battery, 3 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC501-4 | Optional Z1C Battery Refresh Service for Standard Battery, for TC501, 1 shipment(s) of battery, 4 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC501-5 | Optional Z1C Battery Refresh Service for Standard Battery, for TC501, 2 shipment(s) of battery, 5 year coverage, MOQ 10 |
| Z1AE-TC501X-3100 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery |
| Z1AE-TC501X-3103 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-3200 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC501X-3203 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-3300 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery |
| Z1AE-TC501X-3303 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-3400 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC501X-3403 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-3C00 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive |
| Z1AE-TC501X-3C03 | 3 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std commissioning, MOQ 10 |
| Z1AE-TC501X-4100 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery |
| Z1AE-TC501X-4103 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-4200 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC501X-4203 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-4300 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery |
| Z1AE-TC501X-4303 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-4400 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC501X-4403 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-4C00 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive |
| Z1AE-TC501X-4C03 | 4 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std commissioning, MOQ 10 |
| Z1AE-TC501X-5100 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery |
| Z1AE-TC501X-5103 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-5200 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC501X-5203 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-5300 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery |
| Z1AE-TC501X-5303 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-5400 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC501X-5403 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1AE-TC501X-5C00 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive |
| Z1AE-TC501X-5C03 | 5 yr Z1C Essential TC501, 3 day TAT, purchased in 30 days, comprehensive, std commissioning, MOQ 10 |
| Z1AS-TC501X-3103 | 3 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-3203 | 3 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-3303 | 3 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-3403 | 3 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-3C03 | 3 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-4103 | 4 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-4203 | 4 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-4303 | 4 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-4403 | 4 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-4C03 | 4 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-5103 | 5 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-5203 | 5 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-5303 | 5 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-5403 | 5 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1AS-TC501X-5C03 | 5 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std commissioning (MOQ 10 if enabled) |
| Z1BE-TC501X-1C00 | 1 yr Z1C Essential TC501, 3 day TAT, purchased after 30 days, comprehensive |
| Z1BE-TC501X-1C03 | 1 yr Z1C Essential TC501, 3 day TAT, purchased after 30 days, comprehensive, std commissioning, MOQ 10 |
| Z1BE-TC501X-3C00 | 3 yr Z1C Essential TC501, 3 day TAT, purchased after 30 days, comprehensive |
| Z1BE-TC501X-3C03 | 3 yr Z1C Essential TC501, 3 day TAT, purchased after 30 days, comprehensive, std commissioning, MOQ 10 |
| Z1BS-TC501X-1C03 | 1 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased after 30 days, comprehensive, std commissioning (MOQ 10 if enabled) |
| Z1BS-TC501X-3C03 | 3 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased after 30 days, comprehensive, std commissioning (MOQ 10 if enabled) |
| Z1RE-TC501X-1100 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for std battery |
| Z1RE-TC501X-1103 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for std battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-1200 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery |
| Z1RE-TC501X-1203 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-1300 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for std battery |
| Z1RE-TC501X-1303 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for std battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-1400 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery |
| Z1RE-TC501X-1403 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-1C00 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive |
| Z1RE-TC501X-1C03 | 1 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std commissioning, MOQ 10 |
| Z1RE-TC501X-2100 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for std battery |
| Z1RE-TC501X-2103 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for std battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-2200 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery |
| Z1RE-TC501X-2203 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-2300 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for std battery |
| Z1RE-TC501X-2303 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for std battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-2400 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery |
| Z1RE-TC501X-2403 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 10 |
| Z1RE-TC501X-2C00 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive |
| Z1RE-TC501X-2C03 | 2 yr Z1C Essential TC501, 3 day TAT, Renewal, comprehensive, std commissioning, MOQ 10 |
| Z1RS-TC501X-1103 | 1 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-1203 | 1 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-1303 | 1 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-1403 | 1 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-1C03 | 1 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-2103 | 2 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-2203 | 2 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-2303 | 2 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-2403 | 2 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 10 if enabled) |
| Z1RS-TC501X-2C03 | 2 yr Z1C Select TC501, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 10 if enabled) |
| ZJAE-TC501X-3100 | Z1C/VIQ Package. Z1C: 3 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery. VIQ: VisibilityIQ IOT, 3 yr term |
| ZJAE-TC501X-3200 | Z1C/VIQ Package. Z1C: 3 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery. VIQ: VisibilityIQ IOT, 3 yr term |
| ZJAE-TC501X-3300 | Z1C/VIQ Package. Z1C: 3 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery. VIQ: VisibilityIQ IOT, 3 yr term |
| ZJAE-TC501X-3400 | Z1C/VIQ Package. Z1C: 3 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery. VIQ: VisibilityIQ IOT, 3 yr term |
| ZJAE-TC501X-3C00 | Z1C/VIQ Package. Z1C: 3 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive. VIQ: VisibilityIQ IOT, 3 yr term |
| ZJAE-TC501X-4C00 | Z1C/VIQ Package. Z1C: 4 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive. VIQ: VisibilityIQ IOT, 4 yr term |
| ZJAE-TC501X-5100 | Z1C/VIQ Package. Z1C: 5 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery. VIQ: VisibilityIQ IOT, 5 yr term |
| ZJAE-TC501X-5200 | Z1C/VIQ Package. Z1C: 5 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery. VIQ: VisibilityIQ IOT, 5 yr term |
| ZJAE-TC501X-5300 | Z1C/VIQ Package. Z1C: 5 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery. VIQ: VisibilityIQ IOT, 5 yr term |
| ZJAE-TC501X-5400 | Z1C/VIQ Package. Z1C: 5 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery. VIQ: VisibilityIQ IOT, 5 yr term |
| ZJAE-TC501X-5C00 | Z1C/VIQ Package. Z1C: 5 yr Z1C Essential TC501X, 3 day TAT, purchased in 30 days, comprehensive. VIQ: VisibilityIQ IOT, 5 yr term |
| ZJAS-TC501X-3C03 | Z1C/VIQ Package. Z1C: 3 yr Z1C Select TC501X, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 3 yr term |
| ZJAS-TC501X-5C03 | Z1C/VIQ Package. Z1C: 5 yr Z1C Select TC501X, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 5 yr term |
| ZJRE-TC501X-1C00 | Z1C/VIQ Package. Z1C: 1 yr Z1C Essential TC501X, 3 day TAT, Renewal, comprehensive. VIQ: VisibilityIQ IOT, 1 yr term |
| ZJRE-TC501X-2C00 | Z1C/VIQ Package. Z1C: 2 yr Z1C Essential TC501X, 3 day TAT, Renewal, comprehensive. VIQ: VisibilityIQ IOT, 2 yr term |
| ZJRS-TC501X-1C03 | Z1C/VIQ Package. Z1C: 1 yr Z1C Select TC501X, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 1 yr term |
| ZJRS-TC501X-2C03 | Z1C/VIQ Package. Z1C: 2 yr Z1C Select TC501X, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 2 yr term |
資源下載
證書
Easy Scan 是 Zebra Premier Solution Partner，可協助香港企業處理 TC501 選型、配件、部署及支援查詢。
影片
以下影片涵蓋 TC501 平台介紹、手帶、trigger handle、保護套、wrist mount、量度應用及 ShareCradle 設定。
VideoIntroducing the TC501 & TC701: AI-Powered Mobile Computers | Zebra了解 TC501 平台定位、前線工作流程及企業手提終端機選型方向。
VideoTC501 & TC701 Mobile Computers: Hand Strap Installation Guide | Zebra展示手帶安裝方式，適合評估門店、倉庫或外勤長時間手持使用。
VideoZebra TC501 & TC701: Trigger Handle Installation Guide | Zebra展示 trigger handle 安裝方式，適合需要大量掃描的收貨、執貨及庫存流程。
VideoProtect Your TC501 & TC701: How to Install the Rugged Boot Accessory | Zebra展示 rugged boot 配件安裝方式，方便評估保護套及前線防護需要。
VideoZebra TC501 | Wrist Mount Installation Guide | Zebra展示 wrist mount 安裝方式，適合雙手操作或穿戴式工作流程評估。
VideoMobile Dimensioning Solutions for TC501 & TC701 Devices | Zebra介紹 TC501 相關量度應用方向，適合物流及包裹處理場景參考。
VideoHow to Configure Single Slot ShareCradles for TC501 & TC701 | Zebra展示 single-slot ShareCradle 設定方式，適合規劃充電及桌面部署流程。FAQ
TC501 是否支援 Wi-Fi 7？
是。Zebra TC501 資料列有 Wi-Fi 7 配置。
TC501 是否一定有流動網絡？
不是。TC5010 為 LAN / Wi-Fi 7 配置；如需要流動網絡，應核對 TC501G WAN / 5G Part Number。
TC501 可否配 trigger handle？
可以。TC501 有 electronic trigger handle 選項，並有配合保護套與不配保護套的配置。
是否應同時規劃充電座？
應該。TC501 可配單槽、多槽、後備電池及 Ethernet / USB ShareCradle 選項。
TC501 適合輪班使用嗎？
TC501 有 hot swap 電池配置。長工時應同時規劃後備電池及充電流程。
Easy Scan 可否協助確認 Part Number？
可以。提供工作流程、掃描距離、配件需要及部署數量後，Easy Scan 可協助確認合適配置。
Leave Your Message
