Zebra TC53 / TC58 是企業級 Android 手持式數據採集器系列；TC53 適合 Wi-Fi 室內流程，TC58 適合 5G / WWAN 物流、外勤及跨場地工作。
產品型錄下載Categories: Zebra (Symbol), 數據採集器Tags: MobileComputer, TC53, TC58, WIFI6E
Zebra Mobile Computer

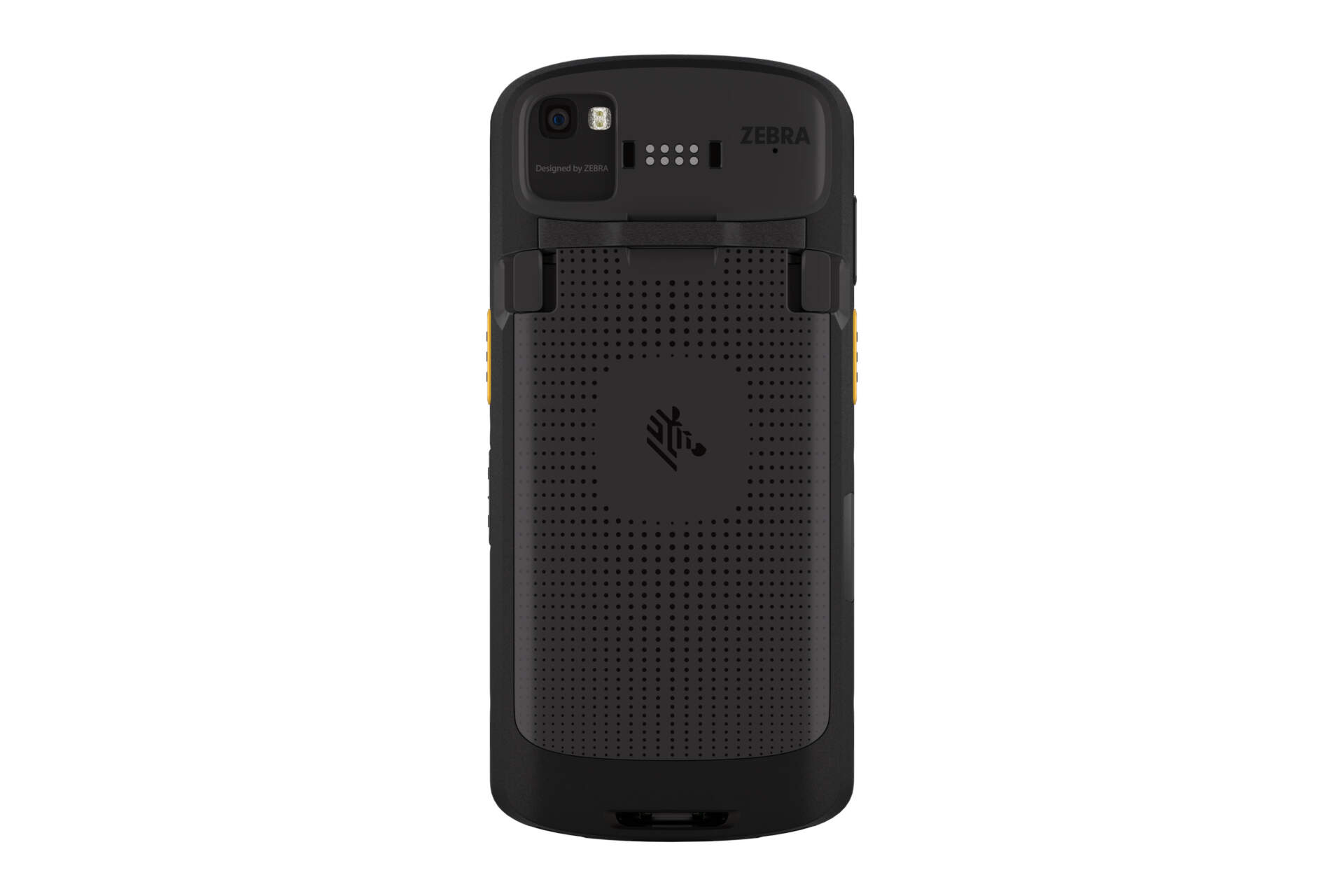

Zebra TC53 / TC58 手持式數據採集器
同一 TC5x 平台下，TC53 適合以 Wi-Fi 為主的室內流程，TC58 適合需要 5G / WWAN 的流動、外勤及跨場地流程。
Product Overview
TC53 / TC58 覆蓋室內 Wi-Fi 與 5G 流動數據採集流程
Zebra TC53 / TC58 是企業級 Android 手持式數據採集器系列，適合香港倉庫、物流、零售、資產管理及外勤團隊使用。兩者同屬 TC5x 平台方向，均支援 6 吋顯示屏、企業級 1D / 2D 掃描、可更換電池、Zebra DNA 管理工具及多種充電座與保護配件；主要分別是 TC53 以 Wi-Fi 6E 室內工作流程為主，TC58 加入 5G / WWAN 與 GNSS，較適合派送、外勤或跨地點工作。
Quick Fit
先按連線場景判斷 TC53 或 TC58
選 TC53
適合倉庫、門店、辦公室及固定 Wi-Fi 覆蓋環境，需要 Android app、掃描及可更換電池的日常流程。
選 TC58
適合需要 5G / WWAN、戶外工作、GNSS、派送確認、車隊或跨場地流動任務。
查詢前準備
提供使用地點、是否需要 5G、掃描距離、班次、電池與 cradle 數量、MDM、RFID 或 payment 配件需要。
Fit Boundary
適合場景與需要比較的方向
適合
收貨、上架、執貨、門店補貨、庫存查詢、派送、資產盤點、外勤工單及 Android 掃描流程。
可比較
如只做櫃位掃描，可比較手持式或平台式掃描器；如要內置 RFID 方向，可比較 TC53e-RFID 或其他 RFID 方案。
必須確認
Payment、RFID、車載安裝、長距離掃描、Android 版本、app / MDM 相容性及地區配置。
Key Features
TC53 / TC58 核心功能重點
Wi-Fi 或 5G 路線
TC53 覆蓋 Wi-Fi 6E 室內流程；TC58 加入 5G / WWAN 與 GNSS。
6 吋顯示屏
1080 x 2160、600 nits 及 Gorilla Glass，支援 WMS、POS、工單及派送 app。
SE4720 / SE55
按掃描距離、條碼大小及工作環境選擇一般 1D / 2D 或 Advanced Range 掃描。
可更換電池
Standard、BLE、wireless charging 及 extended battery 選項可支援多班次規劃。
耐用設計
IP68 / IP65，加上跌落及滾落規格，適合營運現場使用。
Zebra DNA
支援裝置管理、Device Tracker、Workstation Connect 及前線工具。
Applications
常見香港 B2B 工作流程
倉庫與庫存
收貨、上架、執貨、盤點、庫位及 WMS 任務。
零售門店
補貨、價錢牌、庫存查詢、後場流程及 assisted selling。
物流與派送
TC58 較適合 pickup / delivery proof、戶外連線及車隊工作。
資產與維修
工具檢查、IT 資產、巡檢、維修紀錄及工單更新。
Accessories
主機、電池、充電座及保護配件要一併規劃
TC53 / TC58 部署不只是手持終端本身。應同時檢視 standard / extended / wireless charging battery、single-slot / multi-slot cradle、vehicle cradle、protective boot、screen protector、trigger handle、RFID sled adapter、payment 配件及 Zebra OneCare 服務選項。
Selection Guide
選擇 TC53 / TC58 前的四個步驟
先分開 Wi-Fi 與 5G
確認是否需要 5G / WWAN 與 GNSS。若主要在倉庫、門店或辦公室 Wi-Fi 覆蓋範圍內使用，TC53 通常是較直接的方向。
按距離選掃描引擎
用條碼大小、掃描距離、貨架高度及光線環境判斷 SE4720 或 SE55 Advanced Range。
同步計電池與 cradle
按班次、用戶數、充電位置、車載使用及 spare battery 規劃 standard、extended 或 wireless charging battery 與 cradle。
核對軟件及配件
落單前先核對 MDM、Android 版本、RFID sled、payment、Workstation Connect、parcel dimensioning 及保護配件需要。
Comparison
TC53 與 TC58 型號比較
| 型號 | 連線 | 較適合 | 查詢重點 |
|---|---|---|---|
| TC53 | Wi-Fi 6E / Bluetooth | 倉庫、門店、辦公室及固定 Wi-Fi 覆蓋流程。 | Wi-Fi 覆蓋、掃描引擎、電池及 cradle 配置。 |
| TC58 | 5G / WWAN、Wi-Fi 6E、Bluetooth、GNSS | 物流、派送、外勤、跨場地及戶外流程。 | 地區配置、5G 需要、GNSS、車載安裝及電池策略。 |
| TC53e / TC58e | 同系列延伸型號 | 需要評估新一代延伸功能或特定配件路線時。 | [Need confirmation] 香港供應配置及功能差異。 |
Buying Pitfalls
常見採購錯配
未分清 Wi-Fi / 5G
離開 Wi-Fi 覆蓋的流程未必適合 TC53；全室內 Wi-Fi 流程亦未必需要 TC58。
只買主機
多部裝置部署要同時計 cradle、spare battery、vehicle cradle、boot、screen protector 及服務選項。
未測掃描距離
近距離貨架標籤與高架或較遠距離條碼，可能需要不同掃描引擎。
Why Easy Scan
為何向 Easy Scan 查詢 TC53 / TC58
協助核對配置及香港部署需要
Easy Scan 作為 Zebra Premier Solution Partner，可協助香港企業按倉庫、物流、零售及外勤流程，比較 TC53 / TC58 主機、掃描引擎、電池、充電座、保護配件、文件及服務選項，減少採購後才發現連線或配件不合用的風險。
Specifications
Zebra TC53 / TC58 主要規格
以下列出 TC53 / TC58 採購及部署時較常用的規格重點；實際數值及功能需按選定配置核對。
| 系列定位 | TC53 為 Wi-Fi 6E 手持式數據採集器；TC58 在同系列加入 5G / WWAN 與 GNSS 流動連線。 |
|---|---|
| 尺寸 | 6.48 in. L x 3.04 in. W x 0.66 in. H；164.8 mm L x 77.35 mm W x 16.75 mm H。 |
| 重量 | 約 10.3 oz. / 293 g，按 standard battery 配置計算。 |
| 顯示屏 | 6 吋 Full High Definition+，1080 x 2160，600 nits，Corning Gorilla Glass。 |
| 觸控面板 | Multi-mode capacitive touch，支援 bare / gloved fingertip input 或 conductive stylus；具 water droplet rejection 及 fingerprint-resistant anti-smudge coating。 |
| 掃描視窗 | Corning Gorilla Glass。 |
| 處理器 | Qualcomm 6490 octa-core，2.7 GHz。 |
| 作業系統 | Android；可支援版本、LifeGuard 更新及企業管理選項需按採購時間及配置核對。 |
| 記憶體 / 儲存 | 4GB / 64GB、8GB / 64GB、8GB / 128GB 及其他配置路線，視乎訂購型號。 |
| 擴充儲存 | User-accessible MicroSD card slot，最高支援 2 TB。 |
| 無線連線 | TC53：Wi-Fi 6E 及 Bluetooth；TC58：5G FR1、Wi-Fi 6E、Bluetooth 及 GPS / GNSS。 |
| SIM | TC58：1 nano SIM 及 1 eSIM。 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax、2×2 MU-MIMO、Wi-Fi 6E / Wi-Fi 6E Certified、Dual Band Simultaneous、IPv4 / IPv6。 |
| Bluetooth | Bluetooth Class 2，Bluetooth v5.2；配合 BLE battery 可支援 secondary Bluetooth Low Energy beaconing。 |
| GNSS | TC58 支援 GPS、GLONASS、Galileo、BeiDou、QZSS Dual-Band GNSS、a-GPS 及 XTRA；頻段與 carrier 支援按地區而定。 |
| 掃描引擎 | SE4720 1D / 2D Imager 或 SE55 Advanced Range 1D / 2D Imager，按配置而定。 |
| 相機 | 8MP front-facing camera 及 16MP rear-facing camera；個別配置可支援 OIS / ToF / parcel dimensioning 相關功能。 |
| NFC | ISO 14443 Type A / B、FeliCa、ISO 15693；支援 card emulation via host、contactless payment support、ECP1.0 / ECP2.0 polling、Apple VAS certified、NFC Forum Certified 及 Google Smart Tap Ready。 |
| 電池 | 4,680 mAh standard / BLE / wireless charging battery；7,000 mAh extended capacity battery。 |
| 電池更換模式 | Standard SKUs 支援 Warm Swap battery mode；Premium SKUs 支援 Hot Swap battery mode。 |
| 充電與電源規劃 | 支援 single-slot / multi-slot cradle、vehicle cradle、wireless charging 及多班次電池規劃。 |
| 通知 | Audible tone、multi-color LEDs 及 haptic feedback。 |
| 按鍵 | On-screen keypad / enterprise keyboard；programmable buttons 包括 dual scan buttons、push-to-talk、volume up/down 及 trigger handle trigger button。 |
| 語音與音訊 | Three microphones with noise cancellation、dual speakers、Bluetooth headset support、speaker phone 及 PTT headset support；3.5 mm audio jack 只適用於 WLAN SKUs。 |
| I/O | USB 2.0 Back I/O host only；USB 3.0 bottom Type-C Super Speed host and client。 |
| 耐用度 | IP68 / IP65；跌落、滾落及 ESD 規格需按主機、boot 及配件配置核對。 |
| 工作溫度 | -20°C to 50°C / -4°F to 122°F。 |
| 儲存溫度 | -40°C to 70°C / -40°F to 158°F；5% to 95% non-condensing humidity。 |
| 跌落規格 | 配 protective boot：multiple 6 ft. / 1.8 m drops to concrete over operating temperature；不配 boot：multiple 5 ft. / 1.5 m drops to tile over concrete，per MIL STD 810H。 |
| 滾落 / ESD | 未配 protective boot：1000 次 1.6 ft. / 0.5 m tumble at room temperature；配 boot：1000 次 3.2 ft. / 1.0 m tumble。ESD：+/-15 kV air、+/-8 kV direct、+/-8 kV indirect discharge。 |
| 感應器 | Light sensor、magnetometer / eCompass、3-axis accelerometer with MEMS Gyro、pressure sensor、proximity sensor 及 gyro；實際 availability 按型號而定。 |
| 安全功能 | Select configurations 可啟用 FIPS 140-2 cryptography。 |
| 合規 | RoHS Directive 2011/65/EU、RoHS Amendment (EU) 2015/863 及 EN IEC 63000:2018。 |
| 配件生態 | 可檢視 protective boot、screen protector、trigger handle、RFID sled adapter、payment accessory 及 vehicle-mounting 路線。 |
| 企業軟件 | 可配合 Zebra DNA、Device Tracker、Workstation Connect、MDM 及企業 Android app 部署。 |
| 採購核對 | 建議同步確認掃描距離、5G 需要、電池數量、cradle 數量、Android 版本、MDM、RFID 及 payment 需求。 |
FAQ
重點查詢問題
TC53 與 TC58 主要分別是甚麼？
主要是連線。TC53 適合 Wi-Fi 6E 室內流程；TC58 加入 5G / WWAN 與 GNSS，較適合外勤、派送或跨場地流程。
兩款是否都可掃描 1D / 2D 條碼？
可以，但要按配置確認。SE4720 較適合一般近距離掃描；如需要較遠距離或更彈性的掃描範圍，應評估 SE55。
查詢時應準備甚麼資料？
請提供使用地點、是否需要 5G、掃描距離、用戶數、班次、cradle 數量、MDM / app 需要，以及 RFID 或 payment 配件要求。
Enquiry
查詢 Zebra TC53 / TC58 配置
提供工作流程、連線要求、掃描距離、電池及充電需要，Easy Scan 可協助比較 TC53 / TC58 配置與配件。
| 品牌 | Zebra |
|---|---|
| 產品類型 | Android 手持式數據採集器 |
| 系列 | TC5x Series |
| 型號 | TC53 / TC58 |
| 連線 | TC53：Wi-Fi 6E / Bluetooth；TC58：5G / WWAN、Wi-Fi 6E、Bluetooth、GNSS |
| 掃描引擎選項 | SE4720 或 SE55 |
| 顯示屏 | 6 吋 FHD+ 顯示屏 |
| 作業系統 | Android |
| 適合應用 | 倉庫、零售、物流、資產管理及外勤流程 |
Part Number
以下型號按 TC53 Wi-Fi、TC58 5G 及套裝配置分組，方便先核對連線、掃描引擎、記憶體、電池及地區配置。
TC53 Wi-Fi 標準配置
| Part Number | Description |
|---|---|
| TC5301-0T1E1B1000-A6 | TC53, LAN, 6.0 Display, WiFi 6E, 6GB RAM/64GB ROM, SE4720 Imager, 3.5MM Headphone Jack, 8MP FFC, 16MP RFC, Warm Swap, 4680 mAh Standard Battery, GMS, ROW |
| TC5301-0T1E4B1000-A6 | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 4GB RAM/64GB ROM, SE4720 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW ONLY |
| TC5301-0T1E4B1000-IN | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 4GB RAM/64GB ROM, SE4720 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, India ONLY |
| TC5301-0T1E7B1000-A6 | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 8GB RAM/64GB ROM, SE4720 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW ONLY |
| TC5301-0T1K4B1000-A6 | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 4GB RAM/64GB ROM, SE55 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW ONLY |
| TC5301-0T1K4B1B00-A6 | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 4GB RAM/64GB ROM, SE55 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH BLE BATTERY, GMS, ROW ONLY |
| TC5301-0T1K6B1000-A6 | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 8GB RAM/128GB ROM, SE55 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW ONLY |
| TC5301-0T1K6E200A-A6 | TC53, Premium, LAN, 6.0 Display, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, 3.5MM Headphone Jack, 8MP FFC, 16MP RFC W OIS, True Hot Swap & Non-Certified Parcel Dimensioning, 4680 MAH Standard Battery, GMS, ROW |
| TC5301-0T1K7B1000-A6 | TC53, LAN, 6.0 DISPLAY, WIFI 6E, 8GB RAM/64GB ROM, SE55 IMAGER, 3.5MM HEADPHONE JACK, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW ONLY |
| TC5301-0T1K7B1B00-A6 | TC53, LAN, 6.0 Display, WiFi 6E, 8GB RAM/64GB ROM, SE55 Imager, 3.5MM Headphone Jack, 8MP FFC, 16MP RFC, Warm Swap, 4680 mAh BLE Battery, GMS, ROW only |
TC58 5G 標準配置
| Part Number | Description |
|---|---|
| TC58B1-3T1E1B1080-A6 | TC58, WAN, 6.0 Display, 5G FR1, WiFi 6E, 6GB RAM/64GB ROM, SE4720 Imager, 8MP FFC, 16MP RFC, Warm Swap, 4680 mAh Standard Battery, GMS, ROW |
| TC58B1-3T1E4B1080-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 4GB RAM/64GB ROM, SE4720 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW |
| TC58B1-3T1E4B1080-IN | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 4GB RAM/64GB ROM, SE4720 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, India ONLY |
| TC58B1-3T1E4B1B80-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 4GB RAM/64GB ROM, SE4720 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH BLE BATTERY, GMS, ROW |
| TC58B1-3T1E6B1080-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE4720 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW |
| TC58B1-3T1E6B1080-IN | TC58, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE4720 Imager, 8MP FFC, 16MP RFC, Warm Swap, 4680 mAh Std Batt, GMS, INDIA ONLY |
| TC58B1-3T1E6B1E80-A6 | TC58, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE4720 Imager, 8MP FFC, 16MP RFC, Warm Swap, 7000 mAh Extended Battery, GMS, ROW |
| TC58B1-3T1E6B1W80-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE4720 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, WIRELESS CHARGE, 4680 MAH WIRELESS CHARGE BATTERY, GMS, ROW |
| TC58B1-3T1K4B1080-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 4GB RAM/64GB ROM, SE55 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW |
| TC58B1-3T1K4B1E80-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 4GB RAM/64GB ROM, SE55 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 7000 MAH EXTENDED BATTERY, GMS, ROW |
| TC58B1-3T1K6B1080-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW |
| TC58B1-3T1K6B1080-IN | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, For India Only |
| TC58B1-3T1K6E2A8A-A6 | TC58, Premium, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, 8MP FFC, 16MP RFC W OIS, True Hot Swap & Non-Certified Parcel Dimensioning, 4680 MAH Standard Battery, GMS, ROW |
| TC58B1-3T1K6E2A8A-IN | TC58, Premium, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, 8MP FFC, 16MP RFC W OIS, True Hot Swap & Non-Certified Parcel Dimensioning, 4680 MAH Standard Battery, GMS, For India Only |
| TC58B1-3T1K6E2W8A-A6 | TC58, Premium, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, 8MP FFC, 16MP RFC W OIS, True Hot Swap & Non-Certified Parcel Dimensioning, 4680 MAH Wireless Charge Battery, GMS, ROW |
| TC58B1-3T1K7B1080-A6 | TC58, WAN, 6.0 DISPLAY, 5G FR1, WIFI 6E, 8GB RAM/64GB ROM, SE55 IMAGER, 8MP FFC, 16MP RFC, WARM SWAP, 4680 MAH STANDARD BATTERY, GMS, ROW |
| TC58B1-3T1K7B1E80-A6 | TC58, WAN, 6.0 Display, 5G FR1, WiFi 6E, 8GB RAM/64GB ROM, SE55 Imager, 8MP FFC, 16MP RFC, Warm Swap, 7000 mAh Extended Battery, GMS, ROW |
| TC58J1-3T1E6B1080-ID | TC58, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE4720 Imager, 8MP FFC, 16MP RFC, Warm Swap, 4680 MAH Standard Battery, GMS, Data ONLY for Indonesia ONLY |
| TC58J1-3T1K6B1080-ID | TC58, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, 8MP FFC, 16MP RFC, Warm Swap, 4680 MAH Standard Battery, GMS, Data ONLY for Indonesia ONLY |
TC53 / TC58 套裝配置
| Part Number | Description |
|---|---|
| KT-TC58J1-3T1E6B1080-IDPT | KIT – TC58, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE4720 Imager, 8MP FFC, 16MP RFC, Warm Swap, 4680 MAH Standard Battery, GMS, Data ONLY for Indonesia ONLY with PTT Pro 1 year license |
| KT-TC58J1-3T1K6B1080-IDPT | KIT – TC58, WAN, 6.0 Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, 8MP FFC, 16MP RFC, Warm Swap, 4680 MAH Standard Battery, GMS, Data ONLY with PTT Pro 1 year license |
配件及服務
TC53 / TC58 部署通常需要同時規劃保護套、螢幕保護貼、電池、充電座、車載配件、RFID 讀寫配件、付款配件及維護服務。
配件
| Part Number | Description |
|---|---|
| 3PTY-AG-AL4408DW | Agora Edge Forklift Holster for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices with a trigger handle. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-FM-RC-TC5358 | Gamber-Johnson InfoCase Black Rugged Case with hand strap for TC53 / TC58; PD20. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-MOB-036267 | Mobilis Screen protector anti-shock IK06 – Clear for TC53 / TC58 ; TC73 / TC78. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-MOB-065021 | Mobilis ProTech Rugged boot for TC53 / TC58. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-RAM-HOL-ZE17-2U | RAM power only spring-loaded cradle for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices with or without rugged boot.Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-RAM-HOL-ZE17L-2U | RAM power only locking spring-loaded cradle for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices with or without rugged boot.Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| CRD-TC5NG-NCCD-01 | FR55; TC53 / TC58 / TC53e / TC58e / TC53e-RFID holder in vehicles. Requires a rugged boot. |
| SG-NGTC5-SCRNP-01 | Screen protector for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5-SCRNP-03 | Set of three screen protectors for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5-SCRNP-450 | Set of 450 screen protectors for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5-WMADP1-01 | Arm / Wrist mount adapter for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Includes carrier, comfort pad (SG-NGWT-CMPD-01) and small / medium wrist strap (SG-NGWT-WSTPST-01). Requires a rugged boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5-WMADP1-02 | Arm / Wrist mount adapter for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Includes carrier, comfort pad (SG-NGWT-CMPD-01) and medium / large wrist strap (SG-NGWT-WSTPLN-01). Requires a rugged boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5EXO1-01 | Rugged boot for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5EXOYLW-01 | Rugged boot in yellow for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Color: PMS115U. Note: This accessory is consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5TC7-HLSTR-01 | Soft holster for TC501; TC701 / FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| TRG-NGTC5-ELEC-01 | TC53 / TC58; TC53e / TC58e / TC53e-RFID electric trigger handle. Requires a rugged boot (SG-NGTC5EXO1-01). Optional wrist band (SG-PD40-WLD1-01) is also available. |
| BTRY-NGTC5TC7-44MA-01 | 4,680 mAh standard battery with PowerPrecision Plus for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. |
| BTRY-NGTC5TC7-44MA-10 | Set of ten 4,680 mAh standard batteries with PowerPrecision Plus for TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 devices. |
| BTRY-NGTC5TC7-44MA-IN | India-only 4,680 mAh standard battery with PowerPrecision Plus for TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 devices. |
| BTRY-NGTC5TC7-44MABLE-01 | 4,680 mAh Bluetooth Battery with PowerPrecision Plus for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. |
| BTRY-NGTC5TC7-44MABLE-IN | BLE Battery. 4,400 mAh. For use with TC53 / TC58 and TC73 / TC78. 1-pack for India. |
| BTRY-NGTC5TC7-44MAWC-01 | 4,680 mAh wireless charging battery with PowerPrecision Plus for FR55; TC58 / TC58e; TC78 devices. |
| BTRY-NGTC5TC7-66MA-01 | 7,000 mAh extended capacity battery with PowerPrecision Plus for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. |
| BTRY-NGTC5TC7-66MA-IN | India-only 7,000 mAh extended capacity battery with PowerPrecision Plus for TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 devices. |
| BTRY-NGTC5TC7-PYMT | 4,680 mAh payment support battery with PowerPrecision Plus for TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 devices. Includes slot for integration with PD20 payment device. |
| BTRCUP-NGTC5TC7-01 | User-swappable spare battery replacement cup to charge up to four TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 spare batteries. This cup must be placed in the same slot as previous TC5X spare battery charging cup. |
| SAC-NGTC5TC7-4SCHG | Four-slot spare battery charger for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 spare batteries. Sold separately: Power supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01), and country-specific AC line cord. |
| SAC-NGTC5TC7-4SCHG-01 | KIT: Four-slot spare battery charger for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 spare batteries. Includes: Power supply (PWR-BGA12V50W0WW), and DC cable (CBL-DC-388A1-01). Sold Separately: Country-specific AC line cord. |
| 3PTY-PCLIP-216475 | ProClip USB-C Charging Cradle, 4' (120mm) USB-C Cable Does Not Include Power Supply for Zebra TC53 / TC58 with Rugged Boot. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| CR49-1S0T-TC5-G-02 | RFD40/RFD90, 1 Device Slot/0 Toaster Slots, Charge Only Cradle with support for TC53/58. Requires Power Supply (PWR-BGA12V50W0WW), DC Line Cord (CBL-DC-388A1-01), and Country Specific Line Cord. |
| CR49-1S0T-TC5-M-02 | RFD40/RFD90, 1 Device Slot/0 Toaster Slots, Communication Cradle with support for TC53/58. Requires Power Supply (PWR-BGA12V50W0WW), DC Line Cord (CBL-DC-388A1-01), and Country Specific Line Cord. |
| CR49-3S4T-TC5-G-02 | RFD40/RFD90, 3 Device Slots/4 Toaster Slots, Charge Only Cradle with support for TC53/58. Requires Power Supply (PWR-BGA12V108W0WW), DC Line Cord (CBL-DC-382A1-01), and Country Specific Line Cord. |
| CR49-3S4T-TC5-M-02 | RFD40/RFD90, 3 Device Slots/4 Toaster Slots, Communication Cradle with support for TC53/58. Requires Power Supply (PWR-BGA12V108W0WW), DC Line Cord (CBL-DC-382A1-01), and Country Specific Line Cord. |
| CRD-NGTC5B-2SE1B | KIT: Ethernet ShareCradle to charge one FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID device WITH a protective boot. Includes power supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01), and a pre-installed grey shim (SHIM-CRD-TC5-GRY). Sold Separately: Country-specific AC line cord. |
| CRD-NGTC5N-2SC1B | KIT: Single-slot and spare battery charging cradle for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes a pre-installed black shim, power supply (PWR-BGA12V50W0WW), and DC cable (CBL-DC-388A1-01).Sold Separately: Country-specific AC cable. |
| CRD-NGTC5N-2SE1B | KIT: Single-slot and spare battery charging cradle with USB communication / Ethernet capability for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes a pre-installed black shim, power supply (PWR-BGA12V50W0WW), and DC cable (CBL-DC-388A1-01). Sold Separately: Country-specific AC cable. |
| CRD-NTC5X-1SNHP-01 | TC53, TC58; TC53e / TC58e / TC53e-RFID Connect Cradle (Point of Sale), allows to connect a mobile computer to an external monitor and multiple peripherals, includes HDMI, Ethernet, 3.5mm Headset Jack, USB-A (x4), 24V Powered USB (x1), 12V Powered USB (x2) ports. Requires mobile computer, power supply PWR-BGA24V150W1WW and country specific grounded AC Line Cord sold separately |
| CRD-NTC5X-1SNWS-01 | TC53, TC58; TC53e / TC58e / TC53e-RFID Connect Cradle (Workstation), allows to connect a mobile computer to an external monitor and multiple peripherals, includes HDMI, Ethernet and USB-A (x4) ports. Requires mobile computer, power supply PWR-BGA12V50W0WW, DC Line Cord CBL-DC-388A2-01 and country specific grounded AC Line Cord sold separately |
| CRD-TC58-WCVC-01 | Wireless charging vehicle cradle for TC58 / TC58e. Includes a holder for stylus. Requires wireless charging battery (BTRY-NGTC5TC7-44MAWC-01) and rugged boot (SG-NGTC5EX01). |
| CRDCUP-NGTC5ETH-01 | Charging and USB / Ethernet communication replacement cradle cup kit for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Includes a user-swappable cup, scew to attach to cups, and shims (SHIM-CRD-NGTC5). |
| CRDCUP-NGTC5ETH-05 | Set of five charging and USB / Ethernet communication replacement cradle cups kits for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Includes five user-swappable cups, five scews to attach to cups, and 5-pack of shims (SHIM-CRD-NGTC5). |
| CRDON-NGTC5-1SC1D | Single-slot charge-only cradle for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices. Required and Sold Separately: Power Supply (PWR-BGA12V50W0WW), DC Cable (CBL-DC-388A1-01), country specific AC line cord, a black shim to charge devices without a boot (SHIM-CRD-TC5-BLK), OR a grey shim to charge devices with a boot (SHIM-CRD-TC5-GRY). |
| CRDON-NGTC5B-1SC1D | Single-slot charge-only cradle for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a rugged boot. Includes pre-installed grey shims. Sold Separately: Power supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01) and country-specific AC cable. |
| CRDON-NGTC5N-1SC1D | Single-slot charge-only cradle for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes pre-installed black shims. Sold Separately: Power supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01) and country-specific AC cable. |
| CRDCUP-NGTC5B-01 | Charge-only replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a boot. Includes a user-swappable cup, screw to attach cup to base and a pre-installed grey shim. |
| CRDCUP-NGTC5B-05 | Set of five charge-only replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a boot. Includes a user-swappable cup, screw to attach cup to base and pre-installed grey shims. |
| CRDCUP-NGTC5EB-01 | Charging and USB / Ethernet communication replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a boot. Includes a user-swappable cup, screw to attach to cups, and a pre-installed grey shim. |
| CRDCUP-NGTC5EB-05 | Set of five charging and USB / Ethernet communication replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a boot. Includes a user-swappable cup, screw to attach to cups, and pre-installed grey shims. |
| CRDCUP-NGTC5ENB-01 | Charging and USB / Ethernet communication replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a boot. Includes a user-swappable cup, screw to attach to cups, and a pre-installed black shim. |
| CRDCUP-NGTC5ENB-05 | Set of five charging and USB / Ethernet communication replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a boot. Includes a user-swappable cup, screw to attach to cups, and pre-installed black shims. |
| CRDCUP-NGTC5NB-01 | Charge-only replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a boot. Includes a user-swappable cup, screw to attach cup to base and a pre-installed black shim. |
| CRDCUP-NGTC5NB-05 | Set of five charge-only replacement cradle cup for TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a boot. Includes a user-swappable cup, screw to attach cup to base and pre-installed black shims. |
| CUP-RFD49-TC5X-2R | Replacement Cradle Cup for RFD40/RFD90 and TC53/58 |
| SHIM-CRD-TC5-BLK | Black ShareCradle cup shim to replace a damaged or lost shim for use with TC53 / TC58; TC53e / TC58e / TC53e-RFID devices without a rugged boot. |
| SHIM-CRD-TC5-GRY | Grey ShareCradle cup shim to replace a damaged or lost shim for use with FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices with a rugged boot. |
| SG-NGTC5TC7-HDSTP-01 | Hand strap for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. Can attach directly to device or rugged boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5TC7-HDSTP-03 | Set of three Hand Straps for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. Can attach directly to device or rugged boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5TC7-HDSTP-100 | Set of 100 Hand Straps for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. Can attach directly to device or rugged boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5TC7-HDSTP-1K | Set of 1000 hand straps for TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 devices. Can attach directly to device or rugged boot. |
| SG-NGTC5TC7-HDSTP-50 | Set of 50 Hand Straps for FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID; TC73 / TC78 devices. Can attach directly to device or rugged boot.Note: This accessory is a consumable and may require replacement during the device’s lifespan. |
| SG-NGTC5TC7-HDSTP1-03 | Set of three hand straps for TC53 / TC58; TC53e / TC58e / TC53e-RFID / TC73 / TC78 devices. |
| ADP-RFD40-TC5X-2E | Sled adapter with e-Connex port for direct wired connection allows TC53 / TC58; TC53e / TC58e / TC53e-RFID devices to be mounted on top of RFD40. Requires a rugged boot (SG-NGTC5EXO1-01). |
| ADP-RFD90-TC5X-2E | Sled adapter with e-Connex for direct wired connection allows TC53 / TC58; TC53e / TC58e / TC53e-RFID devices to be mounted on top of RFD90. Requires a rugged boot (SG-NGTC5EXO1-01). |
| ADP-RFD90-TC5X-2R | Sled adapter with Bluetooth connection allows TC53 / TC58; TC53e / TC58e / TC53e-RFID devices to be mounted on top of RFD90. Requires a rugged boot (SG-NGTC5EXO1-01). |
| CRD-NGTC5B-5SC4B | KIT: Charge-Only ShareCradle to charge up to four FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a protective boot and its four batteries. Includes a power supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and four pre-installed shims (SHIM-CRD-TC5-GRY). Sold Separately: Country-specific AC line cord. |
| CRD-NGTC5B-5SC5D | KIT: Charge-Only ShareCradle to charge up to five FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a protective boot. Includes a power supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-318A1-01), and five pre-installed grey shims (SHIM-CRD-TC5-GRY). Sold Separately: Country-specific AC line cord. |
| CRD-NGTC5B-5SE5D | KIT: Ethernet / USB Communication ShareCradle to charge up to five FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a protective boot. Includes a power supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01), and five pre-installed grey shims (SHIM-CRD-TC5-GRY). Sold Separately: Country-specific AC line cord. |
| CRD-NGTC5N-5SC4B | Multi-slot cradle kit to charge up to four TC53 / TC58; TC53e / TC58e / TC53e-RFID devices and four batteries. Includes four pre-installed black shims for devices without a boot, power supply (PWR- BGA12V108W0WW), and DC cable (CBL-DC- 381A1-01). Sold Separately: Country-specific AC line cord. |
| CRD-NGTC5N-5SC5D | KIT: Five-slot cradle to charge TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes pre-installed black shims, power supply (PWR- BGA12V108W0WW), and DC cable (CBL-DC- 381A1-01). Sold Separately: Country-specific AC cable. |
| CRD-NGTC5N-5SE5D | KIT: Five-slot Ethernet cradle kit to charge TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes pre-installed black shims, power supply (PWR-BGA12V108W0WW), and DC cable (CBL-DC-381A1-01). Sold Separately: Country-specific AC cable. |
| CRDON-NGTC5B-5SC4B | Multi-slot cradle to charge up to four FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a rugged boot and four batteries. Includes pre-installed grey shims. Sold Separately: Power supply (PWR- BGA12V108W0WW), DC cable (CBL-DC- 381A1-01), and country-specific AC cable. |
| CRDON-NGTC5B-5SC5D | Five-slot cradle to charge FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a rugged boot. Includes pre-installed grey shims. Sold Separately: Power supply (PWR- BGA12V108W0WW), DC cable (CBL-DC- 381A1-01), and country-specific AC cable. |
| CRDON-NGTC5B-5SE5D | Five-slot Ethernet cradle to charge FR55; TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITH a rugged boot. Includes pre-installed grey shims. Sold Separately: Power supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01) and country-specific AC cable. |
| CRDON-NGTC5N-5SC4B | Multi-slot cradle to charge up to four TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot and four batteries. Includes pre-installed black shims. Sold Separately: Power supply (PWR- BGA12V108W0WW), DC cable (CBL-DC- 381A1-01), and country-specific AC cable. |
| CRDON-NGTC5N-5SC5D | Five-slot cradle to charge TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes pre-installed black shims. Sold Separately: Power supply (PWR- BGA12V108W0WW), DC cable (CBL-DC- 381A1-01), and country-specific AC cable. |
| CRDON-NGTC5N-5SE5D | Five-slot Ethernet cradle to charge TC53 / TC58; TC53e / TC58e / TC53e-RFID devices WITHOUT a rugged boot. Includes pre-installed black shims. Sold Separately: Power supply (PWR-BGA12V108W0WW), DC cable (CBL-DC-381A1-01) and country-specific AC cable. |
| KIT-NGTC5-EXOSTRP1 | Includes one hand strap and one boot for TC53/58. |
| CHG-AUTO-CLA1-01 | Cigarette lighter auto charger cable for TC58 / TC58e / TC78 vehicle cradles (CRD-TC58-WCVC-01 / CRD-TC78-WCVC-01). Includes tab on the barrel jack end for reliable connection to vehicle cradle. |
| CHG-AUTO-HWIRE1-01 | Hard-wired auto charger cable for TC58 / TC58e / TC78 vehicle cradles (CRD-TC58-WCVC-01 / CRD-TC78-WCVC-01). Includes tab on the barrel jack end for reliable connection to vehicle cradle. The cable length is 13 feet. |
| TRD-TC5X-SNP1-01 | TC58e Snap-On Tire Tread Depth Reader – (Requires TC58e and rugged boot) |
| 3PTY-PCLIP-241872 | ProClip Charging Cradle with Tilt-Swivel and 4ft USB-A Cable for Zebra TC53/58 with Rugged Boot. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-PCLIP-711306 | ProClip Non-Charging Cradle with Tilt Swivel for TC53 / TC58 with Rugged Boot. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-PCLIP-712306 | ProClip vehicle charging cradle with cigarette lighter plug for TC53 / TC58 with Rugged Boot. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| 3PTY-PCLIP-713306 | ProClip Charging Cradle with Tilt-Swivel and 5.4V Hard-Wired Power Supply for TC53x / 58x with Rugged Boot. Note: Products sold that do not bear the Zebra brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Zebra’s Limited Warranty does not apply to products that are not Zebra branded, even if packaged or sold with Zebra products. Please contact the manufacturer directly for technical support and customer service. |
| VAM-MPP-VHCH1-01 | Vehicle charger cable for TC58 / TC58e / TC78 vehicle cradles (CRD-TC58-WCVC-01 / CRD-TC78-WCVC-01) or ZQ500 / ZQ600 series printers. Includes power supply (P1093358), choice of cigarette lighter adapter power cord or hard-wired power cord. |
服務選項
| Part Number | Description |
|---|---|
| OPT-BTRY-SBR-TC53XX-1 | Optional Z1C Battery Refresh Service for Standard Battery, for TC53XX, 1 shipment(s) of battery, 1 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC53XX-2 | Optional Z1C Battery Refresh Service for Standard Battery, for TC53XX, 1 shipment(s) of battery, 2 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC53XX-3 | Optional Z1C Battery Refresh Service for Standard Battery, for TC53XX, 1 shipment(s) of battery, 3 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC53XX-4 | Optional Z1C Battery Refresh Service for Standard Battery, for TC53XX, 1 shipment(s) of battery, 4 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC53XX-5 | Optional Z1C Battery Refresh Service for Standard Battery, for TC53XX, 2 shipment(s) of battery, 5 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC58XX-1 | Optional Z1C Battery Refresh Service for Standard Battery, for TC58XX, 1 shipment(s) of battery, 1 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC58XX-2 | Optional Z1C Battery Refresh Service for Standard Battery, for TC58XX, 1 shipment(s) of battery, 2 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC58XX-3 | Optional Z1C Battery Refresh Service for Standard Battery, for TC58XX, 1 shipment(s) of battery, 3 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC58XX-4 | Optional Z1C Battery Refresh Service for Standard Battery, for TC58XX, 1 shipment(s) of battery, 4 year coverage, MOQ 10 |
| OPT-BTRY-SBR-TC58XX-5 | Optional Z1C Battery Refresh Service for Standard Battery, for TC58XX, 2 shipment(s) of battery, 5 year coverage, MOQ 10 |
| Z1AE-TC53XX-3100 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery |
| Z1AE-TC53XX-3103 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-3200 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC53XX-3203 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-3300 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery |
| Z1AE-TC53XX-3303 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-3400 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC53XX-3403 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-3C00 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive |
| Z1AE-TC53XX-3C03 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1AE-TC53XX-4100 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery |
| Z1AE-TC53XX-4103 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-4200 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC53XX-4203 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-4300 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery |
| Z1AE-TC53XX-4303 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-4400 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC53XX-4403 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-4C00 | 4 YEAR(S) ZEBRA ONECARE ESSENTIAL, 3 DAY TAT, FOR TC53XX, PURCHASED WITHIN 30 DAYS, WITH COMPREHENSIVE COVERAGE. |
| Z1AE-TC53XX-4C03 | 4 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1AE-TC53XX-5100 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery |
| Z1AE-TC53XX-5103 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-5200 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC53XX-5203 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-5300 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery |
| Z1AE-TC53XX-5303 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-5400 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC53XX-5403 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC53XX-5C00 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive |
| Z1AE-TC53XX-5C03 | 5 yr Z1C Essential TC53XX, 3 day TAT, purchased within 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1AE-TC58XX-3100 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery |
| Z1AE-TC58XX-3103 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-3200 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC58XX-3203 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-3300 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery |
| Z1AE-TC58XX-3303 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-3400 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC58XX-3403 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-3C00 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive |
| Z1AE-TC58XX-3C03 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1AE-TC58XX-4200 | 4 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC58XX-4203 | 4 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-4300 | 4 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery |
| Z1AE-TC58XX-4303 | 4 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-4400 | 4 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC58XX-4403 | 4 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-5100 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery |
| Z1AE-TC58XX-5103 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-5200 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery |
| Z1AE-TC58XX-5203 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-5300 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery |
| Z1AE-TC58XX-5303 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-5400 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery |
| Z1AE-TC58XX-5403 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1AE-TC58XX-5C00 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive |
| Z1AE-TC58XX-5C03 | 5 yr Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1AS-TC53XX-3103 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1AS-TC53XX-3203 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-3303 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1AS-TC53XX-3403 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-3C03 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, std commissioning |
| Z1AS-TC53XX-4103 | 4 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-4203 | 4 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-4303 | 4 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-4403 | 4 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-4C03 | 4 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-5103 | 5 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1AS-TC53XX-5203 | 5 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-5303 | 5 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1AS-TC53XX-5403 | 5 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC53XX-5C03 | 5 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, std commissioning |
| Z1AS-TC58XX-3103 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1AS-TC58XX-3203 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-3303 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1AS-TC58XX-3403 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-3C03 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, std commissioning |
| Z1AS-TC58XX-4103 | 4 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for std battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-4203 | 4 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-4303 | 4 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-4403 | 4 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-5103 | 5 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1AS-TC58XX-5203 | 5 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-5303 | 5 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1AS-TC58XX-5403 | 5 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased in 30 days, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1AS-TC58XX-5C03 | 5 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased within 30 days, comprehensive, std commissioning |
| Z1BE-TC53XX-1C00 | 1 yr Z1C Essential TC53XX, 3 day TAT, purchased after 30 days, comprehensive |
| Z1BE-TC53XX-3C00 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased after 30 days, comprehensive |
| Z1BE-TC53XX-3C03 | 3 yr Z1C Essential TC53XX, 3 day TAT, purchased after 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1BE-TC58XX-1C00 | 1 yr Z1C Essential TC58XX, 3 day TAT, purchased after 30 days, comprehensive |
| Z1BE-TC58XX-3C00 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased after 30 days, comprehensive |
| Z1BE-TC58XX-3C03 | 3 yr Z1C Essential TC58XX, 3 day TAT, purchased after 30 days, comprehensive, std commissioning, MOQ 20 |
| Z1BS-TC53XX-3003 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased after 30 days, non comprehensive, std commissioning |
| Z1BS-TC53XX-3C03 | 3 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased after 30 days, comprehensive, std commissioning |
| Z1BS-TC58XX-3003 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased after 30 days, non comprehensive, std commissioning |
| Z1BS-TC58XX-3C03 | 3 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, purchased after 30 days, comprehensive, std commissioning |
| Z1RE-TC53XX-1100 | 1 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, std maintenance for std battery |
| Z1RE-TC53XX-1103 | 1 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, std maintenance for std battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-1500 | 1 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, refresh for std battery, MOQ 10 |
| Z1RE-TC53XX-1C00 | 1 Year(S) Zebra Onecare Essential, 3 Day Tat, For tc53xx, Renewal, With Comprehensive Coverage. |
| Z1RE-TC53XX-1C03 | 1 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2100 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, standard maintenance for standard battery |
| Z1RE-TC53XX-2103 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, standard maintenance for standard battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2200 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery |
| Z1RE-TC53XX-2203 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2300 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, premier maintenance for standard battery |
| Z1RE-TC53XX-2303 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, premier maintenance for standard battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2400 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery |
| Z1RE-TC53XX-2403 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2500 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, refresh for standard battery, MOQ 10 |
| Z1RE-TC53XX-2503 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, refresh for standard battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2600 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, refresh for extended or BLE battery, MOQ 10 |
| Z1RE-TC53XX-2603 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, refresh for extended or BLE battery, std commissioning, MOQ 20 |
| Z1RE-TC53XX-2C00 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive |
| Z1RE-TC53XX-2C03 | 2 yr Z1C Essential TC53XX, 3 day TAT, Renewal, comprehensive, std commissioning, MOQ 20 |
| Z1RE-TC58XX-1100 | 1 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, std maintenance for std battery |
| Z1RE-TC58XX-1103 | 1 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, std maintenance for std battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-1503 | 1 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, refresh for std battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-1C00 | 1 YEAR(S) ZEBRA ONECARE ESSENTIAL, 3 DAY TAT, FOR TC58XX, RENEWAL, WITH COMPREHENSIVE COVERAGE. |
| Z1RE-TC58XX-1C03 | 1 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2100 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, standard maintenance for standard battery |
| Z1RE-TC58XX-2103 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, standard maintenance for standard battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2200 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery |
| Z1RE-TC58XX-2203 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2300 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, premier maintenance for standard battery |
| Z1RE-TC58XX-2303 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, premier maintenance for standard battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2400 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery |
| Z1RE-TC58XX-2403 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2500 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, refresh for standard battery, MOQ 10 |
| Z1RE-TC58XX-2503 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, refresh for standard battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2600 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, refresh for extended or BLE battery, MOQ 10 |
| Z1RE-TC58XX-2603 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, refresh for extended or BLE battery, std commissioning, MOQ 20 |
| Z1RE-TC58XX-2C00 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive |
| Z1RE-TC58XX-2C03 | 2 yr Z1C Essential TC58XX, 3 day TAT, Renewal, comprehensive, std commissioning, MOQ 20 |
| Z1RS-TC53XX-1103 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1RS-TC53XX-1203 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC53XX-1303 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1RS-TC53XX-1403 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC53XX-1503 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for standard battery, std commissioning, MOQ 10 |
| Z1RS-TC53XX-1603 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for extended or BLE battery, std commissioning (MOQ 20 if enabled), MOQ 10 |
| Z1RS-TC53XX-1C03 | 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning |
| Z1RS-TC53XX-2103 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1RS-TC53XX-2203 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC53XX-2303 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1RS-TC53XX-2403 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC53XX-2503 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for standard battery, std commissioning, MOQ 10 |
| Z1RS-TC53XX-2603 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for extended or BLE battery, std commissioning (MOQ 20 if enabled), MOQ 10 |
| Z1RS-TC53XX-2C03 | 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning |
| Z1RS-TC58XX-1103 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1RS-TC58XX-1203 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC58XX-1303 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1RS-TC58XX-1403 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC58XX-1503 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for standard battery, std commissioning, MOQ 10 |
| Z1RS-TC58XX-1603 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for extended or BLE battery, std commissioning (MOQ 20 if enabled), MOQ 10 |
| Z1RS-TC58XX-1C03 | 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning |
| Z1RS-TC58XX-2103 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, standard maintenance for standard battery, std commissioning |
| Z1RS-TC58XX-2203 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC58XX-2303 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premier maintenance for standard battery, std commissioning |
| Z1RS-TC58XX-2403 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, premium maintenance for extended or BLE battery, std commissioning (MOQ 20 if enabled) |
| Z1RS-TC58XX-2503 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for standard battery, std commissioning, MOQ 10 |
| Z1RS-TC58XX-2603 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, refresh for extended or BLE battery, std commissioning (MOQ 20 if enabled), MOQ 10 |
| Z1RS-TC58XX-2C03 | 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning |
| ZJAE-TC53XX-4C00 | Z1C/VIQ PACKAGE. Z1C: 4 YR Z1C ESSENTIAL TC53XX, 3 DAY TAT, PURCHASED IN 30 DAYS, COMPREHENSIVE. VIQ: VISIBILITYIQ IOT, 4 YR TERM |
| ZJAS-TC53XX-3C03 | Z1C / VISIBILITYIQ PACKAGE: Z1C: 3 YR Z1C SELECT TC53XX, ADVANCED REPLACEMENT, NOT AVAILABLE IN LATAM, REQUIRES CUSTOMER OWNED BUFFER IN NA, PURCHASED WITHIN 30 DAYS, COMPREHENSIVE, STD COMMISSIONING. VIQ: VISIBILITYIQ FORESIGHT IOT, 36 MO |
| ZJAS-TC53XX-5C03 | Z1C / VISIBILITYIQ PACKAGE: Z1C: 5 YR Z1C SELECT TC53XX, ADVANCED REPLACEMENT, NOT AVAILABLE IN LATAM, REQUIRES CUSTOMER OWNED BUFFER IN NA, PURCHASED WITHIN 30 DAYS, COMPREHENSIVE, STD COMMISSIONING. VIQ: VISIBILITYIQ FORESIGHT IOT, 60 MO |
| ZJAS-TC58XX-3C03 | Z1C / VISIBILITYIQ PACKAGE: Z1C: 3 YR Z1C SELECT TC58XX, ADVANCED REPLACEMENT, NOT AVAILABLE IN LATAM, REQUIRES CUSTOMER OWNED BUFFER IN NA, PURCHASED WITHIN 30 DAYS, COMPREHENSIVE, STD COMMISSIONING. VIQ: VISIBILITYIQ FORESIGHT IOT, 36 MO |
| ZJAS-TC58XX-4303 | Z1C/VIQ Package. Z1C: 4 yr Z1C Select TC58XX, advanced replacement, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 4 yr term |
| ZJAS-TC58XX-5C03 | Z1C / VISIBILITYIQ PACKAGE: Z1C: 5 YR Z1C SELECT TC58XX, ADVANCED REPLACEMENT, NOT AVAILABLE IN LATAM, REQUIRES CUSTOMER OWNED BUFFER IN NA, PURCHASED WITHIN 30 DAYS, COMPREHENSIVE, STD COMMISSIONING. VIQ: VISIBILITYIQ FORESIGHT IOT, 60 MO |
| ZJRS-TC53XX-1C03 | Z1C/VIQ Package. Z1C: 1 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 20 if enabled). VIQ: VisibilityIQ IOT, 1 yr term |
| ZJRS-TC53XX-2C03 | Z1C/VIQ Package. Z1C: 2 yr Z1C Select TC53XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 20 if enabled). VIQ: VisibilityIQ IOT, 2 yr term |
| ZJRS-TC58XX-1103 | Z1C/VIQ Package. Z1C: 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for std battery, std commissioning (MOQ 20 if enabled). |
| ZJRS-TC58XX-1303 | Z1C/VIQ Package. Z1C: 1 yr Z1C Select TC58XX, advanced replacement, Renewal, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 1 yr term |
| ZJRS-TC58XX-1C03 | Z1C/VIQ Package. Z1C: 1 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 20 if enabled). VIQ: VisibilityIQ IOT, 1 yr term |
| ZJRS-TC58XX-2103 | Z1C/VIQ Package. Z1C: 2 yr Z1C Select TC58XX, advanced replacement, requires customer owned buffer in NA, Renewal, comprehensive, std maintenance for std battery, std commissioning (MOQ 20 if enabled). VIQ: VisibilityIQ IOT, 2 yr term |
| ZJRS-TC58XX-2303 | Z1C/VIQ Package. Z1C: 2 yr Z1C Select TC58XX, advanced replacement, Renewal, comprehensive, premium maintenance for std battery, std commissioning (MOQ 10 if enabled). VIQ: VisibilityIQ IOT, 2 yr term |
| ZJRS-TC58XX-2C03 | Z1C/VIQ Package. Z1C: 2 yr Z1C Select TC58XX, advanced replacement, not available in LATAM, requires customer owned buffer in NA, Renewal, comprehensive, std commissioning (MOQ 20 if enabled). VIQ: VisibilityIQ IOT, 2 yr term |
資源下載
Resources
Zebra TC53 / TC58 資源下載
以下 PDF 可供核對規格、快速入門、產品概覽及配件規劃。
證書
Certificate
Zebra 合作夥伴證書
Easy Scan 作為 Zebra Premier Solution Partner，可協助香港企業核對 TC53 / TC58 主機配置、配件、文件及部署支援。
影片
以下影片介紹 TC53 / TC58 的產品定位、掃描表現、耐用度、配件及工作流程。
VideoWhy the TC53 / TC58 Are Next-Gen Enterprise Mobile Devices介紹 TC53 / TC58 的平台定位、企業流動工作場景及裝置設計方向。
VideoIntroducing the TC53 / TC58 Mobile Computers概覽 TC53 / TC58 的主要功能、前線工作應用及系列定位。
VideoTC53 / TC58 Small Barcode Scanning Performance展示 TC53 / TC58 在較細條碼及日常掃描場景的表現。
VideoTC53 / TC58 Accessory Ecosystem示範 TC53 / TC58 配件生態，包括充電、保護及部署相關配件。
VideoTC53 and TC58 Rugged Mobile Computers Drop Test展示 TC53 / TC58 的耐用度測試場景，適合評估營運現場需要。
VideoDiscover Key Features in TC53 and TC58快速了解 TC53 / TC58 的主要功能、工作流程及配置方向。FAQ
FAQ
Zebra TC53 / TC58 常見查詢
TC53 / TC58 應該點樣分？
先看連線場景。主要在 Wi-Fi 覆蓋環境使用可先看 TC53；需要 5G / WWAN、戶外或跨場地工作可先看 TC58。
SE4720 與 SE55 如何選？
SE4720 適合一般近距離 1D / 2D 掃描；SE55 適合較遠距離或更複雜的掃描環境。
TC53 / TC58 是否支援多班次使用？
可透過 standard、extended、wireless charging battery 及 cradle 配置支援多班次；實際數量要按工作時間及用戶數確認。
是否可配合 MDM 或企業 Android app？
可以按項目需要核對 MDM、Android 版本、Zebra DNA 工具及企業 app 相容性。
查詢時要準備甚麼？
請提供使用地點、是否要 5G、掃描距離、用戶數、班次、cradle 數量、MDM / app、RFID 或 payment 配件需要。
有沒有即時價格或庫存？
價格、庫存、供應狀態、保養及交貨期需按查詢當刻由 Easy Scan 確認。
Leave Your Message
