描述

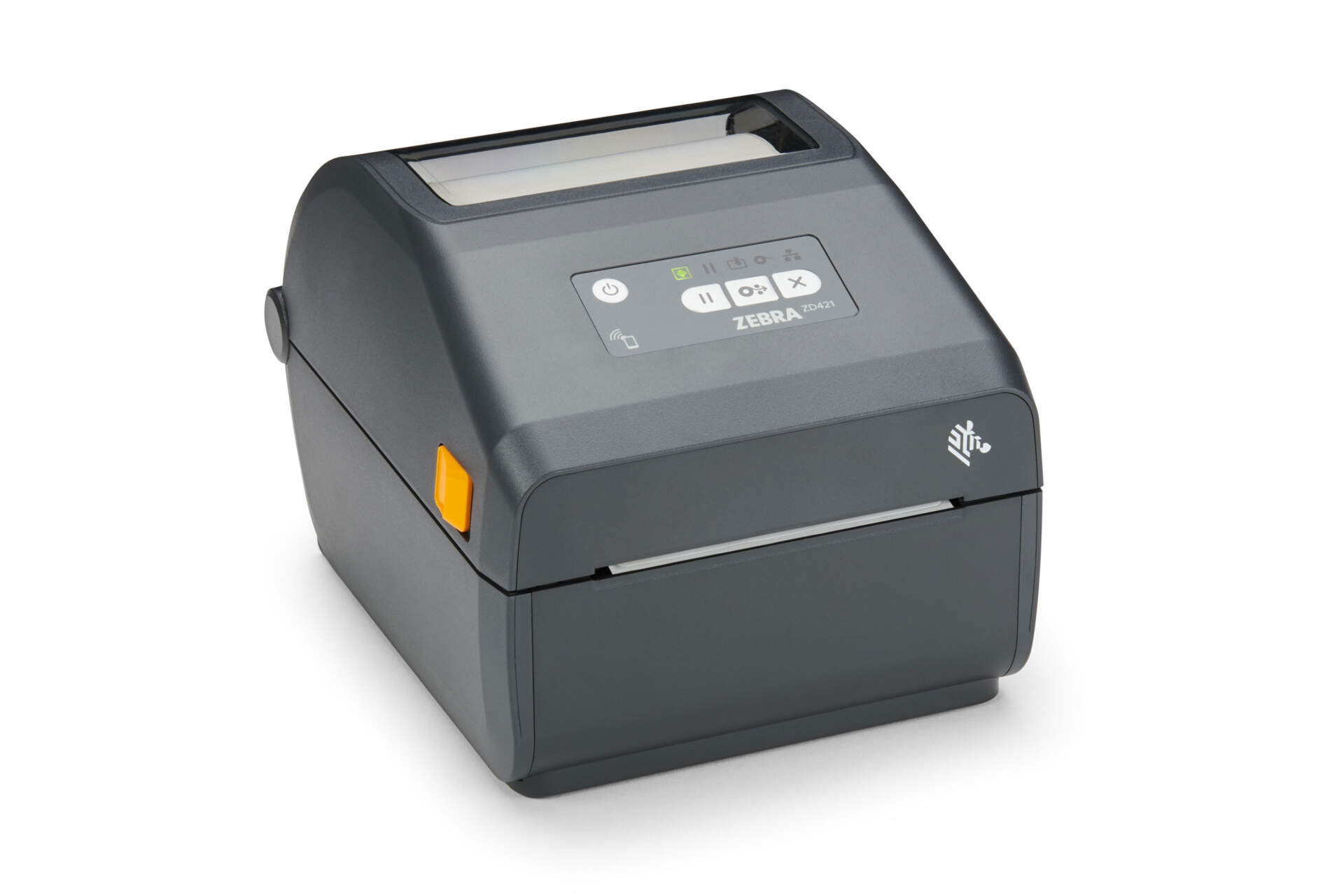

Zebra ZD421 4 吋 桌面打印機
- 簡單易用
- 簡單直觀、功能強大
- 提供先進的全新功能,令其在同類產品中脫穎而出。它包括一個新的、更簡單的用戶界面,強大的架構和可現場升級的無線套件。它還具有新的介質檔桿和介質處理設計,使日常操作更加輕鬆。
- 簡單直觀、功能強大
- 條碼打印機足夠靈活,支持幾乎所有用例
物理參數
尺寸 | 熱敏: 8.69英寸(長)x 6.98英寸(寬)x 5.93英寸(高) 220.8毫米(長)x 177.5毫米(寬)x 150.7毫米(高) 熱轉印碳帶捲: 10.5英寸(長)x 8.0英寸(寬)x 7.44英寸(高) 267毫米(長)x 202毫米(寬)x 189毫米(高) |
重量 | 熱敏: 2.98磅/1.35千克 熱轉印碳帶捲: 4.52磅/2.05千克 |
ZD421 打印機規格
操作系統 | Link-OS® |
分辨率 | 203 dpi/8點/毫米 300 dpi/12點/毫米(可選) |
內存 | 512 MB閃存、256 MB SDRAM 64 MB用戶可用非易失內存 8 MB用戶可用的SDRAM |
打印寬度上限 | 4.09英寸/104毫米(203 dpi) 4.27英寸/108毫米(300 dpi) |
最高打印速度 | 6英寸/152毫米每秒(203 dpi) 4英寸/102毫米每秒(300 dpi) |
介質傳感器 | 全寬度可移動反射/黑標傳感器;多位置透射/間隙傳感器 |
固件 | ZPL II;EPL 2;XML;ZBI;PDF Direct |
介質、碳帶和碳帶盒特性
標籤長度 | 最長:39.0 英吋 / 991 毫米 最短:0.25 英吋 / 6.4 毫米 |
介質寬度 | 熱敏: 0.585英吋 /15毫米至4.25英吋 / 108毫米 熱轉印碳帶捲: 0.585英吋 / 15毫米至4.41英吋 /112毫米 |
介質捲尺寸 | 最大卷外徑:5.00 英吋 / 127 毫米 卷芯內徑:0.5英吋 ( 12.7毫米 ) 和1.0英吋 ( 25.4 毫米 ) 標準; 1.5英吋 ( 38.1毫米 )、2.0英吋 ( 50.8毫米 ) 和 3.0 英吋 ( 76.2毫米 ) 使用可選適配器 |
介質厚度 | 最小0.003 英吋 ( 0.08 毫米 ) 最大0.0075 英吋 ( 0.19 毫米 ) |
介質類型 | 捲筒紙或折疊紙、模切或連續帶有 / 不帶黑標介質、標籤紙料、連續收據紙和腕帶 |
碳帶外徑 | 2.6 英吋 / 66 毫米 ( 300 米 ) 1.34 英吋 / 34 毫米 ( 74 米 ) |
碳帶標準長度 | 碳帶捲:300米(984英尺);74米(243英尺) |
碳帶比率 | 碳帶:介質為1:4(300米) 碳帶:介質為1:1(74米) |
碳帶寬度 | 碳帶捲:1.33英吋 / 33.8毫米至4.3英吋 / 109.2毫米 |
碳帶捲芯內徑 | 300米碳帶:1英吋 / 25.4毫米 74米碳帶:0.5英吋 / 12.7毫米 |
Zebra ZD421 操作環境
工作溫度 | 40°F 至105°F / 4.4°C 至41°C |
存儲溫度 | -40°F 至140°F / -40°C 至60°C |
工作濕度 | 10% 至90% ( 無冷凝 ) |
存儲濕度 | 5% 至95% ( 無冷凝 ) |
電氣規格 | 可自動檢測的(符合PFC標準)100-240VAC,50-60Hz; 經過ENERGY STAR認證; 經過Energy Efficiency Level VI認證; 可選 2750 mAh 電池; 醫療型號包括經過 IEC60601-1 認證的電源 |
選項
介質處理 | 分配器/剝離器:標籤剝離並通過標籤傳感器進行顯示(可現場安裝) 切刀(可現場安裝) |
通信 | 可現場安裝:以太網10 / 100,802.11ac Wi-Fi 和 藍牙4.1(雙無線);RS-232自動感應串行接口,DB-9 工廠安裝:以太網10 / 100,802.11ac Wi-Fi 和 藍牙4.1(雙無線) |
附件

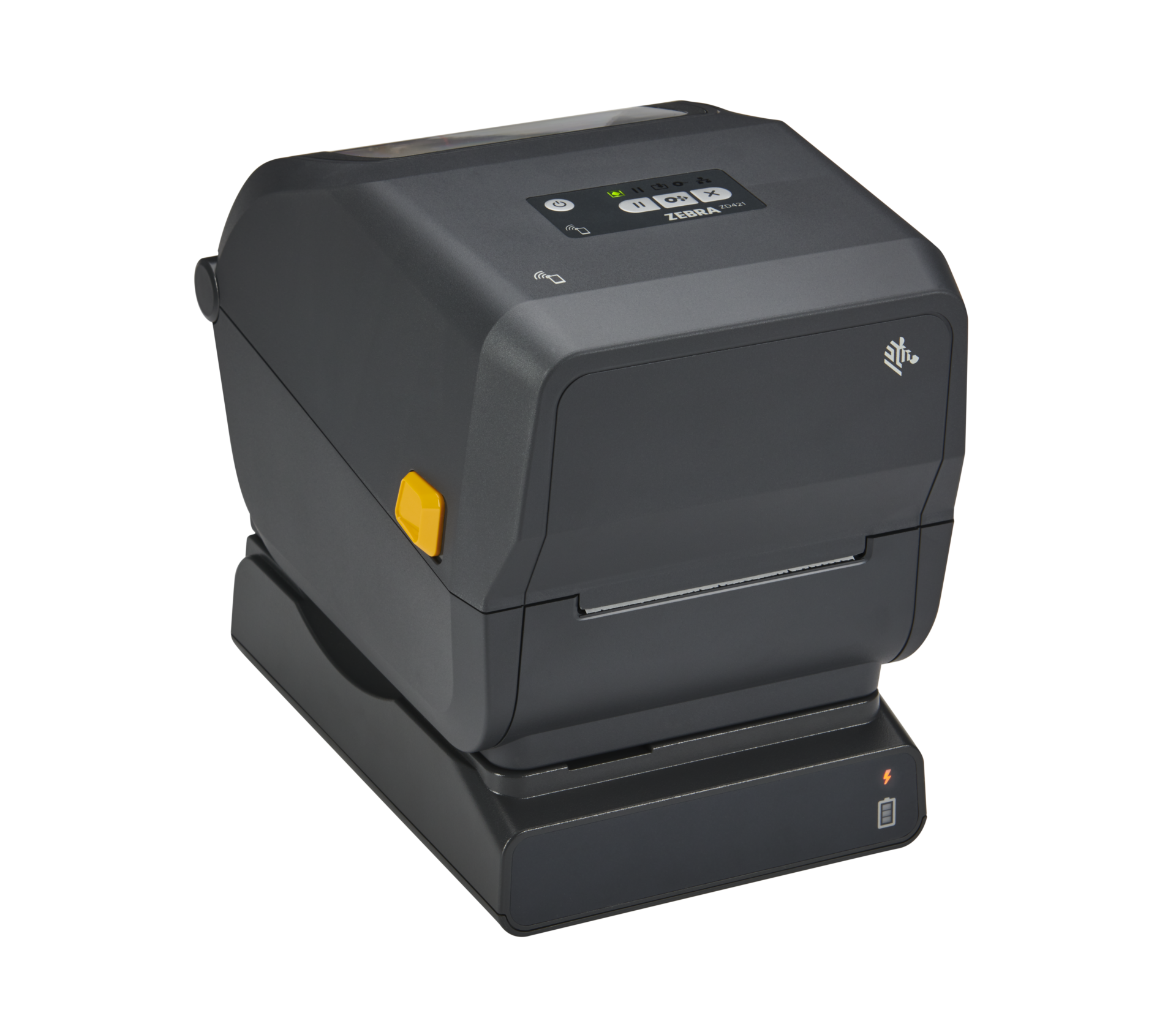

電池 | 為打印機供電以支持打印機按照最大打印速度完成整班操作;支持所有連接和介質處理選項 |
手提箱 | 帶肩帶和手柄的手提箱讓您可輕鬆將桌面打印機和電池帶到使用地點 |
鍵盤顯示單元 | Zebra 鍵盤顯示單元 ( ZKDU ),用於獨立的打印解決方案 |
固定底板 | 將 ZD 系列打印機固定在櫃檯頂部或架子上 |
封閉式電源 | 針對無線安裝附加電源附件 |


資源
文件 | |
軟件 | |
驅動程式 | |
工具 | |
Part Number
Zebra ZD421d Part Number |
Description |
---|---|
ZD4A042-D0PW02EZ | Direct Thermal Printer ZD421; 203 dpi, USB, USB Host, Modular Connectivity Slot, 802.11ac, BT4, ROW, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A042-D0PE00EZ | Direct Thermal Printer ZD421; 203 dpi, USB, USB Host, Ethernet, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A042-D0PM00EZ | Direct Thermal Printer ZD421; 203 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A043-D0PE00EZ | Direct Thermal Printer ZD421; 300 dpi, USB, USB Host, Ethernet, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A043-D0PM00EZ | Direct Thermal Printer ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, APAC Cord bundle (EU, UK, AUS,JP), Swiss Font, EZPL |
ZD4A043-D0GE00EZ | Direct Thermal Printer ZD421; 300 dpi, USB, USB Host, Ethernet, BTLE5, India Cord, Swiss Font, EZPL |
ZD4A043-D0GM00EZ | Direct Thermal Printer ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, India Cord, Swiss Font, EZPL |
ZD4A043-D0PW02EZ | Direct Thermal Printer ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, 802.11ac, BT4, All Countries Except USA, Canada and Japan, APAC Cord Bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
P1080383-603 | Kit, Battery for Desktop Printers, ZD410, ZD42x Series, ZD62x Series, ZD42x Cartridge |
P1112640-016 | Kit, Serial Module, ZD421D, ZD421T, ZD421C |
P1112640-017C | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, All countries except USA, Canada and Japan, ZD421D, ZD621D, ZD421T |
P1080383-600 | Kit, Base Housing for Battery, ZD42x & ZD62x Thermal Transfer, ZD42x Cartridge |
P1080383-601 | Kit, Base Housing for Battery, ZD42x & ZD62x Direct Thermal |
P1112640-015 | Kit, Ethernet Module, ZD421D, ZD421T, ZD421C |
P1079903-026 | KIT, POWER SUPPLY, 75W, 24V, US Cord, EU Cord, GX420D, GX420T, GK888E, GK420E, GX430T, ZD410D, ZD420C, ZD420D, ZD420T, ZD500, ZD500R, ZD620D, ZD620T, ZD421C, ZD621D, ZD621T, ZD621R |
P1112640-233 | Kit, Upgrade, Dispenser, ZD621T, ZD421C |
P1080383-234 | Kit Attached Power Supply ZD420T ZD620T, ZD621T, ZD621R, ZD421C |
47362 | Preventative Maintenance Kit (6 Presaturated Foam Tip Swabs) |
56068-001 | Font Pack, Andale Japanese (requires 64MB Flash or 32MB PCMCIA card) |
105950-035 | KIT, PRINTHEAD CLEANING PENS (12) |
P1112640-030 | Kit, Upgrade, Cutter, ZD421D, ZD621D |
56095-001 | Font Pack, Andale Traditional Chinese (requires 64MB Flash or 32MB PCMCIA card) |
P1112640-017B | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, Japan, ZD421D, ZD621D, ZD421T |
56080-001 | Font Pack, Andale Simplified Chinese (requires 64MB Flash or 32MB PCMCIA card) |
P1080383-022 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD420C, ZD420T, ZD620T, ZD621T, ZD421C, ZD621R |
P1112640-239C | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, All countries except USA, Canada and Japan, ZD621T, ZD421C |
105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
105850-006 | USB Interface Cable, 6FT (A to B) |
ZKDU-001-00 | ZKDU ZPL/EPL |
56050-001 | Font Pack, Andale Korean (requires 64MB Flash or 32MB PCMCIA card) |
G105950-054 | Kit Serial Interface Cable, 6FT (DB-9 to DB-9) Null Modem |
P1112640-031 | Kit, Upgrade, Dispenser, ZD421D, ZD621D |
77848 | Scaleable Font Pack, Japanese HGP Gothic B (requires 64MB Flash option or 8MB PCMCIA card) |
SG-DM-CASE2-01 | KIT, Accessory, Thermal Transfer Soft Carrying Case, ZD42X/ZD62X printer with battery attachment |
P1112640-057 | Kit, Attached Power Supply, 60W, ZD421D, Standard Model |
105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
P1112640-026 | Kit, 203 dpi Printhead for Healthcare Models, ZD421D |
P1112640-027 | Kit, 300 dpi printhead for Healthcare Models, ZD421D |
P1080383-430 | Kit, Attached Power Supply, ZD420D, ZD620D, ZD621D |
105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
105934-053 | Kit, Power Supply, 60W, 24V, USA Cord and EU Cord, GK420D, GK420T, GT800, ZD410D, ZD421D, ZD421T |
P1080383-423 | Kit, Adapter bracket to enable mounting a ZD42x/62xD in the same location as an existing GK/GX DT is currently mounted. Allows usage of the GK/GX DT hole pattern to mount a ZD42xD/62xD |
77840 | Bitmap Font Pack, Chinese, Japanese, Korean (203 dpi) |
P1112640-054 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD421D, ZD421T |
77841 | Bitmap Font Pack, Chinese, Japanese, Korean (300 dpi) |
P1112640-019 | Kit, 203 dpi Printhead for Standard Models, ZD421D |
105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
P1112640-020 | Kit, 300 dpi printhead for Standard Models, ZD421D |
P1112640-062 | Kit, Platen Roller 300 dpi, ZD421D, ZD621D |
SG-DM-CASE1-01 | KIT, Accessory, Direct Thermal Soft Carrying Case, ZD42X/ZD62X printer with battery attachment |
P1079903-035 | KIT, Acc., Power Cord, Taiwan, 125V, ZD410D/ZD420C (set of 5) |
105950-080 | KIT, 3-Prong Power Cord, 220V Argentina C13 (quantity of 5) |
G105850-007 | KIT, USB Interface Cable, 10FT (A to B) |
105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
P1080829 | Kit, Power Cord 250 VAC, 10A, IS1293, C13, India, Set of 5 |
77846 | Scaleable Font Pack, Simplified Chinese Monotype Sung (requires 64MB Flash option or 8MB PCMCIA card) |
P1080383-037 | Kit, Adapter bracket enables mounting a ZD42xC, ZD42xT or ZD62xT in the same location as an existing GK/GX TT is currently mounted. Allows usage of the GK/GX TT hole pattern to mount a ZD42xC, ZD42xT, ZD62xT |
P1079903-030 | Kit, Healthcare Power Supply, 75W, 24V with US cord, ZD410D, ZD420C, ZD420D, ZD420T, ZD620D, ZD620T,GK420, HC100, ZD510-HC, ZD421D, ZD421T, ZD421C, ZD621D, ZD621T |
P1112640-061 | Kit, Platen Roller 203 dpi, ZD421D, ZD621D |
105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
77847 | Scaleable Font Pack, Chinese Monotype Kai (requires 64MB Flash option or 8MB PCMCIA card) |
77844 | Scaleable Font Pack, Korean HY Gothic Hangul (requires 64MB Flash or 8MB PCMCIA card) |
P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
105850-026 | KIT, Serial Port Adapter |
77842 | Kit Font Pack, Full English, Arabic, Greek, Cyrillic, Turkish, Icelandic, East European |
P1080383-603 | Kit, Battery for Desktop Printers, ZD410, ZD42x Series, ZD62x Series, ZD42x Cartridge |
P1112640-016 | Kit, Serial Module, ZD421D, ZD421T, ZD421C |
P1112640-017C | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, All countries except USA, Canada and Japan, ZD421D, ZD621D, ZD421T |
P1080383-600 | Kit, Base Housing for Battery, ZD42x & ZD62x Thermal Transfer, ZD42x Cartridge |
P1080383-601 | Kit, Base Housing for Battery, ZD42x & ZD62x Direct Thermal |
P1112640-015 | Kit, Ethernet Module, ZD421D, ZD421T, ZD421C |
P1079903-026 | KIT, POWER SUPPLY, 75W, 24V, US Cord, EU Cord, GX420D, GX420T, GK888E, GK420E, GX430T, ZD410D, ZD420C, ZD420D, ZD420T, ZD500, ZD500R, ZD620D, ZD620T, ZD421C, ZD621D, ZD621T, ZD621R |
P1112640-233 | Kit, Upgrade, Dispenser, ZD621T, ZD421C |
P1080383-234 | Kit Attached Power Supply ZD420T ZD620T, ZD621T, ZD621R, ZD421C |
P1112640-030 | Kit, Upgrade, Cutter, ZD421D, ZD621D |
P1112640-017B | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, Japan, ZD421D, ZD621D, ZD421T |
P1080383-022 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD420C, ZD420T, ZD620T, ZD621T, ZD421C, ZD621R |
P1112640-239C | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, All countries except USA, Canada and Japan, ZD621T, ZD421C |
105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
P1112640-031 | Kit, Upgrade, Dispenser, ZD421D, ZD621D |
P1112640-057 | Kit, Attached Power Supply, 60W, ZD421D, Standard Model |
105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
P1112640-014 | Kit, Main Logic Board USB, USB Host, Bluetooth, Modular Connectivity Slot, ZD421D, ZD621D, ZD421T, ZD621T |
P1112640-026 | Kit, 203 dpi Printhead for Healthcare Models, ZD421D |
P1112640-027 | Kit, 300 dpi printhead for Healthcare Models, ZD421D |
P1080383-430 | Kit, Attached Power Supply, ZD420D, ZD620D, ZD621D |
105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
105934-053 | Kit, Power Supply, 60W, 24V, USA Cord and EU Cord, GK420D, GK420T, GT800, ZD410D, ZD421D, ZD421T |
P1080383-423 | Kit, Adapter bracket to enable mounting a ZD42x/62xD in the same location as an existing GK/GX DT is currently mounted. Allows usage of the GK/GX DT hole pattern to mount a ZD42xD/62xD |
P1112640-054 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD421D, ZD421T |
P1112640-043 | Kit, Cover for Hinge, ZD421D, ZD621D |
P1112640-019 | Kit, 203 dpi Printhead for Standard Models, ZD421D |
P1112640-009 | Kit, Upper Media Sensor (Gap Sensor), ZD421D, ZD621D |
105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
P1112640-020 | Kit, 300 dpi printhead for Standard Models, ZD421D |
P1112640-062 | Kit, Platen Roller 300 dpi, ZD421D, ZD621D |
P1112640-058 | Kit, Head Open Sensor, ZD421D, ZD621D |
P1112640-025 | Kit, Rear Bezels and Wifi Bezel for Standard Models, ZD421D |
P1112640-012 | Kit, Lower Media Sensor, (black line sensor), ZD421D, ZD621D |
P1112640-007 | Kit, Latch Assembly for Standard Models, ZD421D |
P1080383-424 | Kit, Shipping Pack, ZD420D, ZD620D |
P1112640-018 | Kit, Front Bezel, Standard, ZD421D ZD621D |
P1079903-035 | KIT, Acc., Power Cord, Taiwan, 125V, ZD410D/ZD420C (set of 5) |
P1112640-004 | Kit, Control Panel PCBA without LCD, ZD421D, ZD421T |
105950-080 | KIT, 3-Prong Power Cord, 220V Argentina C13 (quantity of 5) |
P1112640-010 | Kit, Print Mechanism 203dpi, ZD421D |
P1112640-002 | Kit, Cover Assembly for Standard Models includes Media Window, ZD421D |
P1112640-011 | Kit, Print Mechanism 300dpi, ZD421D |
P1080383-221 | Kit, Motor Assembly 203dpi & 300dpi, ZD420D, ZD420T, ZD620D, ZD620T |
P1080383-021 | Kit, Rubber Feet, Set of 4, ZD410D, ZD220D&T, ZD230D&T, ZD888D&T, ZD420C, ZD420D&T, ZD620D&T |
105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
P1080829 | Kit, Power Cord 250 VAC, 10A, IS1293, C13, India, Set of 5 |
P1080383-037 | Kit, Adapter bracket enables mounting a ZD42xC, ZD42xT or ZD62xT in the same location as an existing GK/GX TT is currently mounted. Allows usage of the GK/GX TT hole pattern to mount a ZD42xC, ZD42xT, ZD62xT |
P1079903-030 | Kit, Healthcare Power Supply, 75W, 24V with US cord, ZD410D, ZD420C, ZD420D, ZD420T, ZD620D, ZD620T,GK420, HC100, ZD510-HC, ZD421D, ZD421T, ZD421C, ZD621D, ZD621T |
P1112640-061 | Kit, Platen Roller 203 dpi, ZD421D, ZD621D |
105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
P1112640-001 | Kit, Nameplate, ZD421D |
P1112640-005 | Kit, Inner Lid without printhead, standard models, ZD421D |
P1080383-400 | Kit, Media Window, ZD420D ZD620D |
P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
Zebra ZD421t Part Number |
Description |
---|---|
ZD4A042-30PM00EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A043-30GM00EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, India Cord, Swiss Font, EZPL |
ZD4A042-30PE00EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB, USB Host, Ethernet, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A042-30PS00EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB, USB Host, Serial, BTLE5, APAC Cord Bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A043-30PM00EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A042-30GM00EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, India Cord, Swiss Font, EZPL |
ZD4A043-30PW02EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, 802.11ac, BT4, ROW, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A043-30PE00EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Ethernet, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
ZD4A042-30GE00EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB, USB Host, Ethernet, BTLE5, India Cord, Swiss Font, EZPL |
ZD4A042-30PW02EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB, USB Host, Modular Connectivity Slot, 802.11ac, BT4, ROW, APAC Cord bundle (EU, UK, AUS), Swiss Font, EZPL |
ZD4A043-307M00EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, Taiwan Cord, Swiss and Traditional Chinese Font, EZPL |
ZD4A042-30GW02EZ | Thermal Transfer Printer (74/300M) ZD421; 203 dpi, USB Host, Modular Connectivity Slot, 802.11ac, ROW, India Cord, Swiss Font, EZPL |
ZD4A043-30GW02EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Modular Connectivity Slot, 802.11ac, BT4, ROW, India Cord, Swiss Font, EZPL |
ZD4A043-307E00EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Ethernet, BTLE5, Taiwan Cord, Swiss and Traditional Chinese Font, EZPL |
ZD4A043-30PS00EZ | Thermal Transfer Printer (74/300M) ZD421; 300 dpi, USB, USB Host, Serial, BTLE5, APAC Cord Bundle (EU, UK, AUS, JP), Swiss Font, EZPL |
P1112640-230 | Kit, Upgrade, Cutter, ZD421T |
P1080383-603 | Kit, Battery for Desktop Printers, ZD410, ZD42x Series, ZD62x Series, ZD42x Cartridge |
P1112640-016 | Kit, Serial Module, ZD421D, ZD421T, ZD421C |
P1112640-017C | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, All countries except USA, Canada and Japan, ZD421D, ZD621D, ZD421T |
P1080383-600 | Kit, Base Housing for Battery, ZD42x & ZD62x Thermal Transfer, ZD42x Cartridge |
P1112640-015 | Kit, Ethernet Module, ZD421D, ZD421T, ZD421C |
P1112640-219 | Kit, Printhead 300 dpi, ZD421T |
P1080383-231 | Kit, Ribbon Core Adapters used to accept 1 inch diameter ribbon cores (1 Set), ZD230T, ZD888T, ZD420T ZD620T |
P1079903-026 | KIT, POWER SUPPLY, 75W, 24V, US Cord, EU Cord, GX420D, GX420T, GK888E, GK420E, GX430T, ZD410D, ZD420C, ZD420D, ZD420T, ZD500, ZD500R, ZD620D, ZD620T, ZD421C, ZD621D, ZD621T, ZD621R |
P1112640-233 | Kit, Upgrade, Dispenser, ZD621T, ZD421C |
P1112640-231 | Kit, Upgrade, Dispenser, ZD421T |
P1080383-234 | Kit Attached Power Supply ZD420T ZD620T, ZD621T, ZD621R, ZD421C |
47362 | Preventative Maintenance Kit (6 Presaturated Foam Tip Swabs) |
56068-001 | Font Pack, Andale Japanese (requires 64MB Flash or 32MB PCMCIA card) |
105950-035 | KIT, PRINTHEAD CLEANING PENS (12) |
P1112640-030 | Kit, Upgrade, Cutter, ZD421D, ZD621D |
56095-001 | Font Pack, Andale Traditional Chinese (requires 64MB Flash or 32MB PCMCIA card) |
P1112640-017B | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, Japan, ZD421D, ZD621D, ZD421T |
56080-001 | Font Pack, Andale Simplified Chinese (requires 64MB Flash or 32MB PCMCIA card) |
P1080383-022 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD420C, ZD420T, ZD620T, ZD621T, ZD421C, ZD621R |
105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
105850-006 | USB Interface Cable, 6FT (A to B) |
ZKDU-001-00 | ZKDU ZPL/EPL |
56050-001 | Font Pack, Andale Korean (requires 64MB Flash or 32MB PCMCIA card) |
G105950-054 | Kit Serial Interface Cable, 6FT (DB-9 to DB-9) Null Modem |
P1112640-031 | Kit, Upgrade, Dispenser, ZD421D, ZD621D |
P1112640-248 | Kit, Attached Power Supply, 60W, ZD421T, Standard Model |
77848 | Scaleable Font Pack, Japanese HGP Gothic B (requires 64MB Flash option or 8MB PCMCIA card) |
P1112640-218 | Kit, Printhead 203 dpi, ZD421T |
SG-DM-CASE2-01 | KIT, Accessory, Thermal Transfer Soft Carrying Case, ZD42X/ZD62X printer with battery attachment |
105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
P1080383-430 | Kit, Attached Power Supply, ZD420D, ZD620D, ZD621D |
105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
105934-053 | Kit, Power Supply, 60W, 24V, USA Cord and EU Cord, GK420D, GK420T, GT800, ZD410D, ZD421D, ZD421T |
P1080383-423 | Kit, Adapter bracket to enable mounting a ZD42x/62xD in the same location as an existing GK/GX DT is currently mounted. Allows usage of the GK/GX DT hole pattern to mount a ZD42xD/62xD |
77840 | Bitmap Font Pack, Chinese, Japanese, Korean (203 dpi) |
P1112640-054 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD421D, ZD421T |
77841 | Bitmap Font Pack, Chinese, Japanese, Korean (300 dpi) |
P1112640-216 | Kit, Platen Roller 203 dpi, ZD421T |
105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
P1112640-217 | Kit, Platen Roller 300 dpi, ZD421T |
P1112640-062 | Kit, Platen Roller 300 dpi, ZD421D, ZD621D |
SG-DM-CASE1-01 | KIT, Accessory, Direct Thermal Soft Carrying Case, ZD42X/ZD62X printer with battery attachment |
P1079903-035 | KIT, Acc., Power Cord, Taiwan, 125V, ZD410D/ZD420C (set of 5) |
105950-080 | KIT, 3-Prong Power Cord, 220V Argentina C13 (quantity of 5) |
G105850-007 | KIT, USB Interface Cable, 10FT (A to B) |
105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
P1080829 | Kit, Power Cord 250 VAC, 10A, IS1293, C13, India, Set of 5 |
77846 | Scaleable Font Pack, Simplified Chinese Monotype Sung (requires 64MB Flash option or 8MB PCMCIA card) |
P1080383-037 | Kit, Adapter bracket enables mounting a ZD42xC, ZD42xT or ZD62xT in the same location as an existing GK/GX TT is currently mounted. Allows usage of the GK/GX TT hole pattern to mount a ZD42xC, ZD42xT, ZD62xT |
P1079903-030 | Kit, Healthcare Power Supply, 75W, 24V with US cord, ZD410D, ZD420C, ZD420D, ZD420T, ZD620D, ZD620T,GK420, HC100, ZD510-HC, ZD421D, ZD421T, ZD421C, ZD621D, ZD621T |
P1112640-061 | Kit, Platen Roller 203 dpi, ZD421D, ZD621D |
105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
77847 | Scaleable Font Pack, Chinese Monotype Kai (requires 64MB Flash option or 8MB PCMCIA card) |
77844 | Scaleable Font Pack, Korean HY Gothic Hangul (requires 64MB Flash or 8MB PCMCIA card) |
P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
105850-026 | KIT, Serial Port Adapter |
77842 | Kit Font Pack, Full English, Arabic, Greek, Cyrillic, Turkish, Icelandic, East European |
P1112640-230 | Kit, Upgrade, Cutter, ZD421T |
P1080383-603 | Kit, Battery for Desktop Printers, ZD410, ZD42x Series, ZD62x Series, ZD42x Cartridge |
P1112640-016 | Kit, Serial Module, ZD421D, ZD421T, ZD421C |
P1112640-017C | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, All countries except USA, Canada and Japan, ZD421D, ZD621D, ZD421T |
P1080383-600 | Kit, Base Housing for Battery, ZD42x & ZD62x Thermal Transfer, ZD42x Cartridge |
P1112640-015 | Kit, Ethernet Module, ZD421D, ZD421T, ZD421C |
P1112640-219 | Kit, Printhead 300 dpi, ZD421T |
P1080383-231 | Kit, Ribbon Core Adapters used to accept 1 inch diameter ribbon cores (1 Set), ZD230T, ZD888T, ZD420T ZD620T |
P1079903-026 | KIT, POWER SUPPLY, 75W, 24V, US Cord, EU Cord, GX420D, GX420T, GK888E, GK420E, GX430T, ZD410D, ZD420C, ZD420D, ZD420T, ZD500, ZD500R, ZD620D, ZD620T, ZD421C, ZD621D, ZD621T, ZD621R |
P1112640-233 | Kit, Upgrade, Dispenser, ZD621T, ZD421C |
P1112640-231 | Kit, Upgrade, Dispenser, ZD421T |
P1080383-234 | Kit Attached Power Supply ZD420T ZD620T, ZD621T, ZD621R, ZD421C |
P1112640-030 | Kit, Upgrade, Cutter, ZD421D, ZD621D |
P1112640-017B | Kit, Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, Japan, ZD421D, ZD621D, ZD421T |
P1080383-022 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD420C, ZD420T, ZD620T, ZD621T, ZD421C, ZD621R |
105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
P1112640-031 | Kit, Upgrade, Dispenser, ZD421D, ZD621D |
P1112640-248 | Kit, Attached Power Supply, 60W, ZD421T, Standard Model |
P1112640-211 | Kit, Blackline Sensor, Movable, ZD421T |
P1112640-218 | Kit, Printhead 203 dpi, ZD421T |
105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
P1112640-014 | Kit, Main Logic Board USB, USB Host, Bluetooth, Modular Connectivity Slot, ZD421D, ZD621D, ZD421T, ZD621T |
P1080383-430 | Kit, Attached Power Supply, ZD420D, ZD620D, ZD621D |
P1112640-212 | Kit, Rear Bezels and WiFi Bezel for Standard Models, ZD421T |
105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
105934-053 | Kit, Power Supply, 60W, 24V, USA Cord and EU Cord, GK420D, GK420T, GT800, ZD410D, ZD421D, ZD421T |
P1080383-423 | Kit, Adapter bracket to enable mounting a ZD42x/62xD in the same location as an existing GK/GX DT is currently mounted. Allows usage of the GK/GX DT hole pattern to mount a ZD42xD/62xD |
P1112640-054 | Kit, Media Core Adaptors for 1.5, 2 & 3 Diameter Media Cores, (set of 2 each), ZD421D, ZD421T |
P1112640-216 | Kit, Platen Roller 203 dpi, ZD421T |
P1112640-202 | Kit, Cover Assembly for Standard Models, ZD421T |
105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
P1112640-217 | Kit, Platen Roller 300 dpi, ZD421T |
P1080383-225 | Kit, Hinge and Rear Hinge Cover, ZD420T ZD620T |
P1112640-062 | Kit, Platen Roller 300 dpi, ZD421D, ZD621D |
P1112640-209 | Kit, Print Mechanism 300dpi, ZD421T |
P1112640-200 | Kit, Media Window, ZD421T |
P1112640-208 | Kit, Print Mechanism 203dpi, ZD421T |
P1079903-035 | KIT, Acc., Power Cord, Taiwan, 125V, ZD410D/ZD420C (set of 5) |
105950-080 | KIT, 3-Prong Power Cord, 220V Argentina C13 (quantity of 5) |
P1112640-214 | Kit, Front Bezel for Standard Models, ZD421T |
P1112640-254 | Kit, Nameplate, ZD421T |
P1080383-221 | Kit, Motor Assembly 203dpi & 300dpi, ZD420D, ZD420T, ZD620D, ZD620T |
P1080383-021 | Kit, Rubber Feet, Set of 4, ZD410D, ZD220D&T, ZD230D&T, ZD888D&T, ZD420C, ZD420D&T, ZD620D&T |
105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
P1080829 | Kit, Power Cord 250 VAC, 10A, IS1293, C13, India, Set of 5 |
P1080383-037 | Kit, Adapter bracket enables mounting a ZD42xC, ZD42xT or ZD62xT in the same location as an existing GK/GX TT is currently mounted. Allows usage of the GK/GX TT hole pattern to mount a ZD42xC, ZD42xT, ZD62xT |
P1112640-204 | Kit, Ribbon Out Sensor, ZD421T |
P1079903-030 | Kit, Healthcare Power Supply, 75W, 24V with US cord, ZD410D, ZD420C, ZD420D, ZD420T, ZD620D, ZD620T,GK420, HC100, ZD510-HC, ZD421D, ZD421T, ZD421C, ZD621D, ZD621T |
P1112640-061 | Kit, Platen Roller 203 dpi, ZD421D, ZD621D |
P1112640-210 | Kit, Head Open Sensor, ZD421T |
105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
P1112640-205 | Kit, Latch Assembly, ZD421T |
P1112640-207 | Kit, Upper Media Sensor (moveable gap sensor), ZD421T ZD621T |
P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
P1112640-249 | Kit, Shipping Pack, ZD421T, ZD621T, ZD621T-R |
P1112640-206 | Kit, Ribbon Carriage, ZD421T |
影片
Zebra ZD421 / Zebra ZD621 貼紙校正
|
Zebra ZD421 / ZD621 清潔打印頭
|
Zebra ZD421 / ZD621 色帶更換
|
Zebra ZD421 / ZD621 貼紙更換
|
Zebra ZD421 / ZD621 不經電腦調整顏色深淺
|
