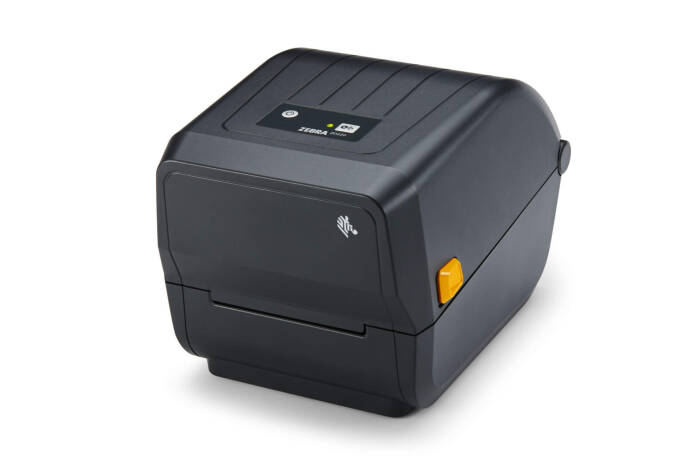

Zebra ZD220 desktop printer is available in direct thermal and thermal transfer models. Engineered with Zebra quality, it delivers reliable operation at an affordable price. This printer offers the basic features you need—all backed by Zebra service and support.
Description
Zebra ZD220 Desktop Printer
- Zebra ZD220d – Direct Thermal
- Zebra ZD220t – Thermal Transfer
ZD220 RELIABLE OPERATION, QUALITY CONSTRUCTION, UNMISTAKABLE VALUE
Zebra ZD220 desktop printer is available in direct thermal and thermal transfer models. Engineered with Zebra quality and it delivers reliable operation at an affordable price. ZD220t offers the basic features you need—all backed by Zebra service and support.
- PRINT WIDTH
- 4.1 in./104.14 mm
- COMMUNICATION METHOD
- USB 2.0 (Standard)
- MEDIA SENSORS
- Moveable black mark sensor, limited range from centre to left side
- Fixed off-centre gap sensor
- MAXIMUM PRINT SPEED
- Up to 4 in./102 mm per second (203 dpi)
- PRINT RESOLUTION
- 203 dpi/8 dots per mm
Zebra ZD220 INDUSTRIES
Zebra ZD220 USED FOR
Zebra ZD220t / Zebra ZD220d Specifications
| Dimension | Thermal Transfer: ZD220t 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal: ZD220d 8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H |
| Weight | 2.5 lbs./1.1 kg |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm |
| Maximum Print Speed | 4 in./102 mm per second |
| Firmware | ZPL II; EPL 2; XML |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 244 ft. (74 m) |
| Ribbon Ratio | 1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm |
| Ribbon Core I.D. | 74 Meter ribbon 0.5 in./12.7 mm |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
Resource
| Doc | |
| Software | |
| Driver | |
| Tool | |
Part Number
| Zebra ZD220t Part Number |
Description |
|---|---|
| ZD22042-T0GG00EZ | Thermal Transfer Printer (74M) ZD220; Standard EZPL, 203 dpi, India Power Cord, USB |
| ZD22042-T0PG00EZ | Thermal Transfer Printer (74M) ZD220; Standard EZPL, 203 dpi, APAC Power Cord bundle (EU, UK), USB |
| ZD22042-T1GG00EZ | Thermal Transfer Printer (74M) ZD220; Standard EZPL, 203 dpi, India Cord, USB, Dispenser (Peeler) |
| ZD22042-T1PG00EZ | Thermal Transfer Printer (74M) ZD220; Standard EZPL, 203 dpi, APAC Power Cord bundle (EU, UK), USB, Dispenser (Peeler) |
| P1080383-704 | Kit, Power Supply, 60W, 24V (power cord not included), ZD220 & ZD230 Direct Thermal and Thermal Transfer |
| 105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
| 105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
| 105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
| P1115688 | Kit, 203 dpi Printhead, Qty of 10, ZD220/ZD230/ZD888 TT |
| P1080383-703 | Kit, Platen Roller with bearings, ZD220, ZD230, ZD888 Thermal Transfer |
| 105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
| 105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
| 105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
| P1080383-701 | Kit, Media Adapters for 1.5 diameter cores, 1 set, ZD220, ZD230, ZD888, Direct Thermal and Thermal Transfer |
| P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
| P1080383-704 | Kit, Power Supply, 60W, 24V (power cord not included), ZD220 & ZD230 Direct Thermal and Thermal Transfer |
| P1080383-812 | Kit, Cover Assembly for Gray Colored Models, ZD220T, ZD230T, ZD888T |
| 105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
| P1080383-707 | Kit, Nameplate, ZD220D&T |
| 105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
| P1080383-805 | Kit, Upper Media Sensor, Gap Sensor, ZD220T, ZD230T, ZD888T |
| P1080383-732 | Kit, Main Logic Board with USB, ZD220D&T |
| P1080383-810 | Kit, Replacement Dispenser, this item is only for replacing a factory installed dispenser, ZD220T, ZD230T, ZD888T |
| 105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
| P1080383-808 | Kit, Lower Media Sensor, Moveable, ZD220T, ZD230T, ZD888T |
| P1080383-813 | Kit, Ribbon Carriage for 300 meter or 74 meter ribbon rolls, ZD220T, ZD230T, ZD888T |
| P1080383-021 | Kit, Rubber Feet, Set of 4, ZD410D, ZD220D&T, ZD230D&T, ZD888D&T, ZD420C, ZD420D&T, ZD620D&T |
| P1080383-806 | Kit, Print Mechanism, ZD220T, ZD230T, ZD888T |
| P1080383-232 | Kit, Shipping Pack, ZD420T ZD620T |
| P1080383-801 | Kit, Cover Assembly for White Colored Models, ZD220T, ZD230T, ZD888T |
| P1080383-711 | Kit, PCBA for Control Panel, ZD220D&T, ZD230D&T, ZD888D&T |
| P1080383-807 | Kit, Head Open Sensor, ZD220T, ZD230T, ZD888T |
| P1080383-809 | Kit, Replacement Cutter, this item is only for replacing a factory installed cutter, ZD220T, ZD230T, ZD888T |
| P1080383-706 | Kit, Packaging for shipping printer, ZD220T, ZD230T, ZD888T |
| P1080383-703 | Kit, Platen Roller with bearings, ZD220, ZD230, ZD888 Thermal Transfer |
| 105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
| 105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
| P1080383-803 | Kit, Latch Assembly, ZD220T, ZD230T, ZD888T |
| P1080383-723 | Kit, Motor Assembly, ZD220D&T, ZD230D&T, ZD888D&T |
| 105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
| P1080383-701 | Kit, Media Adapters for 1.5 diameter cores, 1 set, ZD220, ZD230, ZD888, Direct Thermal and Thermal Transfer |
| P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
| P1080383-802 | Kit, Ribbon Sensor, ZD220T, ZD230T, ZD888T |
| P1080383-745 | Kit, Side Hinge and Rear Hinge Covers, ZD220T, ZD230T, ZD888T |
| P1080383-804 | Kit, Ribbon Carriage for 74 meter ribbon rolls, ZD220T, ZD230T, ZD888T |
| Zebra ZD220d Part Number |
Description |
|---|---|
| ZD22042-D0PG00EZ | Direct Thermal Printer ZD220; Standard EZPL, 203 dpi, APAC Power Cord bundle (EU, UK), USB |
| ZD22042-D0GG00EZ | Direct Thermal Printer ZD220; Standard EZPL, 203 dpi, India Power Cord, USB |
| ZD23042-D1PC00EZ | Direct Thermal Printer ZD230; Standard EZPL, 203 dpi, APAC Power Cord bundle (EU, UK), USB, Ethernet, Dispenser (Peeler) |
| P1080383-231 | Kit, Ribbon Core Adapters used to accept 1 inch diameter ribbon cores (1 Set), ZD230T, ZD888T, ZD420T ZD620T |
| P1080383-704 | Kit, Power Supply, 60W, 24V (power cord not included), ZD220 & ZD230 Direct Thermal and Thermal Transfer |
| 105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
| P1115689 | Kit, 203 dpi Printhead, Qty of 1, ZD220/ZD230/ZD888 DT |
| P1115687 | Kit, 203 dpi Printhead, Qty of 10, ZD220/ZD230/ZD888 DT |
| 105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
| 105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
| P1080829 | Kit, Power Cord 250 VAC, 10A, IS1293, C13, India, Set of 5 |
| P1115688 | Kit, 203 dpi Printhead, Qty of 10, ZD220/ZD230/ZD888 TT |
| P1080383-700 | Kit, Platen Roller with bearings, ZD220, ZD230, ZD888 Direct Thermal |
| P1080383-703 | Kit, Platen Roller with bearings, ZD220, ZD230, ZD888 Thermal Transfer |
| 105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
| 105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
| 105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
| P1080383-701 | Kit, Media Adapters for 1.5 diameter cores, 1 set, ZD220, ZD230, ZD888, Direct Thermal and Thermal Transfer |
| P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
| P1080383-231 | Kit, Ribbon Core Adapters used to accept 1 inch diameter ribbon cores (1 Set), ZD230T, ZD888T, ZD420T ZD620T |
| P1080383-704 | Kit, Power Supply, 60W, 24V (power cord not included), ZD220 & ZD230 Direct Thermal and Thermal Transfer |
| 105950-015 | Power Cord, Euro 220V IEC320C13 (set of 5) |
| P1115689 | Kit, 203 dpi Printhead, Qty of 1, ZD220/ZD230/ZD888 DT |
| P1080383-707 | Kit, Nameplate, ZD220D&T |
| P1115687 | Kit, 203 dpi Printhead, Qty of 10, ZD220/ZD230/ZD888 DT |
| 105950-030 | 3-Prong Power Cord, 240V UK C13 (quantity of 5) |
| P1080383-732 | Kit, Main Logic Board with USB, ZD220D&T |
| 105950-014 | KIT, Power Cord, U.S. 120V IEC320C13 (set of 5) |
| P1080383-724 | Kit, Replacement Cutter, this item is only for replacing a factory installed cutter, ZD220D, ZD230D, ZD888D |
| P1080383-021 | Kit, Rubber Feet, Set of 4, ZD410D, ZD220D&T, ZD230D&T, ZD888D&T, ZD420C, ZD420D&T, ZD620D&T |
| P1112640-007 | Kit, Latch Assembly for Standard Models, ZD421D |
| P1080829 | Kit, Power Cord 250 VAC, 10A, IS1293, C13, India, Set of 5 |
| P1080383-711 | Kit, PCBA for Control Panel, ZD220D&T, ZD230D&T, ZD888D&T |
| P1080383-700 | Kit, Platen Roller with bearings, ZD220, ZD230, ZD888 Direct Thermal |
| P1080383-703 | Kit, Platen Roller with bearings, ZD220, ZD230, ZD888 Thermal Transfer |
| 105950-079 | KIT, 3-Prong Power Cord, 125V Japan C13 (quantity of 5) |
| P1080383-424 | Kit, Shipping Pack, ZD420D, ZD620D |
| 105950-078 | 3-Prong Power Cord, 220V China C13 (quantity of 5) |
| P1080383-718 | Kit, Lower Media Sensor, Moveable, ZD220D, ZD230D, ZD888D |
| P1080383-714 | Kit, Upper Media Gap Sensor, ZD220D, ZD230D, ZD888D |
| P1080383-723 | Kit, Motor Assembly, ZD220D&T, ZD230D&T, ZD888D&T |
| P1080383-709 | Kit, Cover Assembly for Gray Colored Models, ZD220D, ZD230D, ZD888D |
| P1080383-710 | Kit, Cover Assembly for White Colored Models, ZD220D, ZD230D, ZD888D |
| 105950-029 | 3-Prong Power Cord, 240V Australia C13 (quantity of 5) |
| P1080383-713 | Kit, Inner Lid without printhead for White Colored Models, ZD220D, ZD230D, ZD888D |
| P1080383-701 | Kit, Media Adapters for 1.5 diameter cores, 1 set, ZD220, ZD230, ZD888, Direct Thermal and Thermal Transfer |
| P1080383-716 | Kit, Print Mechanism, ZD220D, ZD230D, ZD888D |
| P1080383-725 | Kit, Replacement Dispenser, this item is only for replacing a factory installed dispenser, ZD220D, ZD230D, ZD888D |
| P1080383-224 | Kit, Bearings for the Platen Roller (Left and Right 10 of each), ZD220D&T, ZD230D&T, ZD888D&T, ZD420D&T, ZD620D&T |
| P1080383-717 | Kit, Head Open Sensor, ZD220D, ZD230D, ZD888D |
| P1080383-715 | Kit, Cover for Hinge, ZD220D, ZD230D, ZD888D |
| P1080383-712 | Kit, Inner Lid without printhead for Gray Colored Models, ZD220D, ZD230D, ZD888D |
