The Zebra TC101 is a six-inch enterprise Android mobile computer with 5G, Wi-Fi 6, removable batteries and multiple scanning configurations for Hong Kong retail, logistics, field and light warehouse workflows. Scan engine, Wi-Fi 6E, SIM, battery and accessory availability must be checked by region and configuration.
Download Datasheet- Description
- Additional information
- Part Number
- Accessories / Services
- Resources
- Certificates
- Video
- FAQ
Zebra Mobile Computer

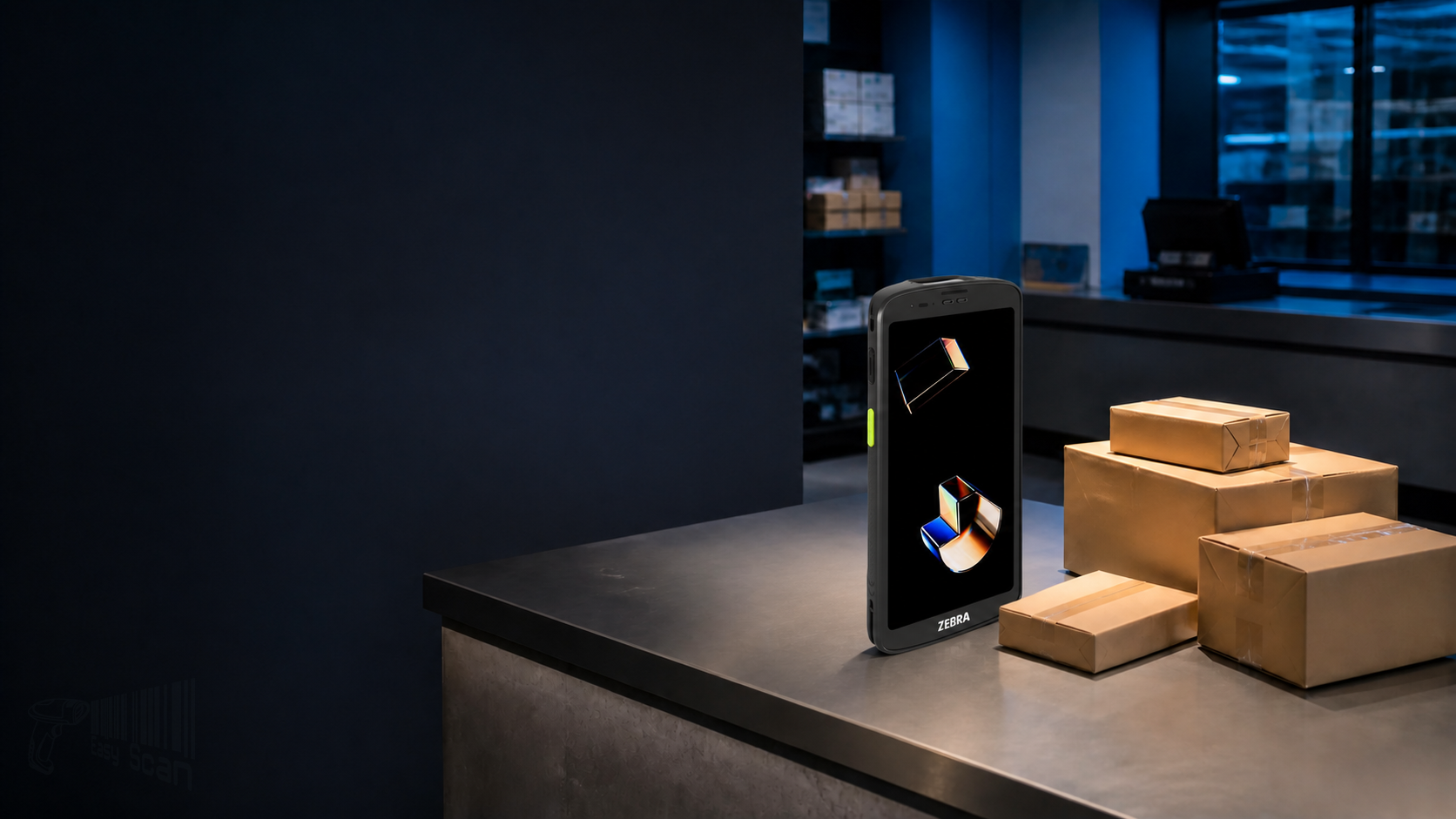

Zebra TC101 Enterprise Android Mobile Computer
A frontline handheld for Hong Kong retail, logistics, field and light warehouse teams that need 5G, Wi-Fi 6, removable batteries and multiple scanning configurations.
Product Overview
An enterprise Android platform for connected frontline work
The Zebra TC101 is an enterprise Android mobile computer, not a general consumer phone. Its 6-inch display, rugged construction, optional scan engines, 5G and Wi-Fi 6 support frontline receiving, stock checks, delivery, inspection and asset-record workflows on one platform. Wi-Fi 6E, scan engine, SIM and Zebra DNA Core+ availability varies by region or configuration.
Quick Fit
Does TC101 fit your workflow?
Everyday frontline work that needs barcode capture, enterprise device management, 5G or Wi-Fi and a removable battery.
Scan engine, Wi-Fi 6E, SIM, standard or extended battery, charging and protective accessories.
Long-range warehouse scanning, physical-key workflows, tablet-size displays or extreme-environment ultra-rugged use.
Fit Check
Check the workflow boundary before selecting the device
Better-fit workflows
- Retail receiving, price checks, replenishment and stock counts
- Delivery, field inspection and photographic records
- Light warehouse receiving, verification and asset identification
Compare another device class
- High-rack or very long-range scanning
- Heavy gloved input that depends on physical keys
- Tablet-size display or forklift-mounted workflows
Key Features
Eight points to understand before procurement
6-inch HD+ display
720 × 1440, 450 nits, Gorilla Glass and optical bonding for clear frontline work.
Enterprise platform
Qualcomm Dragonwing QCM4490 up to 2.4 GHz; 6 GB RAM / 64 GB UFS.
5G and Wi-Fi 6
5G Release 16, Wi-Fi 6 and Bluetooth 5.3; Wi-Fi 6E has regional and licensing conditions.
Scanning choices
SE4100, SR500, SR560 or camera-based directions, depending on region and configuration.
Removable batteries
Standard 3,800 mAh or extended 5,200 mAh PowerPrecision battery.
Cameras and NFC
13 MP rear camera, 5 MP front camera and NFC for record and identification workflows.
Rugged construction
IP68 / IP65; 1.2 m drop, or 1.5 m with rugged boot; 500 tumbles.
Enterprise software
Zebra DNA Core platform; some Core+, Wi-Fi 6E or tool capabilities require licensing.
Applications
Common application workflows
Retail operations
Receiving, price checks, shelf replenishment, inventory lookup and store tasks.
Logistics and delivery
Parcel verification, route tasks, proof records and exception photos.
Field service
Work-order updates, asset checks, inspection and location records.
Light warehouse
Receiving, put-away, picking verification and cycle counting.
Accessories & Platform
Plan batteries, charging, protection and software together
A practical deployment normally considers the device, standard or extended batteries, charging cradles, protective cases, carrying method and device management together. Workflows that depend on a particular scan range, SIM, Wi-Fi 6E or Core+ capability should confirm regional availability, licensing and system requirements first.
Selection Guide
Four steps to narrow the TC101 configuration
Define the work area
Confirm whether the device is mainly used in stores, warehouses, vehicles or outdoors, then list Wi-Fi and 5G needs.
Define scanning
Compare camera or scan-engine options against barcode type, distance, lighting and frequency.
Check power and accessories
Use shift length, charging locations, drop risk and carrying method to select batteries and protection.
Confirm software and region
Check Android apps, MDM, Zebra DNA licensing, SIM and wireless conditions for the target market.
Configuration Comparison
How do the scanning directions compare?
| Direction | Better fit | Check |
|---|---|---|
| Camera-based configuration | Low-to-medium frequency capture with a stronger photo requirement | Confirm barcode quality, speed and app requirements |
| SE4100 | General near-range 1D / 2D scanning | Green LED; availability varies by region |
| SR500 | Near-range scanning with a different aiming experience | Yellow LED; availability varies by region |
| SR560 | Specified red-light / laser aimer direction | Availability varies by region; confirm configuration |
Buying Pitfalls
Avoid four common procurement gaps
Quoting by model name only
TC101 still varies by scanner, battery, SIM and region; confirm the complete configuration.
Assuming Wi-Fi 6E is standard
Wi-Fi 6E is optional and involves Zebra DNA Core+ and regional availability.
Ignoring scan distance
Near-range store scanning and longer-distance warehouse labels may need different configurations.
Omitting power and protection
Build the accessory list around device count, shifts, drop risk and charging locations.
Why Easy Scan
Check the model, configuration and Hong Kong workflow together
As a Zebra Premier Solution Partner, Easy Scan can help Hong Kong businesses organise TC101 scanning, network, battery, accessory, software and support requirements around retail, logistics, field and light warehouse workflows. Final supply and compatibility remain subject to the confirmed configuration.
Specifications
TC101 full technical specifications
The specification set below follows the TC101 product spec sheet. Optional scanners, Wi-Fi 6E, WWAN, licensing and regional availability still require final configuration checks.
| Physical Characteristics | |
|---|---|
| Dimensions | L x W x D: 6.5 x 3.07 x 0.49 inches (165 x 78 x 12.5 mm) |
| Weight | 8.32 oz. (236 g) with 3,800 mAh battery; 9.24 oz. (262 g) with 5,200 mAh battery |
| Display | 6.0-inch colour HD+; 720 x 1440; LED backlight; 450 nits typical for outdoor use; optically bonded to touch panel; Corning Gorilla Glass |
| Imager Windows | Corning Gorilla Glass |
| Touch Panel | Multi-mode capacitive touch with bare or light-gloved fingertip input; water droplet rejection; oleophobic coating |
| Power | User-removable rechargeable Li-Ion PowerPrecision battery; standard capacity 3,800 mAh / 14.63 Wh; extended capacity 5,200 mAh / 20.02 Wh |
| Expansion Slot | User-accessible microSD card supports up to 2 TB |
| SIM | Dual Nano-SIM; single Nano-SIM when a microSD card is used |
| Network Connections | WLAN Wi-Fi 6, WPAN (Bluetooth 5.3), NFC, USB 2.0 (bottom Type-C); OTG / host charging mode |
| Notifications | Audible tone; multi-colour LEDs; vibration |
| Keypad | On-screen keypad |
| Voice and Audio | Stereo speakers (up to 2 W output); two microphones; USB-C or Bluetooth wireless headset support; BLE Audio 5.3 compatible; VoNR; VoLTE; cellular circuit-switch voice; HD voice; VoIP full-band / super-wideband audio and PTT |
| Buttons | Programmable buttons, dual dedicated scan buttons, dedicated push-to-talk button, volume up / down buttons |
| Interface Ports | USB 2.0 (bottom Type-C); OTG / host charging mode; 2-pin bottom connectors |
| Performance Characteristics | |
| CPU | Qualcomm Dragonwing QCM4490 processor, up to 2.4 GHz |
| Operating System | Android; supported versions: www.zebra.com/android-versions |
| Memory | 6 GB LPDDR5 RAM / 64 GB UFS Flash |
| Security | FIPS 140-3 Validated (ISO 19790) and Common Criteria certified (ISO 15408); supports Secure Boot and Verified Boot |
| User Environment | |
| Operating Temperature | -4°F to +122°F (-20°C to +50°C) |
| Storage Temperature | -40°F to +158°F (-40°C to +70°C) |
| Humidity | 5%-95% non-condensing |
| Sealing | IP68 and IP65 per applicable IEC 60529 standard |
| Tumble Specifications | 500 1.6 ft. (0.5 m) tumbles; 500 3.3 ft. (1.0 m) tumbles with rugged boot |
| Drop Specifications | Exceeds MIL-STD-810H: 4 ft. (1.2 m) to concrete across 14°F to +122°F (-10°C to +50°C); 5 ft. (1.5 m) with rugged boot |
| Electrostatic Discharge (ESD) | ±15 kV air discharge; ±8 kV direct discharge; ±8 kV indirect discharge |
| Interactive Sensor Technology (IST) | |
| Sensors | Light sensor, motion sensor, proximity sensor; magnetometer on WWAN SKUs only |
| Data Capture | |
| Scanning | Optional scanners; not all scanners are available in all regions: SE4100 1D / 2D with green LED aimer, SR500 1D / 2D with yellow LED aimer, SR560 1D / 2D with red laser aimer, or camera-based scanning using Zebra's decoder library |
| Rear Camera | 13 MP, f/1.8, 1/3 inch; Phase Detection Auto Focus (PDAF); LED flash; Torch mode |
| Front Camera | 5 MP; fixed focus |
| NFC | Reader / Writer: ISO 14443 Type A and B, MIFARE, FeliCa, ISO 15693 cards, NFC Forum Tags 2 / 3 / 4 / 5; NFC Forum compliant |
| Wireless PAN | |
| Bluetooth | Class 2, Bluetooth v5.3 |
| Wireless LAN | |
| Radio | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2×2 MU-MIMO; tri-band 2.4 / 5 / 6 GHz; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); Dual Band Simultaneous; IPv4 / IPv6 |
| Data Rates | 2.4 GHz up to 286.8 Mbps; 5 GHz up to 2402 Mbps; 6 GHz up to 2402 Mbps; 20 / 40 / 80 / 160 MHz depending on band |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| Operating Channels | 2.4 GHz channels 1-13; 5 GHz channels 36-165; 6 GHz channels 1-233; 20 / 40 / 80 / 160 MHz bandwidth; actual channels, frequencies and bandwidth depend on regulatory rules and certification |
| Security and Encryption | WPA3 Enterprise 192-bit / GCMP256 / EAP-TLS; WPA3 Enterprise AES-CCMP-128; WPA3 Personal SAE; WPA / WPA2 Enterprise and Personal; Enhanced Open OWE; WEP 40 / 104 bit; EAP-SIM, EAP-AKA and EAP-AKA Prime on WAN devices |
| Certifications | Wi-Fi CERTIFIED n / ac / 6 (Wi-Fi 6E), WPA2 / WPA3 Personal and Enterprise, Protected Management Frames, Wi-Fi Enhanced Open, WMM, WMM-Power Save, WMM-Admission Control, Voice-Enterprise, Wi-Fi Direct, Wi-Fi Agile Multiband, Wi-Fi QoS Management and Wi-Fi Optimized Connectivity |
| Passpoint | Passpoint support |
| Multimedia | Wi-Fi Multimedia (WMM) and WMM-PS, including TSPEC |
| Wireless WAN, Data and Voice Communications | |
| GPS / Locationing | GPS, GLONASS, Galileo, BeiDou, QZSS and NavIC; Dual-Band GNSS; a-GPS; supports XTRA |
| Radio Frequency Bands | Release 16, Dual SIM / Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA / SA), LTE / NR Carrier Aggregation and private 5G / LTE; RoW bands: 5G FR1 n1/2/3/5/7/8/12/18/20/25/26/28/38/40/41/66/71/77/78/79; 4G B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/34/38/39/40/41/42/43/66/71; 3G 1/2/4/5/6/8/9/19; 2G 850/900/1800/1900 |
| Environmental Compliance | |
| Environmental Compliance | RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006; EPEAT Certified; full details: www.zebra.com/environment |
| Support and Reference | |
| Warranty | Subject to Zebra's hardware warranty terms, the TC101 is warranted against defects in workmanship and materials for one year from shipment; full statement: www.zebra.com/warranty |
| Recommended Services | Zebra OneCare Essential and Special Value (SV); Zebra VisibilityIQ Foresight; Professional Services Gold Build; details: www.zebra.com/services |
| Zebra DNA | Features vary by model and a support contract may be required; see www.zebra.com/zebra-dna and developer.zebra.com/zebra-dna |
- Wi-Fi 6E requires an upgrade to a Zebra DNA Core+ licence and is not available in all regions.
- Wi-Fi performance comparison is against legacy TC1 devices with Wi-Fi 5.
- Relevant Identity Guardian, Device Guardian and LifeGuard capabilities are optional and require a licence.
- Some Zebra DNA and Workcloud Sync capabilities are optional, require a licence and are not available in all regions.
- Actual band support may vary by country or carrier.
FAQ
Common TC101 selection questions
Is TC101 suitable for warehouse work?
It depends on the workflow. TC101 suits general receiving, verification, asset identification and light stock counts. Compare another Zebra warehouse device for high racks, very long-range scanning or physical-key input.
Does every TC101 include Wi-Fi 6E?
No. Wi-Fi 6E is optional, may require Zebra DNA Core+ and is not available in every region.
Should we choose the standard or extended battery?
Review shift length, charging location, device weight and accessories. The standard battery is 3,800 mAh and the extended battery is 5,200 mAh.
Talk to Easy Scan
Need to check TC101 scanning, network, battery and accessories?
Share the workflow, barcode distance, Wi-Fi / 5G needs, shift length, device quantity and software requirements so Easy Scan can organise the TC101 enquiry scope.
| Brand | Zebra |
|---|---|
| Product Type | Enterprise Android mobile computer |
| Model | TC101 |
| Operating System | Android |
| Display | 6-inch HD+ 720 x 1440 |
| Memory | 6 GB RAM / 64 GB UFS |
| Scanner Options | SE4100, SR500, SR560 or camera-based configurations, subject to region and configuration |
| Connectivity | 5G Release 16, Wi-Fi 6 and Bluetooth 5.3, subject to configuration |
| Battery | 3,800 mAh standard or 5,200 mAh extended PowerPrecision battery |
| Suitable Application | Retail, logistics, field service and light warehouse workflows |
Part Number
These are the Production-status RoW configurations. Hong Kong supply, scan engine, wireless features and final delivery configuration must be confirmed at quotation.
Production / RoW configurations
| Part Number | Description |
|---|---|
| TC101B-2S1M9B22-A6 | TC101, 5G, Wi-Fi 6/6E, 6GB/64GB, HD+, SR560, 2-pin I/O, 5200 mAh Battery, Android GMS, For RoW |
| TC1010-0S1P9B21-A6 | TC101, Wi-Fi 6/6E, 6GB/64GB, HD+, SR500, No I/O, 5200 mAh Battery, Android GMS, For RoW |
| TC101B-2S1P9B21-A6 | TC101, 5G, Wi-Fi 6/6E, 6GB/64GB, HD+, SR500, No I/O, 5200 mAh Battery, Android GMS, For RoW |
| TC101B-2S109B21-A6 | TC101, 5G, Wi-Fi 6/6E, 6GB/64GB, HD+, No-Scanner, No I/O, 5200 mAh Battery, Android GMS, For RoW. |
Accessories / Services
The part numbers below cover the charging, battery, power, protection, carrying and headset options listed in the TC101 accessory guide. Check the rugged-boot fit, battery capacity, regional plug and workflow before confirming the accessory set.
Cradles, batteries and chargers
| Part Number | Description |
|---|---|
| CRD-TCVTB-1D1B | TC101 Charge-Only ShareCradle for a Single Device and its Spare Battery; for devices with a rugged boot. |
| CRD-TCVT-1D1B | TC101 Charge-Only ShareCradle for a Single Device and its Spare Battery; for devices without a rugged boot. |
| BTRY-TC2L-2XMAXX-01 | 3,800 mAh Standard Capacity Battery with PowerPrecision |
| BTRY-TC2L-3XMAXX-01 | 5,200 mAh Extended Capacity Battery with PowerPrecision |
| SAC-TCVT-4B | Spare Battery Charger to Charge any Four TC101 Li-ion batteries. |
| BRKT-SCRD-SMRK-01 | Mounting Bracket for up to four SAC-TCVT-4B spare battery chargers. |
Power supplies, cables and adapters
| Part Number | Description |
|---|---|
| CBL-EC5X-USBC3A-01 | USB-C to USB-C Communications and Charging Cable, 1M Long, Support 3.0 support speed and fast charge. |
| CBL-TC5X-USBC2A-01 | USB-C to USB-A Cable for use with the India power adapter. |
| PWR-WUA5V45W1US | USB type C power supply adapter with United States plug. |
| PWR-WUA5V45W1EU | USB type C power supply adapter with European Union plug. |
| PWR-WUA5V45W1GB | USB type C power supply adapter with United Kingdom plug. |
| PWR-WUA5V45W1AU | USB type C power supply adapter with Australia plug. |
| PWR-WUA5V45W1CN | USB type C power supply adapter with China plug. |
| PWR-WUA5V45W1KR | USB type C power supply adapter with Korea plug. |
| PWR-WUA5V45W1AR | USB type C power supply adapter with Argentina plug. |
| PWR-WUA5V45W1BR | USB type C power supply adapter with Brazil plug. |
| PWR-WUA5V12W1IN | USB type C power supply adapter with India plug. |
Protection and carrying
| Part Number | Description |
|---|---|
| SG-TCVT-BOOT-01 | TC101 Rugged Boot |
| SG-TC2L-HSTRP1-01 | TC101 Hand Strap |
| SG-TCVT-SCRNPT-01 | TC101 Screen Protector |
| SG-TC2L-HLSTR1-01 | TC101 Soft Holster |
Headsets
| Part Number | Description |
|---|---|
| HDST-USBC-PTT1-01 | PTT headset with USB-C connector; one-piece solution. |
Software and support services
Plan Zebra DNA, Workcloud Sync, MDM and Zebra OneCare around the application, device quantity, management model and support requirements.
Resources
Download the TC101 product spec sheet and accessory guide to review technical specifications, configuration limits and accessory choices.
Certificates
Easy Scan can help organise TC101 scanning, connectivity, battery and accessory requirements around Hong Kong B2B workflows.
Video
This platform overview explains how Zebra DNA relates to enterprise device management, protection and performance. It is not a TC101 hardware demonstration.
FAQ
Is TC101 suitable for general retail work?
It suits receiving, price checks, replenishment, stock counts and store tasks, subject to scan configuration, applications and wireless coverage.
Does TC101 support 5G?
It supports 5G Release 16. SIM, bands and regional availability still require final configuration checks.
Is Wi-Fi 6E standard?
No. Wi-Fi 6E is optional, may require Zebra DNA Core+ and is not available in every region.
Which scanning choices are listed?
Zebra lists SE4100, SR500, SR560 and camera-based directions; actual options vary by region.
What is the battery difference?
The standard battery is 3,800 mAh and the extended battery is 5,200 mAh. Review shifts, weight and charging together.
How rugged is TC101?
Zebra lists IP68 / IP65, 1.2 m drops, 1.5 m with a rugged boot and 500 tumbles.
Can an existing Android app be reused directly?
Check Android version, permissions, scanning APIs, MDM, network and testing requirements; do not assume direct compatibility.
What should we provide before requesting a quote?
Share the workflow, barcode type and distance, Wi-Fi / 5G, shifts, quantity, battery, charging, protection and software requirements.
Leave Your Message
