Drive productivity with the ZT400 Series RFID. Loaded with advanced features and connectivity options, these printers/encoders accurately and efficiently produce labels for all your mid- to high-volume item-level tracking applications. Zebra ZT411R RFID Industrial Label Printer , available in an on-metal version*, is the only dedicated option for printing and encoding on-metal tags. And, with Zebra’s Print DNA suite of applications, utilities and developer tools—all powered by Link-OS®—they’re easy to integrate, manage and maintain from any location.
Description

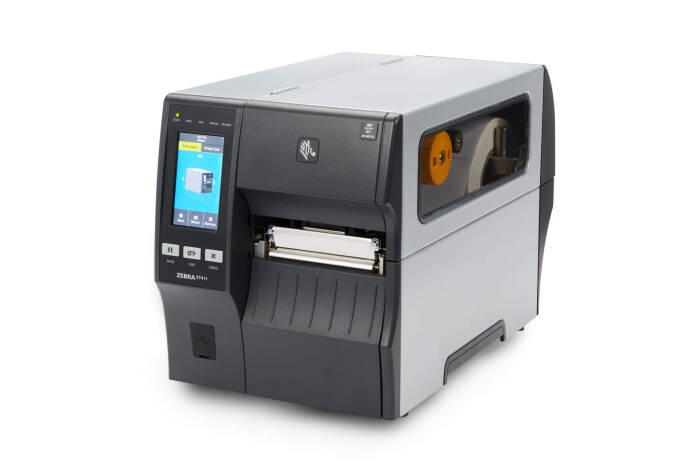

Zebra ZT400 Series – Zebra ZT411R RFID Industrial Label Printer
Zebra ZT411 RFID printer / RFID Industrial Printer encoder features a 4.3-inch full-color touch display to see status at a glance. With a print width of 4 inches and print speeds of up to 14 inches per second, it also offers high-resolution (600 dpi) printing and adaptive encoding technology for excellent media flexibility and simple RFID calibration.
-
IDEAL PRICE AND PERFORMANCE
- Zebra ZT411 RFID printer/encoder pair UHF RFID capabilities with proven durability to help keep your critical operations running efficiently. Optimized to accurately and efficiently print and encode labels for today’s item-level tracking applications, the ZT400 Series RFID gives you enhanced tracking capabilities and deeper visibility. Select Zebra’s exclusive ZT411 RFID On-metal Tagging Solution*, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.
-
DURABLE CONSTRUCTION, PRECISE PRINTING
- Zebra ZT411 RFID offers high throughput and features an all-metal frame for rugged reliability in harsh environments. The 4-inch ZT411™ RFID and 6-inch ZT421™ RFID can print and encode tags with a minimum pitch of 0.6 in./16 mm. And, the ZT411 can print up to 600 dpi for extremely crisp resolution.
-
ZT411R RFID EASY TO USE
- Adaptive encoding technology allows for excellent media flexibility and simple RFID calibration, eliminating complex placement guidelines. A 4.3-inch full-color touch display features an intuitive interface to make quick settings changes, see printer status at a glance and create custom shortcuts. Zebra has globally certified its RFID technology on six continents to support deployments across complex, multinational supply chains.
- ZT411R RFID PRINT WIDTH
- 4.09 in./104 mm
- ZT411R RFID PRINT RESOLUTION
- 203 dpi/8 dots per mm
- 300 dpi/12 dots per mm (optional)
- 600 dpi/24 dots per mm (optional) (Not available on 600 dpi model)
- MAXIMUM PRINT SPEED
- 14 ips/356 mm per second
- MEDIA SENSORS
- Adjustable dual media sensors: transmissive and reflective
- COMMUNICATION METHODS
- USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, dual USB Host
- Optional:
- Parallel (Bi-directional interface)
- Wireless dual radio with 802.11ac/Bluetooth 4.1, 10/100 Ethernet, Applicator Interface
Resource
| Doc | |
| Software | |
| Driver | |
| Tool | |
Part Number
| Part Number | Description |
|---|---|
| ZT41142-T0P00C0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41143-T0P00C0Z | TT Printer ZT411; 4, 300 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T0P00B0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Japan, EZPL |
| ZT41142-T4G00C0Z | TT Printer ZT411; 4, 203 dpi, India Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), Peel w/ Full Rewind, EZPL |
| ZT41143-T5P00B0Z | TT Printer ZT411; 4, 300 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Japan, EZPL |
| ZT41142-T5P00C0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41143-T5P00C0Z | TT Printer ZT411; 4, 300 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41143-T5P00D0Z | TT Printer ZT411; 4, 300 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Japan, 1W, EZPL |
| ZT41143-T5700C0Z | TT Printer ZT411; 4, 300 dpi, Taiwan Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T5700C0Z | TT Printer ZT411; 4, 203 dpi, Taiwan Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41146-T0G00C0Z | TT Printer ZT411; 4, 600 dpi, India Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T5P00B0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Japan, EZPL |
| ZT41143-T5G00C0Z | TT Printer ZT411; 4, 300 dpi, India Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T0700C0Z | TT Printer ZT411; 4, 203 dpi, Taiwan Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T0G00C0Z | TT Printer ZT411; 4, 203 dpi, India Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T5G00C0Z | TT Printer ZT411; 4, 203 dpi, India Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T5P00D0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: Japan, 1W, EZPL |
| ZT41142-T3P00C0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Peel w/ Liner Take-Up, RFID UHF Encoder: Rest of World (ROW), EZPL |
| ZT41142-T0P00D0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Japan, 1W, EZPL |
| ZT41142-T4P00C0Z | TT Printer ZT411; 4, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World (ROW), Peel w/ Full Rewind, EZPL |
| P1058930-010 | Kit, Printhead 300 dpi, ZT410, ZT411 |
| P1058930-009 | Kit, Printhead 203 dpi, ZT410, ZT411 |
| P1058930-080 | Kit, Platen Roller, ZT410, ZT411 |
| P1058930-011 | Kit, Printhead 600 dpi, ZT410, ZT411 |
| P1058930-500C | Kit, RFID Module Global (All countries except USA, Canada and Japan), ZT410, ZT420, ZT411, ZT421 |
| P1058930-189 | Kit, Cutter Upgrade, ZT410, ZT411 |
| P1058930-023 | Kit, Convert 300 or 600 dpi to 203 dpi, ZT410, ZT411 |
| P1083320-038 | Kit, Applicator Interface Card 5V-24V, ZT600 Series, ZT411, ZT421 |
| P1083320-037C | Kit, Zebranet Wireless Card 802.11ac, BT4.2, All Countries except USA, Canada and Japan. For all ZT600 Series models, all ZT510 models, all ZT411/ZT421 models and only ZT410/ZT420 models using firmware version V75.20.14Z or later. |
| P1058930-052 | Kit, Liner Take-Up Spindle and Motor Assembly, ZT410, ZT411 |
| P1058930-075 | Kit, Parallel Port, ZT410, ZT420, ZT411, ZT421 |
| 79830M | Kit, Ribbon Supply Spindle For Ribbons Coated Inside, ZT410, ZT411, ZM400 |
| P1105147-019 | P1105147019 Kit, Peel Assembly, ZT411 |
| P1058930-022 | Kit, Convert 203 or 600 dpi to 300 dpi, ZT410, ZT411 |
| P1000219 | SEH PS105-Z External IPv6 Print Server |
| ZKDU-001-00 | ZKDU ZPL/EPL |
| 105850-006 | USB Interface Cable, 6FT (A to B) |
| P1058930-074 | Kit, Internal Print Server IPv4, ZT410, ZT420, ZT411, ZT421 |
| P1058930-024 | Kit, Convert 203 or 300 dpi to 600 dpi, ZT410, ZT411 |
| G105850-007 | KIT, USB Interface Cable, 10FT (A to B) |
| P1105147-301 | Kit, 300dpi Printhead for On-Metal RFID, ZT411 |
| P1058930-086 | Kit, 1 inch core Media Hanger, ZT410, ZT411 |
| P1105147-300 | Kit, 203dpi Printhead for On-Metal RFID, ZT411 |
| P1070174-001 | CD,MM,ZT400 |
| 37996 | CABLE ASSY,USB,15 FT |
| P1105147-029 | Kit, Covers for the control panel, Qty of 3, ZT411, ZT421 |
| P1058930-102 | Kit, Cover for Cutter with PCBA, For all ZT411 models and only ZT410 models replacing cutter PCBA P1059429-11 or cutter cover P1053981-10. The PCBA included in this kit is only compatible with the included flat end cutter guard. |
| 39518M | Magnetic Mount for Internal Wireless Plus Antenna (Antenna not included) |
| P1031031 | KIT EXTERNAL PRINTSERVER |
| 105850-026 | KIT, Serial Port Adapter |
| P1058930-010 | Kit, Printhead 300 dpi, ZT410, ZT411 |
| P1058930-009 | Kit, Printhead 203 dpi, ZT410, ZT411 |
| P1058930-080 | Kit, Platen Roller, ZT410, ZT411 |
| P1058930-011 | Kit, Printhead 600 dpi, ZT410, ZT411 |
| 79866M | Kit Drive Belt 203 dpi ZT400 Series ZMx00 Series |
| P1058930-500C | Kit, RFID Module Global (All countries except USA, Canada and Japan), ZT410, ZT420, ZT411, ZT421 |
| P1058930-189 | Kit, Cutter Upgrade, ZT410, ZT411 |
| P1058930-023 | Kit, Convert 300 or 600 dpi to 203 dpi, ZT410, ZT411 |
| P1058930-104 | Kit, Toggle Bar, ZT410, ZT411 |
| P1083320-038 | Kit, Applicator Interface Card 5V-24V, ZT600 Series, ZT411, ZT421 |
| P1058930-058 | Kit, Media Rewind Spindle with Motor and PCB, ZT410, ZT411 |
| 79867M | Kit Drive Belt 300 & 600 dpi ZT400 Series ZMx00 Series |
| P1083320-037C | Kit, Zebranet Wireless Card 802.11ac, BT4.2, All Countries except USA, Canada and Japan. For all ZT600 Series models, all ZT510 models, all ZT411/ZT421 models and only ZT410/ZT420 models using firmware version V75.20.14Z or later. |
| P1058930-052 | Kit, Liner Take-Up Spindle and Motor Assembly, ZT410, ZT411 |
| P1058930-045 | Kit, Ribbon Take Up Spindle, ZT410, ZT411 |
| P1105147-012 | Kit, Power Supply, ZT411 |
| P1058930-075 | Kit, Parallel Port, ZT410, ZT420, ZT411, ZT421 |
| P1105147-001 | Kit, Standard Control Panel, ZT411 |
| 79830M | Kit, Ribbon Supply Spindle For Ribbons Coated Inside, ZT410, ZT411, ZM400 |
| P1105147-019 | P1105147019 Kit, Peel Assembly, ZT411 |
| P1058930-022 | Kit, Convert 203 or 600 dpi to 300 dpi, ZT410, ZT411 |
| P1000219 | SEH PS105-Z External IPv6 Print Server |
| 77197M | Kit Roller for Peel Unit ZT410 ZM400 |
| G34110M | Kit PCBA with Motor for Media Rewind Spindle ZT410 ZM400 |
| P1058930-074 | Kit, Internal Print Server IPv4, ZT410, ZT420, ZT411, ZT421 |
| P1058930-024 | Kit, Convert 203 or 300 dpi to 600 dpi, ZT410, ZT411 |
| P1058930-040 | Kit, Drive Motor, ZT410, ZT420, ZT411, ZT421 |
| P1105147-014 | Kit, Media Sensor, ZT411 |
| P1105147-007 | Kit, Standard Main Logic Board, ZT411, ZT421 |
| P1058930-057 | Kit, Media Guard for Media Rewind Spindle, ZT410, ZT420, ZT411, ZT421 |
| P1058930-042 | Kit, Media Hanger, ZT410, ZT411 |
| P1058930-039 | Kit, Drive System, ZT410, ZT420, ZT411, ZT421 |
| P1058930-503 | Kit, RFID Cables and Hardware, ZT410, ZT420, ZT411, ZT421 |
| P1105147-301 | Kit, 300dpi Printhead for On-Metal RFID, ZT411 |
| P1058930-055 | Kit, Steer Roller, ZT410, ZT411 |
| P1058930-085 | Kit, Ribbon Supply Spindle, ZT410, ZT411 |
| G34112M | Kit PCBA/Motor assembly for LTU ZT410 ZM400 |
| P1058930-500B | Kit, RFID Module Japan, Low Power 250mW Type Approval, ZT410, ZT420, ZT411, ZT421 |
| P1105147-027 | Kit, Media Guides and Media Carrier, ZT411 |
| P1058930-086 | Kit, 1 inch core Media Hanger, ZT410, ZT411 |
| P1105147-300 | Kit, 203dpi Printhead for On-Metal RFID, ZT411 |
| P1058930-008 | Kit, Media Window, ZT410, ZT420, ZT411, ZT421 |
| P1105147-008 | Kit, Economy Main Logic Board, ZT411, ZT421 |
| P1058930-082 | Kit, Magnet for Print Mechanism, ZT410, ZT420, ZT411, ZT421 |
| P1105147-021 | Kit, Housing Assembly for Platen, ZT411 |
| P1058930-027 | Kit, Retainer for Platen, ZT410, ZT420, ZT411, ZT421 |
| P1058930-078 | Kit, Feet for Printer (Qty of 20), ZT410, ZT420, ZT411, ZT421 |
| P1105147-003 | Kit, Economy Control Panel, ZT411 |
| P1058930-079 | Kit, Light Assemblies, ZT410, ZT420, ZT411, ZT421 |
| P1066612 | Kit Static Brush & Guard for Cutter ZT410, ZT610, ZT510, ZM400 |
| P1058930-167 | Kit, Packaging QTY of 8 ZT410, ZT411 |
| P1058930-004 | Kit, Media Cover, ZT410, ZT411 |
| P1058930-083 | Kit, Ground Contact, ZT410, ZT420, ZT411, ZT421 |
| P1105147-035 | Kit, Head Open Sensor, ZT411, ZT421 |
| P1105147-010 | Kit, Plugs for media light holes, Quantity of 4, Economy Versions of ZT411, ZT421 |
| P1105147-009 | Kit, Bracket for Main Logic Board, ZT411, ZT421 |
| P1058930-062 | Kit, Covers for Options, ZT410, ZT420, ZT411, ZT421 |
| P1058930-404 | Kit, Cover for Dual Port USB, Qty of 3, All ZT411/ZT421 printers and only ZT410/ZT420 printers that have the letter A as the sixth digit of the printer part number. ZT4x0Ax-xxxxxxxx for example. |
| 79862M | Kit Coupler for Platen Roller ZT400 Series ZMx00 Series |
| P1105147-013 | Kit, Electronics Cables, ZT411, ZT421 |
| P1037974-053 | Kit, Replacement Antenna Wi-Fi ac & n, Tabletops |
| P1105147-302 | Kit, On-Metal RFID Printing Media Guides and Carrier, ZT411 |
| 77041 | Catch Tray for Cutter ZT410 ZM400 |
| P1058930-060 | Kit, Door and Trim for Media Rewind, ZT410, ZT411 |
| 46693 | PWRCORD 79IN DTCHBL |
| P1058930-166 | Kit, Packaging, Qty of 1, ZT410, ZT411 |
| 79837M | Kit Tear Bar ZT410, ZT411, ZM400 ZT200 Series |
| P1058930-070 | Kit, Packaging Media Rewind Versions QTY of 1, ZT410, ZT421 |
| P1105147-029 | Kit, Covers for the control panel, Qty of 3, ZT411, ZT421 |
| P1058930-003 | Kit, Electronics Cover, ZT410, ZT420, ZT411, ZT421 |
| P1105147-023 | Kit, Assorted Hardware, ZT411, ZT421 |
| P1058930-006 | Kit, Front Lower Panels, ZT410, ZT411 |
| P1105147-005 | Kit, Thermal Transfer Print Mechanism, ZT411 |
| P1058930-102 | Kit, Cover for Cutter with PCBA, For all ZT411 models and only ZT410 models replacing cutter PCBA P1059429-11 or cutter cover P1053981-10. The PCBA included in this kit is only compatible with the included flat end cutter guard. |
| P1058930-403 | Kit, Dual Port USB PCBA, All ZT411/ZT421 printers and only ZT410/ZT420 printers that have the letter A as the sixth digit of the printer part number. ZT4x0Ax-xxxxxxxx for example. |
| P1058930-094 | Kit, Ribbon Strip Plate and Ribbon Static Brush, ZT410, ZT411 |
| P1058930-047 | Kit, Media Shelf, ZT410, ZT411 |
| P1105147-016 | Kit, Ribbon Sensor, ZT411 |
| 37609 | PWRCORD JPN 79 IN DETACHABLE |
| P1105147-025 | Kit, Media Dancer, ZT411 |
| P1105147-018 | Kit, Take Label Sensor, ZT411, ZT421 |
| 39518M | Magnetic Mount for Internal Wireless Plus Antenna (Antenna not included) |
| P1031031 | KIT EXTERNAL PRINTSERVER |
Video
| Zebra ZT411R Unpacking |
| Zebra ZT411R Load Media and Ribbon |
| Zebra ZT411R Adjustment Printhead Pressure |
| Zebra ZT411R Replacing the Platen Roller |
| Zebra ZT411R Fix Printer Pause |
