Zebra ZT411

Home > Product > Barcode Printer > Zebra > Zebra ZT411

The ZT411 has a 4.3-inch full-color touch display to see status at a glance, print width of 4 inches and print speeds of up to 14 inches per second. It offers high-resolution (600 dpi) printing. Add RFID capabilities to print and encode general UHF RFID tags or thicker on-metal tags.

pdf

Description

Drive productivity with Zebra ZT411. Constructed with an all-metal frame and bi-fold door, these printer are durable and allow easy access. 4.3-inch full-color touch display with intuitive interface makes them easy to use, and shows color-coded printer status alerts. Configure your printer your way with advanced technology, along with two open communication slots. These printers keep your critical operations running efficiently today, and give you the flexibility to add features in the future as you need them.

Available in three print resolutions and two print widths, Zebra ZT411 addresses a broad array of applications. They are easy to integrate and manage with Zebra’s Print DNA suite of applications, utilities and developer tools—all powered by Link-OS®.

  • ENGINEERED TO MEET YOUR CURRENT AND FUTURE BUSINESS NEEDS
    Zebra ZT411 delivers advancements in print speed, connectivity options, and management and support tools. Factory- or field-installable options, including RFID and media handling, empower you to customize your printer to match your needs now and in the future. And, an an open architecture, allows these printers to advance with technology.
  • DESIGNED TO DELIVER EASE OF INTEGRATION, OPERATION AND MANAGEMENT
    The lighted and color-coded, side-loading supplies paths facilitate simple installation of media and ribbon and the tool-less print head and platen roller replacement keeps operations running. See printer status at a glance with the 4.3-inch full-color display, including color-coded alerts when the printer is paused or in an error state, so you instantly know when the printer needs attention. Dynamic QR codes provide “on-demand”, web-based support-including video access-to resolve printer errors quickly. Simplify integration and management with Zebra’s Print DNA suite of applications, utilities and developer tools- all powered by Link-OS.
  • APPLICATION FLEXIBILITY
    Standard USB, Serial, Ethernet, dual USB Host and Bluetooth connectivity options; and two open media slots allow you to add Parallel, Ethernet, applicator interface cards and more. Easily add factory-or field-installable RFID encoding options for either general purpose UHF RFID tags or thicker on-metal tags. End user installable media handling options allow you to customize your printer to match your current and future business needs.

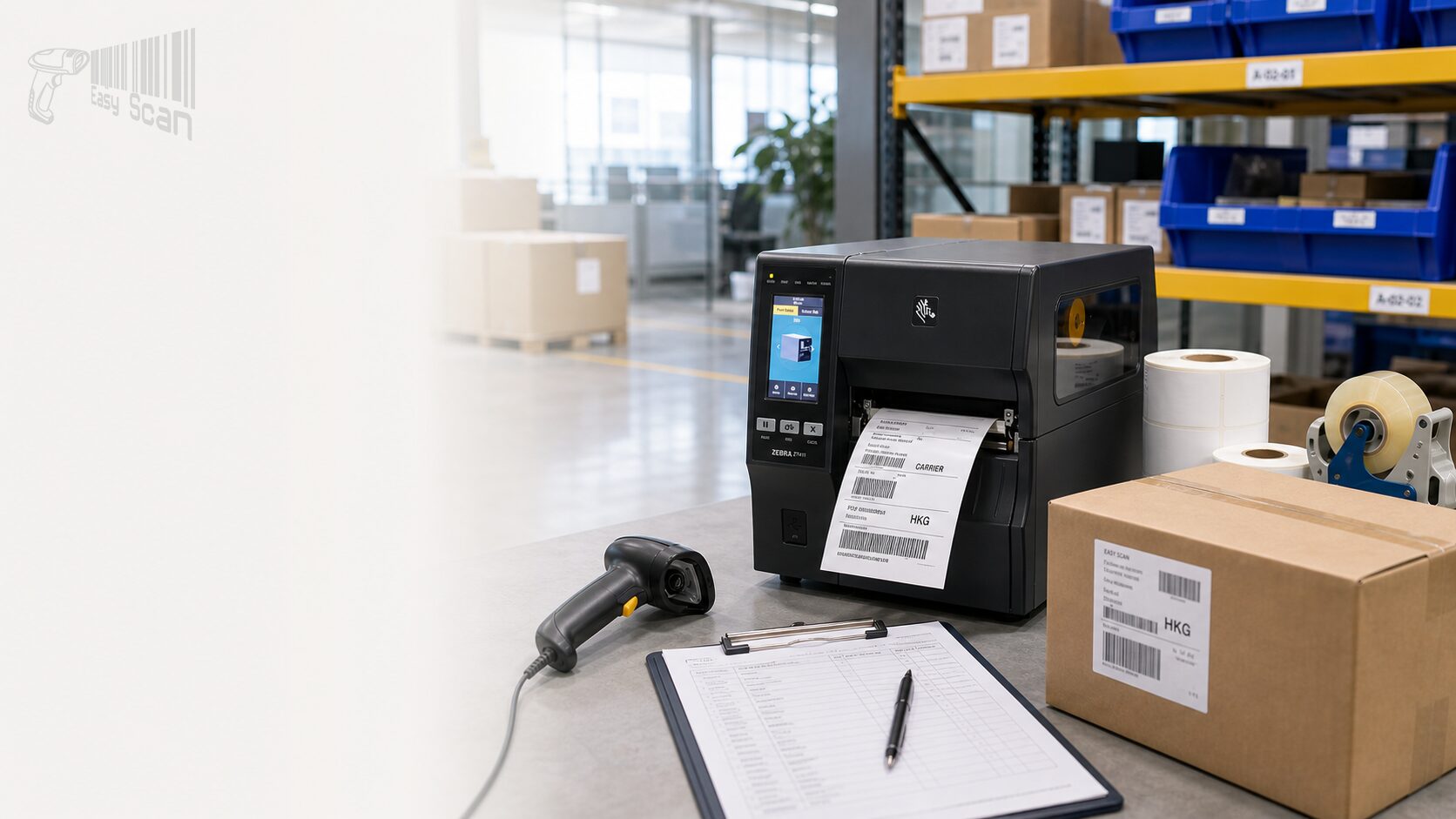

Zebra ZT411 Industrial Printer

Zebra ZT411 has a 4.3-inch full-color touch display to see status at a glance, print width of 4 inches and print speeds of up to 14 inches per second. It offers high-resolution (600 dpi) printing. Add RFID capabilities to print and encode general UHF RFID tags or thicker on-metal tags.

INDUSTRIES

  •  Retail
  •  Healthcare
  •  Manufacturing
  •  Transportation
  •  Warehouse Management

USED FOR

  • Distribution
  • Shipping and Receiving
  • Work-in-Progress Tracking
  • Document and Patient Records Management
  • Back-of-Store Operations
  • Compliance Labeling
  • Product ID/Serial Numbers
  • Security Tagging
  • Specimen/Laboratory/Pharmacy Labeling
  • Cross Docking
Dimensions  19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
Weight 36 lbs./16.33 kg
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT411 only)
Memory 256 MB SDRAM memory
512 MB on-board linear Flash memory
Maximum Print Width 4.09 in./104 mm
Maximum Print Speed 14 ips/356 mm per second
Media Sensors Adjustable dual media sensors:
transmissive and reflective
Print Length
  • 203 dpi: 157 in./3988 mm
  • 300 dpi: 73 in./1854 mm
  • 600 dpi: 39 in./991 mm
Maximum Media Width
  • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
  • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
Maximum Media Roll Size 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness 0.0023 in./0.058 mm to 0.010 in./0.25 mm
Ribbon Standard Length 1476 ft./450 M
Ribbon Width 2.00 in./51 mm to 4.33 in./110 mm
Ribbon Core 1.0 in./25 mm I.D.
Operating Temperature Thermal transfer: 40º F to 104º F/5º C to 40º C
Direct thermal: 32º F to 104º F/0º C to 40º C
Firmware ZBI 2.0™ — Optional powerful programming language that lets printers run standalone applications, connect to peripherals, and much more.
ZPL and ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron® Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)
Wifi Two open communication slots to add internal
cards for:

  • Dual band 802.11ac Wi-Fi and Bluetooth
  • Parallel (bi-directional interface)
  • 10/100 Ethernet
  • Applicator interface
RFID
  • Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
  • Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models
  • Adaptive Encoding Technology automatically selects optimum encode settings
  • Field installable on-metal RFID kit available*
