Description

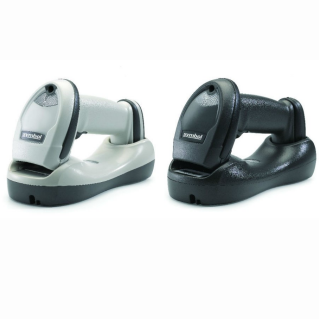

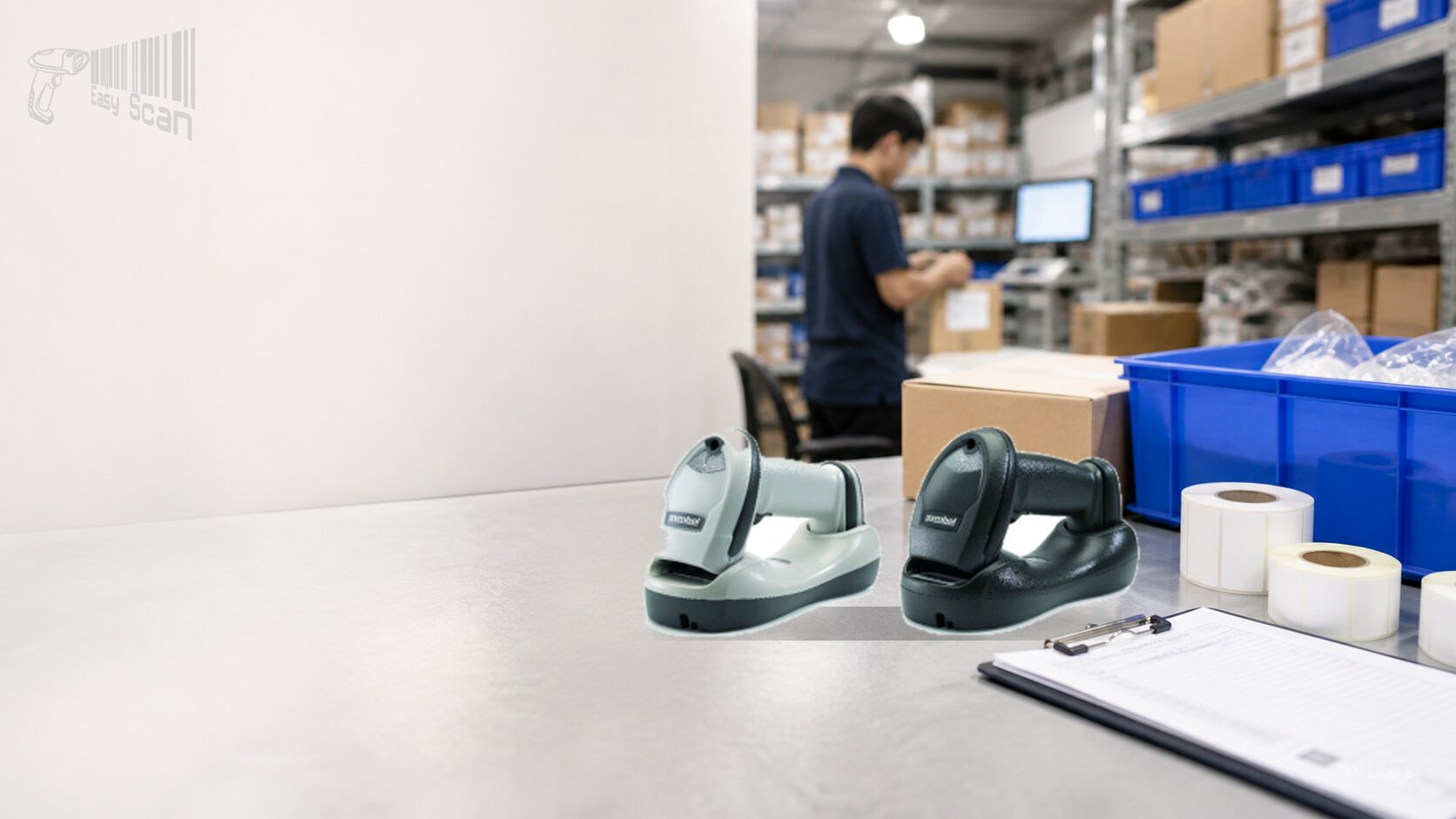

Zebra Motorola Symbol LI4278 takes 1D bar code scanning to the next level, allowing workers to scan faster and farther as they can capture virtually any 1D bar code. Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance.
The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.
Excellent 1D scanning performance
Delivers superior scanning speed and a wide data capture range
Captures virtually all 1D bar codes on any surface — including mobile phone displays
Capture labels printed on traditional paper labels as well as mobile bar codes that may be displayed on a mobile phone, tablet or computer screen
Wide working range
Reads UPC barcodes from 1 in./2.54 cm to 30 in./76.2 cm as well as high density codes at extended ranges for application flexibility
Superior motion and angular tolerance
Bar codes can be captured faster, and there is no need to pause between scans or align scanner and bar code
Built-in rechargeable battery
Provides largest number of scans per charge – easily provides a full day of service in the highest usage profiles; replaceable battery ensures long lifecycle
Compatible with 123Scan2 and Remote Scanner Management (RSM)
Dramatically reduces management time and cost, from initial configuration to day-to-day management
Withstands 100 consecutive drops to concrete
Protects against downtime from breakage due to everyday drops
Flexible mounting — vertical or horizontal
Desktop cradle provides versatility to accommodate your unique environment
Bluetooth 2.1
Provides better security, better performance, better energy management and much easier pairing over the Bluetooth wireless connection
Backward compatible
Works with LS4278 cradles, providing a very cost-effective upgrade path
Resource
Doc | |
Zebra LI4278 Accessory Guide 377.00 KB
|
|
Tool | |
Advance
Suffix Enter |
Default Setting |
Part Number
Part Number | Description |
---|---|
LI4278-TRBU0100ZY | LI4278 Black Standard Cradle USB KIT – INDIA ONLY: LI4278-SR20007Y Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10007WR Cradle |
LI4278-TRBU0100ZAR | LI4278 Black Standard Cradle USB Kit – APAC: LI4278-SR20007WR Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10007WR Cradle |
LI4278-TRBU0100ZWR | LI4278 Black Standard Cradle USB Kit: LI4278-SR20007WR Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10007WR Cradle |
LI4278-TRWU0100ZAR | LI4278 White Standard Cradle USB Kit – APAC: LI4278-SR20001WR Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10001WR Cradle |
LI4278-SR20007WR | LI4278:Cordless Linear Imager, Bluetooth, Twilight Black |
LI4278-SR20001WR | LI4278:Cordless Linear Imager, Bluetooth, Cash Register White |
LI4278-SR20007Y | LI4278: Linear Imager, Standard Range, Cordless, Twilight Black – INDIA ONLY |
LI4278-PRBU2100AAR | LI4278 BLACK PRESENTATION CRADLE USB NO LINE CORD KIT – APAC: LI4278-SR20007WR SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR0078-PC1F007WR CRADLE, PWR-BGA12V50W0WW POWER SUPPLY AND CBL-DC-375A1-01 DC LINE CORD |
LI4278-SR7U21A0PRB | LI4278 BLACK PRESENTATION CRADLE USB KIT BRAZIL: LI4278-SR20007WR SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR0078-PC1F007WR CRADLE, PWR-BGA12V50W0WW POWER SUPPLY CBL-DC-375A1-01 AND 50-16000-727R LINE CORD |
LI4278-PRBU2100AWR | LI4278 Black Presentation Cradle USB No Line Cord Kit: LI4278-SR20007WR Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR0078-PC1F007WR Cradle, PWR-BGA12V50W0WW and CBL-DC-375A1-01 DC Line Cord |
LI4278-SR1R0110SRN | LI4278-SR WHITE STANDARD CRADLE SERIAL KIT – NA: LI4278-SR20001WR SCANNER, CBA-R01-S07PBR SERIAL CABLE, CR0078-SC10001WR CRADLE, PWR-WUA5V4W0US POWER SUPPLY USA, CA, MX, JP, TW |
LI4278-TRWU0100ZER | LI4278 White Standard Cradle USB Kit – EMEA: LI4278-SR20001WR Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10001WR Cradle |
LI4278-SR7R0110SRN | LI4278-SR Black Standard Cradle Serial KIT – NA: LI4278-SR20007WR Scanner, CBA-R01-S07PBR Serial Cable, CR0078-SC10007WR Cradle, PWR-WUA5V4W0US Power Supply USA, CA, MX, JP, TW |
LI4278-PRBU2100ALR | LI4278 BLACK PRESENTATION CRADLE USB NO LINE CORD KIT – LATIN AMERICA: LI4278-SR20007WR SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR0078-PC1F007WR CRADLE, PWR-BGA12V50W0WW POWER SUPPLY AND CBL-DC-375A1-01 DC LINE CORD |
LI4278-TRWU0100ZLR | LI4278 White Standard Cradle USB Kit – Latin America: LI4278-SR20001WR Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10001WR Cradle |
LI4278-PRWU2100AWR | LI4278 WHITE PRESENTATION CRADLE USB NO LINE CORD KIT: LI4278-SR20001WR SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR0078-PC1F007WR CRADLE, PWR-BGA12V50W0WW AND CBL-DC-375A1-01 DC LINE CORD |
LI4278-TRWU0100ZWR | LI4278 White Standard Cradle USB Kit: LI4278-SR20001WR Scanner, CBA-U01-S07ZAR USB Cable, CR0078-SC10001WR Cradle |
Accessories
Part Number | Description |
---|---|
CBA-U21-S07ZBR | Cable – Shielded USB: Series A Connector, 7ft. (2.1m), Straight |
CBA-R01-S07PBR | Cable – RS232: DB9 Female Connector, 7ft. (2.1m) Straight, TxD on 2, with TTL Current Limit Protection |
23844-00-00R | AC Line Cord, 7.5ft. (2.3m) Long, Grounded, Three Wire. Associated Country: US |
11-66553-06R | Wall Mount Holder |
CBA-U01-S07ZAR | Cable – USB: Series A Connector, 7ft. (2.1m) Straight |
CBA-U09-C15ZAR | Cable – USB: Series A Connector, 15ft. (4.6m) Coiled |
BTRY-LS42RAA0E-01 | Spare Battery – DS6878/LI4278/LS4278 |
CBA-R06-C20PBR | Cable – RS232: DB9 Female Connector, 20ft. (6.0m) Coiled, TxD on 2, with TTL Current Limit Protection |
CBA-R02-C09PAR | Cable – RS232: DB9 Female Connector, 9ft. (2.8m) Coiled, TxD on 2 |
CBA-U32-C09ZAR | Cable – Shielded USB: Series A Connector, 9ft. (2.8m), Coiled |
CBA-U12-C09ZAR | Cable – USB: Series A Connector, 9ft. (2.8m) Coiled |
CR0078-SC10007WR | Standard Base Cradle, BlueTooth, Charging, Twilight Black; USB Cable Must be Unshielded Type. Not for Use in Healthcare Environments. In Healthcare Environments Use CR0078-SC1009BWR. |
CR0078-SC10001WR | Standard Base Cradle, BlueTooth, Charging, Cash Register White; USB Cable Must be Unshielded Type. Not for Use in Healthcare Environments. In Healthcare Environments Use CR0078-SC1009BWR. |
50-12500-066 | Wrist Lanyard |
CBA-R09-C09ZAR | Cable – RS232: 9ft. (2.8m) Coiled, Nixdorf Beetle – 5V Direct Power |
CBA-K01-S07PAR | Cable – Keyboard Wedge: 7ft. (2.1m) Straight, PS/2 Power Port |
CBA-U10-S15ZAR | Cable – USB: Series A Connector, 15ft. (4.6m) Straight |
CR0078-PC1F007WR | Presentation Base, Charging, BlueTooth, Twilight Black; Requires 12V Power Supply and a Country, Specific Power Cord to be Ordered Separately; USB Cable Must be Shielded Type |
CBA-R03-C12PAR | Cable – RS232: DB9 Female Connector, 12ft. (3.6m) Coiled, TxD on 2 |
PWRS-14000-256R | Power Supply: 5VDC, 850MA, EU-UK-EMEA-RU-ZA |
CBA-R08-S07ZBR | Cable – RS232: 7ft. (2.0m) Straight, Nixdorf Beetle – 5V Direct Power, with TTL Current Limit Protection |
CBA-M04-S07ZAR | Cable – IBM: 468x/9x, 7ft. (2.1m) Straight, Port 5B |
CBA-M03-S09EAR | Cable – IBM: 468x/9x, 9ft. (2.8m) Straight, Port 9B with EAS |
CBA-U29-C15ZBR | CBAU29C15ZBR CABLE – SHIELDED USB: SERIES A CONNECTOR, 15FT. (4.6M), COILED |
CBA-M10-C12ZAR | Cable – IBM: 468x/9x, 12ft. (3.7m) Coiled, Port 9B |
CBA-M01-S07ZAR | Cable – IBM: 468x/9x, 7ft. (2.1m) Straight, Port 9B |
CBA-R32-S07PAR | Cable – RS232: DB9 Female Connector, 7ft. (2.1m) Straight, TxD on 2, True Converter |
CBA-K02-C09PAR | Cable – Keyboard Wedge: 9ft. (2.8m) Coiled, PS/2 Power Port |
CBA-R41-S12ZAR | Cable – RS232: 12ft. (3.7m) Straight, Nixdorf Beetle – Direct Power |
CBA-U29-C15ZAR | Cable – Shielded USB: Series A Connector, 15ft. (4.6m), Coiled |
CBA-R10-S07ZBR | Cable – RS232: 7ft. (2.0m) Straight, Nixdorf Beetle – Direct Power, with TTL Current Limit Protection |
CBA-S04-C16ZAR | Synapse Adapter Cable: 16ft. (5m) Coiled |
CBA-D02-C09ZAR | Cable – Scanner Emulation: 9ft. (2.8m) Coiled, Undecoded |
CBA-U03-S07ZAR | Cable – USB: Power Plus Connector, 7ft. (2.1m) Straight |
CR0008-SC10007R | Cradle: Charge Only Base, Twilight Black |
CBA-U15-S15ZAR | Cable – USB: Power Plus Connector, 15ft. (4.6m) Straight |
CBA-R13-S09EAR | Cable – RS232: 9ft. (2.8m) Straight, Nixdorf Beetle – Direct Power with EAS |
CBA-R24-C20ZAR | Cable – RS232: 20ft. (6.0m) Coiled, Fujitsu T POS 500 Icl |
CBA-M02-C09ZAR | Cable – IBM: 468x/9x, 9ft. (2.8m) Coiled, Port 9B |
CBA-K08-C20PAR | Cable – Keyboard Wedge: 20ft. (6.0m) Coiled, PS/2 Power Port |
CBA-U35-S15ZBR | Cable – Shielded USB: Power Plus Connector, 15ft. (4.6m), Straight, 12V |
PWRS-14000-254R | Power Supply: 5VDC, 850MA, India Adapter Plug |
CBA-R23-S07ZBR | Cable – RS232: 7ft. (2.1m) Straight, Fujitsu T POS 500 Icl, with TTL Current Limit Protection |
CBA-R28-C09ZAR | Cable – RS232: 9ft. (2.8m) Coiled, Verifone Ruby |
CBA-R31-C09ZAR | Cable – RS232: 9ft. (2.8m) Coiled, NCR 7448 |
CBA-K05-S15PAR | Cable – Keyboard Wedge: 15ft. (4.6m) Straight, PS/2 Power Port |
CBA-U06-S09EAR | Cable – USB: Series A Connector, 9ft. (2.8m) Straight, with EAS |
CBA-U08-C15ZAR | Cable – USB: Power Plus Connector, 15ft. (4.6m) Coiled |
PWRS-14000-255R | Power Supply: 5VDC, 850MA, Brazil/Korea, Must Order Line Cord Separately |
CBA-U28-C15ZAR | Cable – Shielded USB: Power Plus Connector, 15ft. (4.6m), Coiled |
CBA-U26-S09EAR | Cable – Shielded USB: Series A Connector, 9ft. (2.8m), Straight, EAS |
CBA-U30-S15ZAR | Cable – Shielded USB: 15ft. (4.6m), Straight |
CBA-S01-S07ZAR | Synapse Adapter Cable: 7ft. (2.1m) Straight. Cable Code S01 |
CBA-S05-S09EAR | Synapse Adapter Cable with EAS 9ft. (2.8m) Straight. Cable Code S05 |
CBA-R12-C12ZAR | Cable – RS232: 12ft. (3.7m) Coiled, Nixdorf Beetle – Direct Power |
CBA-K06-C12PAR | Cable – Keyboard Wedge: 12ft. (3.7m) Coiled, PS/2 Power Port |
CBA-R37-C09ZBR | Cable – RS232: DB9F, 9ft. (2.8m) Coiled, Power Pin9, with TTL Current Limit Protection |
CBA-U23-S07ZBR | Cable – Shielded USB: Power Plus Connector, 7ft. (2.1m), Straight, 12V |
CBA-U34-C09ZAR | Cable – Shielded USB: Power Plus Connector, 9ft. (2.8m), Coiled |
CBA-U27-S09EAR | Cable – Shielded USB: Power Plus Connector, 9ft. (2.8m), Straight, EAS |
CBA-R37-C09ZAR | Cable – RS232: DB9 Female Connector, 9ft. (2.8m) Coiled, Power Pin 9 |
